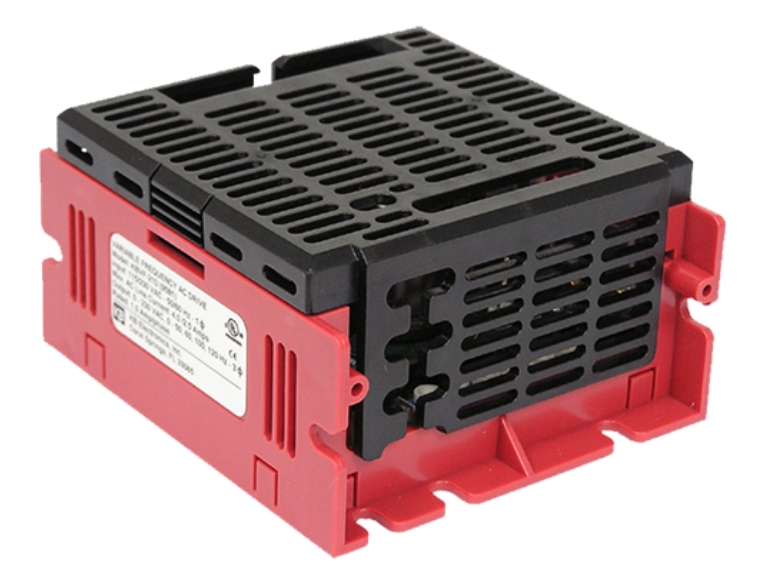

9581, (KBVF-21D) Hybrid AC Drive 1/10HP 1A 115/230V 1PH Input 230V 3PH output IP20 Chassis

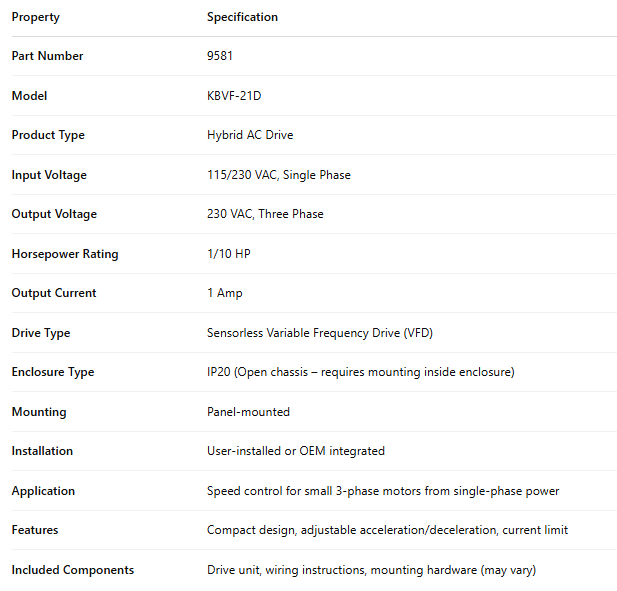

Property	Specification
Part Number	9581
Model	KBVF-21D
Product Type	Hybrid AC Drive
Input Voltage	115/230 VAC, Single Phase
Output Voltage	230 VAC, Three Phase
Horsepower Rating	1/10 HP
Output Current	1 Amp
Drive Type	Sensorless Variable Frequency Drive (VFD)
Enclosure Type	IP20 (Open chassis – requires mounting inside enclosure)
Mounting	Panel-mounted
Installation	User-installed or OEM integrated
Application	Speed control for small 3-phase motors from single-phase power
Features	Compact design, adjustable acceleration/deceleration, current limit
Included Components	Drive unit, wiring instructions, mounting hardware (may vary)



The KBVF Series of Adjustable Frequency Drives are inverter models rated for 1/10 to 5 horsepower motors.
These chassis / IP20 drives are ideal for OEM applications where digital programming and displays are not
required. Hybrid drives are a digital drive with an analog interface.
Options: Drive-Link™ Programming Kit, SIVFR Signal Isolator and Run Fault Relay (Standard on 460 VAC
models) (P/N 9597), DIVF Modbus Serial Communication Module (P/N 9568), Class A or B (CE) RFI Filter, DBVF
Dynamic Brake Module (P/N 9598), Multi-Speed Board, KBRK Remote Digital Keypad (OEM applications only),
and IOVF Input/Output Multi-Function Module.
