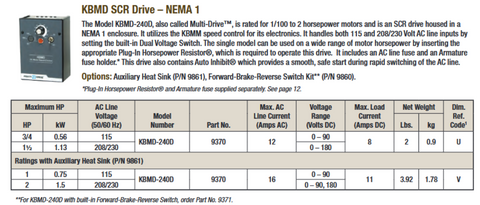

9371, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC W/Heat Sink & FWD/BRK/REV Switch NEMA 1

E-Motor Nations

$509.77

9371, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC W/Heat Sink & FWD/BRK/REV Switch NEMA 1

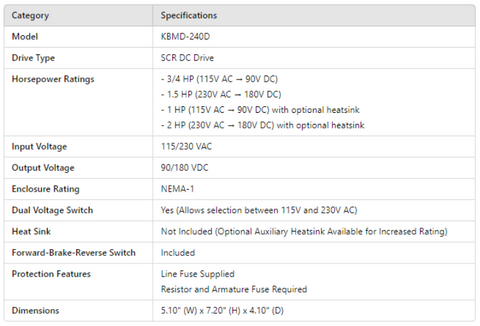

Category	Specifications
Model	KBMD-240D
Drive Type	SCR DC Drive
Horsepower Ratings	- 3/4 HP (115V AC → 90V DC) - 1.5 HP (230V AC → 180V DC) - 1 HP (115V AC → 90V DC) with optional heatsink - 2 HP (230V AC → 180V DC) with optional heatsink
Input Voltage	115/230 VAC
Output Voltage	90/180 VDC
Enclosure Rating	NEMA-1
Dual Voltage Switch	Yes (Allows selection between 115V and 230V AC)
Heat Sink	Not Included (Optional Auxiliary Heatsink Available for Increased Rating)
Forward-Brake-Reverse Switch	Included
Protection Features	Line Fuse Supplied Resistor and Armature Fuse Required

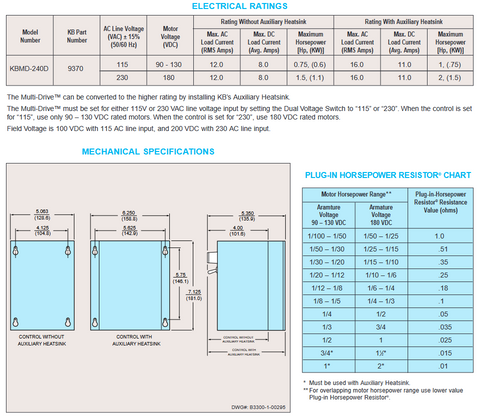

Dimensions	5.10" (W) x 7.20" (H) x 4.10" (D)
