E-Motor Nations  |  SKU: EMN-019652

530BC-38MA, 1/8-2Hp 115/230VAC 90/180VDC Forward/Reverse Heavy Duty Dynamic Brake Resistor Chassis

$1,889.72
shipping

Estimate shipping

Description

530BC-38MA,  1/8-2Hp 115/230VAC 90/180VDC Forward/Reverse Heavy Duty Dynamic Brake Resistor Chassis

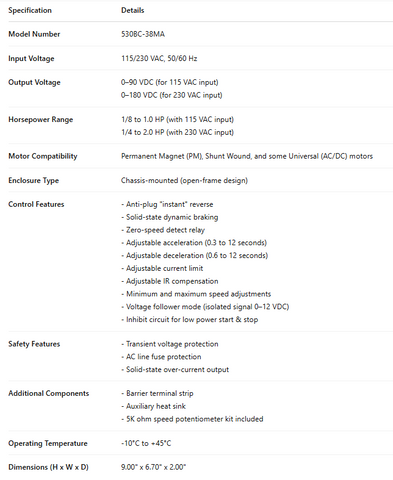

Specification Details
Model Number 530BC-38MA
Input Voltage 115/230 VAC, 50/60 Hz
Output Voltage 0–90 VDC (for 115 VAC input)
0–180 VDC (for 230 VAC input)
Horsepower Range 1/8 to 1.0 HP (with 115 VAC input)
1/4 to 2.0 HP (with 230 VAC input)
Motor Compatibility Permanent Magnet (PM), Shunt Wound, and some Universal (AC/DC) motors
Enclosure Type Chassis-mounted (open-frame design)
Control Features - Anti-plug "instant" reverse
- Solid-state dynamic braking
- Zero-speed detect relay
- Adjustable acceleration (0.3 to 12 seconds)
- Adjustable deceleration (0.6 to 12 seconds)
- Adjustable current limit
- Adjustable IR compensation
- Minimum and maximum speed adjustments
- Voltage follower mode (isolated signal 0–12 VDC)
- Inhibit circuit for low power start & stop
Safety Features - Transient voltage protection
- AC line fuse protection
- Solid-state over-current output
Additional Components - Barrier terminal strip
- Auxiliary heat sink
- 5K ohm speed potentiometer kit included
Operating Temperature -10°C to +45°C
Dimensions (H x W x D) 9.00" x 6.70" x 2.00"
