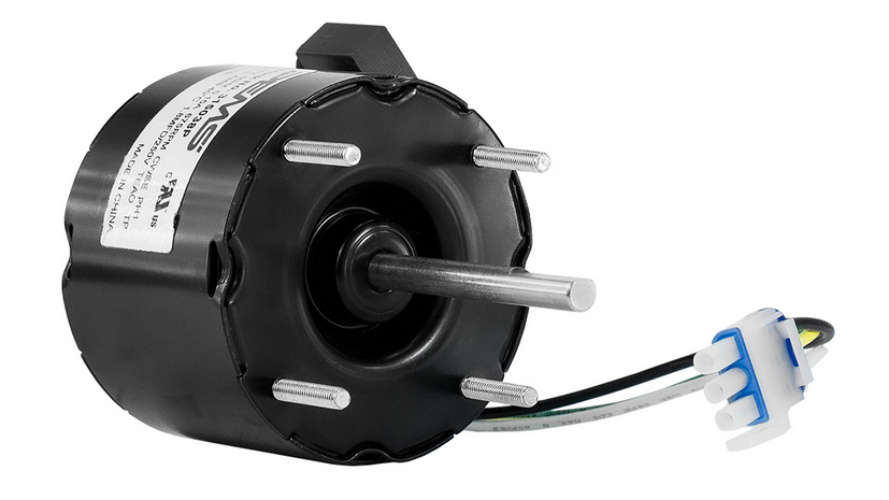

315038P, OEM Replacement, 1/80Hp, 675 RPM, 115V, TEAO, CWSE

315038P, PEMS OEM Replacement - Greenheck, 1/80Hp, 675 RPM, 115V, TEAO, CWSE

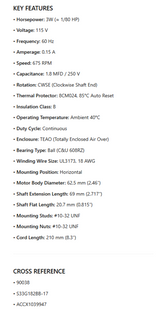

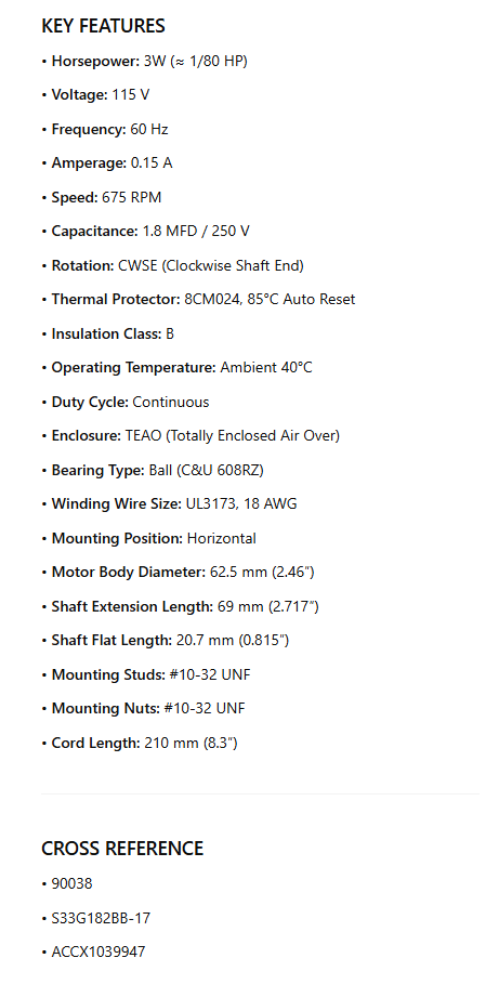

KEY FEATURES

• Horsepower: 3W (≈ 1/80 HP)

• Voltage: 115 V

• Frequency: 60 Hz

• Amperage: 0.15 A

• Speed: 675 RPM

• Capacitance: 1.8 MFD / 250 V

• Rotation: CWSE (Clockwise Shaft End)

• Thermal Protector: 8CM024, 85°C Auto Reset

• Insulation Class: B

• Operating Temperature: Ambient 40°C

• Duty Cycle: Continuous

• Enclosure: TEAO (Totally Enclosed Air Over)

• Bearing Type: Ball (C&U 608RZ)

• Winding Wire Size: UL3173, 18 AWG

• Mounting Position: Horizontal

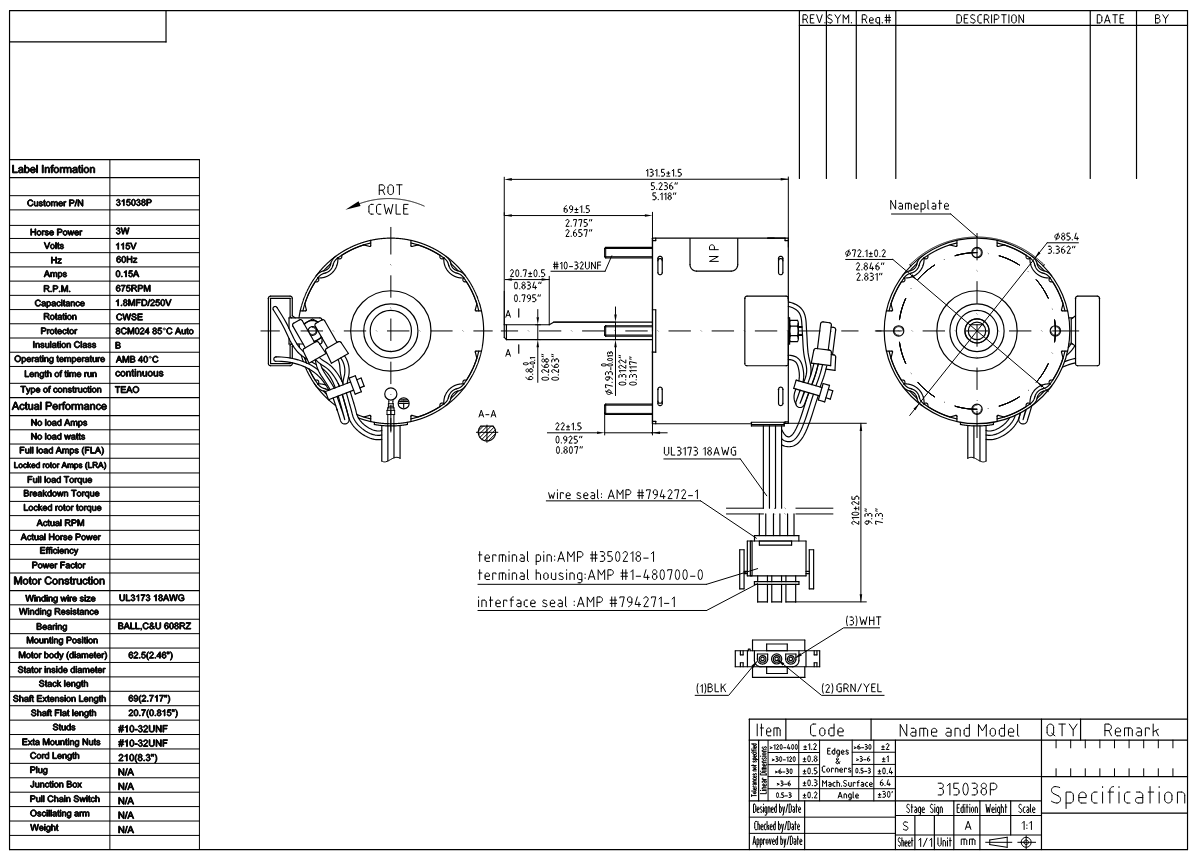

• Motor Body Diameter: 62.5 mm (2.46″)

• Shaft Extension Length: 69 mm (2.717″)

• Shaft Flat Length: 20.7 mm (0.815″)

• Mounting Studs: #10-32 UNF

• Mounting Nuts: #10-32 UNF

• Cord Length: 210 mm (8.3″)

CROSS REFERENCE

• 90038

• S33G182BB-17

• ACCX1039947
