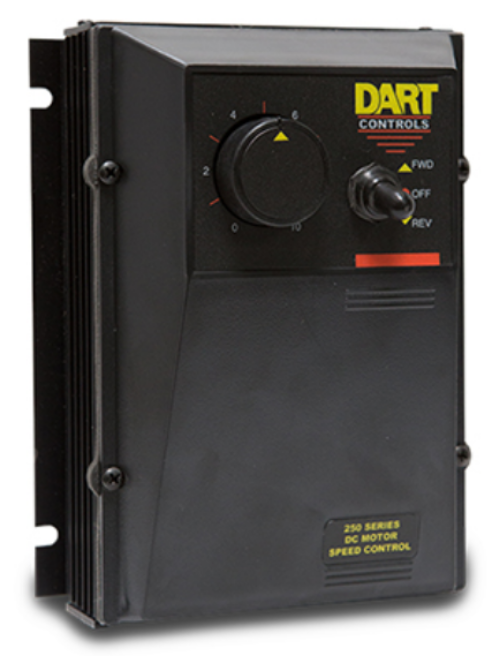

253G-200E, 253 SERIES 1/8Hp-1Hp 120VAC/90VDC ~ 1/4Hp-2Hp 240VAC/180VDC 10ADC 50:1 Speed Range 0-12VDC Isolated Follower Non-Reversing Nema 4/12

E-Motor Nations

$932.84

253G-200E, 253 SERIES 1/8Hp-1Hp 120VAC/90VDC ~ 1/4Hp-2Hp 240VAC/180VDC 10ADC 50:1 Speed Range 0-12VDC Isolated Follower Non-Reversing Nema 4/12

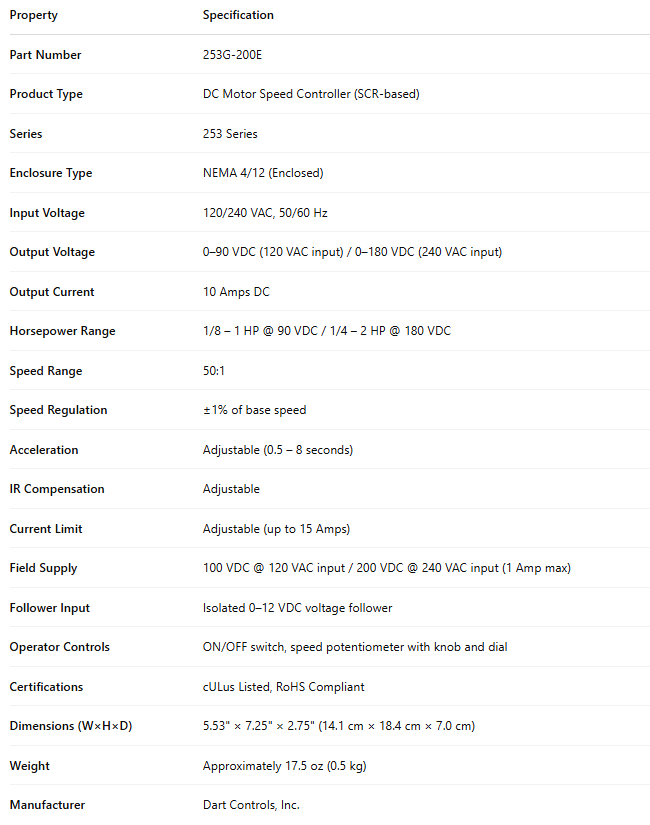

Property	Specification
Part Number	253G-200E
Product Type	DC Motor Speed Controller (SCR-based)
Series	253 Series
Enclosure Type	NEMA 4/12 (Enclosed)
Input Voltage	120/240 VAC, 50/60 Hz
Output Voltage	0–90 VDC (120 VAC input) / 0–180 VDC (240 VAC input)
Output Current	10 Amps DC
Horsepower Range	1/8 – 1 HP @ 90 VDC / 1/4 – 2 HP @ 180 VDC
Speed Range	50:1
Speed Regulation	±1% of base speed
Acceleration	Adjustable (0.5 – 8 seconds)
IR Compensation	Adjustable
Current Limit	Adjustable (up to 15 Amps)
Field Supply	100 VDC @ 120 VAC input / 200 VDC @ 240 VAC input (1 Amp max)
Follower Input	Isolated 0–12 VDC voltage follower
Operator Controls	ON/OFF switch, speed potentiometer with knob and dial
Certifications	cULus Listed, RoHS Compliant
Dimensions (W×H×D)	5.53" × 7.25" × 2.75" (14.1 cm × 18.4 cm × 7.0 cm)
Weight	Approximately 17.5 oz (0.5 kg)
Manufacturer	Dart Controls, Inc.

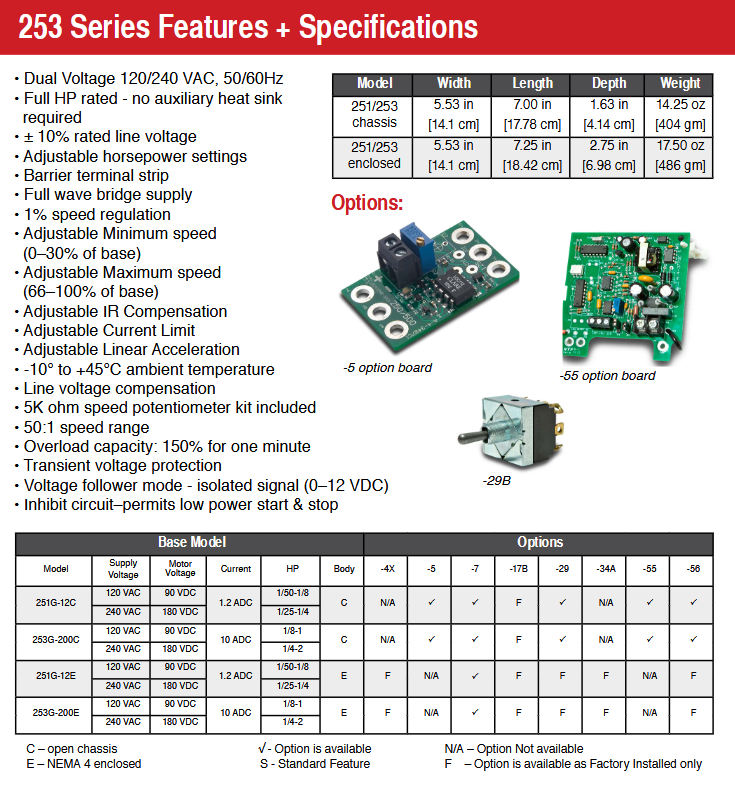

The 253 Series offers superb flexibility, reliability,and value. A general purpose, economical driverated to 2HP, the 253 Series is our top-selling enclosed drive. Where most other drives requireoptions to include soft start adjustment, AC linefuse protection and additional heat sink to handle higher HP motors, these are all included in every253G model as standard features. Reliability is enhanced from the use of a rugged packaged power bridge. Chassis or NEMA 4/12 enclosure styles are available. Many options further extend the 253’s capabilities.

Typical applications include conveyors and material handling, process pumps and
machine tools.
