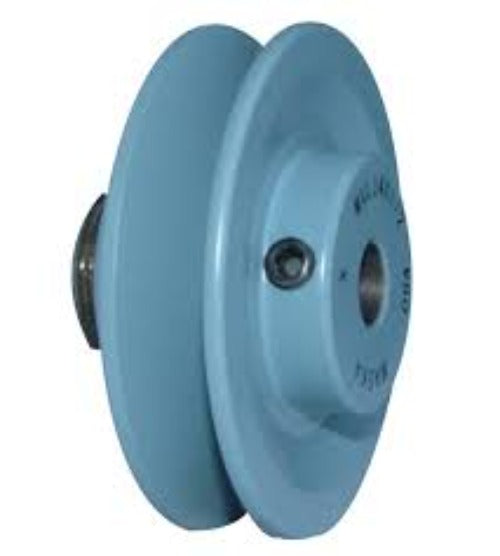

1VL34,Masterdrive,Adjustable Pulleys,O.D 3.15'',MVL34,BROWNING,MULTI BORE I.D,

E-Motor Nations

$32.87

1VL34, MASTERDRIVE , MVL34, MASKA, 1VL34 BROWNING,

SPECIFICATIONS

BUSHING TYPE	None
BORE RANGE [MAX]	N/A
B (5L) PITCH DIA. [MAX]	3.2 in
NO. OF GROOVES	1
BUSHING SERIES	N/A
A (4L) PITCH DIA. [MAX]	2.9 in
TYPE	VL
FACE WIDTH [MIN]	5/8 in
BELT MATCH	1
FINISHED BORE	1/2 in
BORE RANGE [MIN]	N/A
PITCH DIAMETER [MIN]	1.7 in
K (IN)	0.578 in
BELT SIZE	A B 3L 4L 5L
SIDE MOVEABLE	One

OVERALL LENGTH	1 11/16 in
G [MIN]	1/2 in
A (4L) PITCH DIA. [MIN]	1.9 in
OUTSIDE DIA.	3.15 in
PITCH DIAMETER [MAX]	3.2 in
G [MAX]	7/8 in
KEYWAY SIZE	No Keyway
SERIES	1VL34
3L PITCH [MAX]	2 1/2 in
B (5L) PITCH DIA. [MIN]	2.4 in
FACE WIDTH [MAX]	1 in
3L PITCH [MIN]	1.7 in
WEIGHT	1.15 LB
PACKAGE QUANTITY	1.0 Piece
EAN OR UPC	662289275847
