1843, Auger Duty Motors, 1/2Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Fr. 56Y, C063GJG4537025B

1843, Auger Duty Motors, 1/2Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Fr. 56Y, C063GJG4537025B

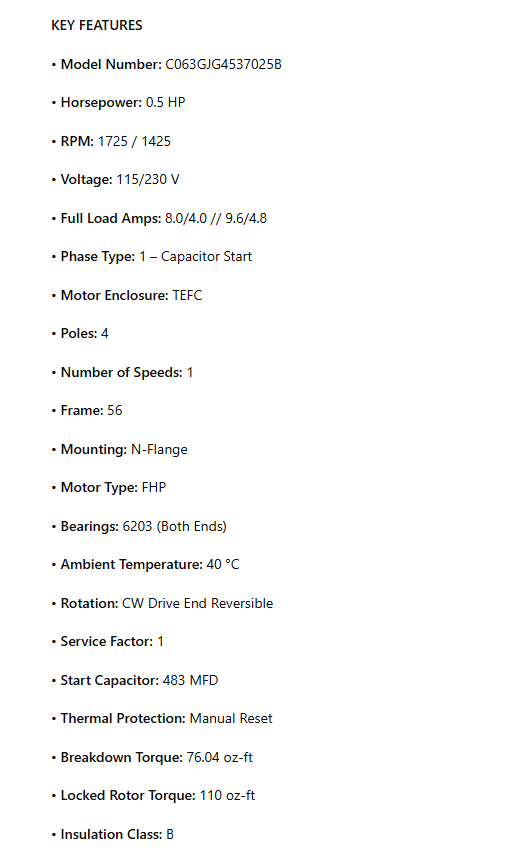

KEY FEATURES

• Model Number: C063GJG4537025B

• Horsepower: 0.5 HP

• RPM: 1725 / 1425

• Voltage: 115/230 V

• Full Load Amps: 8.0/4.0 // 9.6/4.8

• Phase Type: 1 – Capacitor Start

• Motor Enclosure: TEFC

• Poles: 4

• Number of Speeds: 1

• Frame: 56

• Mounting: N-Flange

• Motor Type: FHP

• Bearings: 6203 (Both Ends)

• Ambient Temperature: 40 °C

• Rotation: CW Drive End Reversible

• Service Factor: 1

• Start Capacitor: 483 MFD

• Thermal Protection: Manual Reset

• Breakdown Torque: 76.04 oz-ft

• Locked Rotor Torque: 110 oz-ft

• Insulation Class: B
