153D-25C, DC Motor Speed Control, 120/240VAC Dual Supply Voltage, 50/60Hz, 0-90/180VDC, 2 Amp, 1/50-1/8hp (90V), 1/25-1/4hp (180V), (No Acceleration/Deceleration Adjustments), Open Chassis, with Terminal Strip, 150 Series

153D-25C, DC Motor Speed Control, 120/240VAC Dual Supply Voltage, 50/60Hz, 0-90/180VDC, 2 Amp, 1/50-1/8hp (90V), 1/25-1/4hp (180V), (No Acceleration/Deceleration Adjustments), Open Chassis, with Terminal Strip, 150 Series

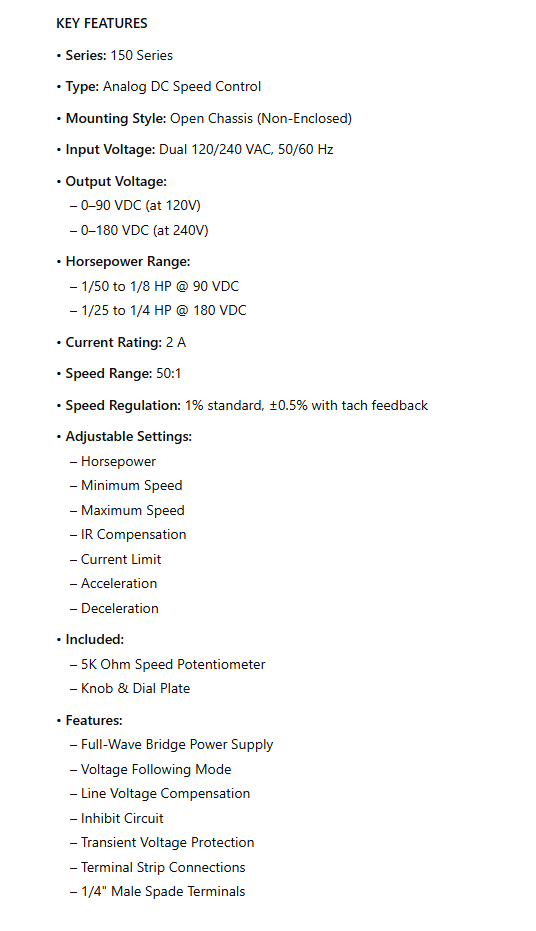

KEY FEATURES

• Series: 150 Series

• Type: Analog DC Speed Control

• Mounting Style: Open Chassis (Non-Enclosed)

• Input Voltage: Dual 120/240 VAC, 50/60 Hz

• Output Voltage:
 – 0–90 VDC (at 120V)
 – 0–180 VDC (at 240V)

• Horsepower Range:
 – 1/50 to 1/8 HP @ 90 VDC
 – 1/25 to 1/4 HP @ 180 VDC

• Current Rating: 2 A

• Speed Range: 50:1

• Speed Regulation: 1% standard, ±0.5% with tach feedback

• Adjustable Settings:
 – Horsepower
 – Minimum Speed
 – Maximum Speed
 – IR Compensation
 – Current Limit
 – Acceleration
 – Deceleration

• Included:
 – 5K Ohm Speed Potentiometer
 – Knob & Dial Plate

• Features:
 – Full-Wave Bridge Power Supply
 – Voltage Following Mode
 – Line Voltage Compensation
 – Inhibit Circuit
 – Transient Voltage Protection
 – Terminal Strip Connections
 – 1/4" Male Spade Terminals

The 150 Series from Dart is the latest SCR drive offering, designed specifically with the OEM in mind.  This drive is complete with all the features the OEM designer may require, with the flexibility to add and subtract features as needed. Other suppliers have effectively abandoned any development of SCR drives – Dart believes there will always be applications for DC motors and drives.  For that reason, Dart has developed specifically for the 150 Series a number of industry unique and innovative features and options
