153D-200C-56H3, 150 Series Chassis Dc Drive 1/50-1/2Hp 120vac~90vdc / 1/25-1Hp 240vac~180vdc 6a Isolated 0-5 To 0-240vdc / 4.20ma Signal Follower W/Auto Manual

153D-200C-56H3, 150 Series Chassis Dc Drive 1/50-1/2Hp 120vac~90vdc / 1/25-1Hp 240vac~180vdc 6a Isolated 0-5 To 0-240vdc / 4.20ma Signal Follower W/Auto Manual

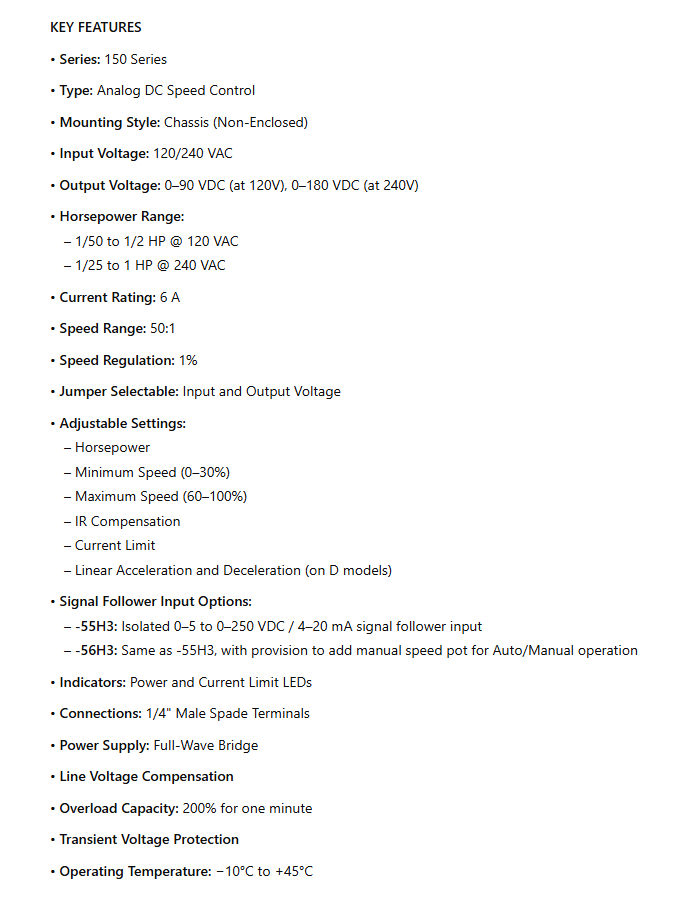

KEY FEATURES

• Series: 150 Series

• Type: Analog DC Speed Control

• Mounting Style: Chassis (Non-Enclosed)

• Input Voltage: 120/240 VAC

• Output Voltage: 0–90 VDC (at 120V), 0–180 VDC (at 240V)

• Horsepower Range:
 – 1/50 to 1/2 HP @ 120 VAC
 – 1/25 to 1 HP @ 240 VAC

• Current Rating: 6 A

• Speed Range: 50:1

• Speed Regulation: 1%

• Jumper Selectable: Input and Output Voltage

• Adjustable Settings:
 – Horsepower
 – Minimum Speed (0–30%)
 – Maximum Speed (60–100%)
 – IR Compensation
 – Current Limit
 – Linear Acceleration and Deceleration (on D models)

• Signal Follower Input Options:
 – -55H3: Isolated 0–5 to 0–250 VDC / 4–20 mA signal follower input
 – -56H3: Same as -55H3, with provision to add manual speed pot for Auto/Manual operation

• Indicators: Power and Current Limit LEDs

• Connections: 1/4" Male Spade Terminals

• Power Supply: Full-Wave Bridge

• Line Voltage Compensation

• Overload Capacity: 200% for one minute

• Transient Voltage Protection

• Operating Temperature: −10°C to +45°C

The 150 Series from Dart is the latest SCR drive offering, designed specifically with the OEM in mind.  This drive is complete with all the features the OEM designer may require, with the flexibility to add and subtract features as needed. Other suppliers have effectively abandoned any development of SCR drives – Dart believes there will always be applications for DC motors and drives.  For that reason, Dart has developed specifically for the 150 Series a number of industry unique and innovative features and options
