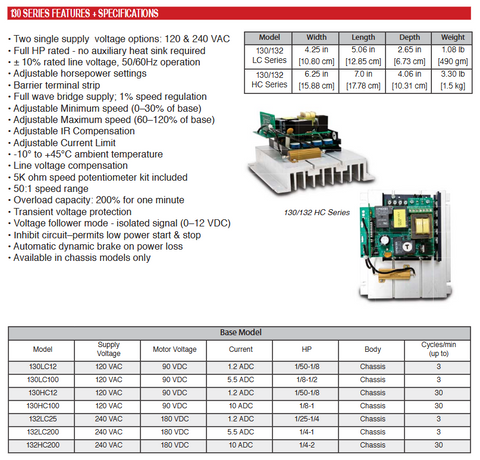

130HC12, Serie 130 1/15-1/8Hp 1.2A 120V Chassis

130HC12, Serie 130 1/15-1/8Hp 1.2A 120V Chassis

The 130 Series from Dart is an economical, safe and effective drive for applications which require rapid stopping (brake) or reversal of the motor being controlled. The 130 Series uses relays and sophisticated circuitry to reverse the motor safely - avoiding damage to both the motor and the drive. The motor should be stopped in its original direction before armature voltage polarity is reversed, to safely achieve direction
reversal. The 130 Series accomplishes this automatically. The sequence is to disconnect the motor from the drive and replace it with a dynamic brake resistor - this dissipates all energy in the motor causing the motor to stop fast (brake). Once the 130 circuit sees this has occurred, the relays change state and allow the motor to start in the opposite direction. This happens in a fraction of a second. As many as 30 motor reversals a minute can be executed even with the motor under full load.

In many applications the 130 Series will replace expensive
regenerative drives that do not require holding torque for
the application.
