1 8
E-Motor Nations  |  SKU: EMN-019494

06F363W352, 5Hp, 1750RPM, 208-230/460V, 3PH, 60HZ, 184TZ, 0640M, TEFC, F1

$1,764.82
shipping

Estimate shipping

Description

06F363W352, 5Hp, 1750RPM, 208-230/460V, 3PH, 60HZ, 184TZ, 0640M, TEFC, F1

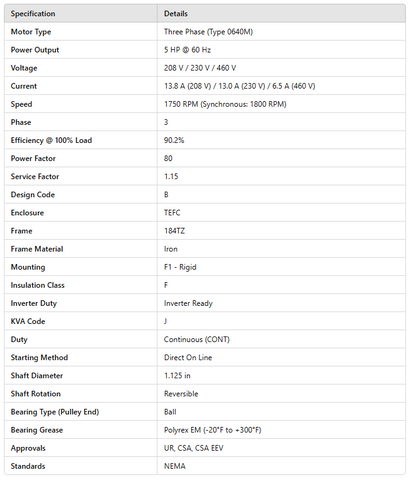

Specification Details
Motor Type Three Phase (Type 0640M)
Power Output 5 HP @ 60 Hz
Voltage 208 V / 230 V / 460 V
Current 13.8 A (208 V) / 13.0 A (230 V) / 6.5 A (460 V)
Speed 1750 RPM (Synchronous: 1800 RPM)
Phase 3
Efficiency @ 100% Load 90.2%
Power Factor 80
Service Factor 1.15
Design Code B
Enclosure TEFC
Frame 184TZ
Frame Material Iron
Mounting F1 - Rigid
Insulation Class F
Inverter Duty Inverter Ready
KVA Code J
Duty Continuous (CONT)
Starting Method Direct On Line
Shaft Diameter 1.125 in
Shaft Rotation Reversible
Bearing Type (Pulley End) Ball
Bearing Grease Polyrex EM (-20°F to +300°F)
Approvals UR, CSA, CSA EEV
Standards NEMA
  • Built Up – Delivery time of 10 to 12 weeks
  • MADE IN USA
  • HS CODE : 8501524000
