FASCO | SKU:
EMN-017344

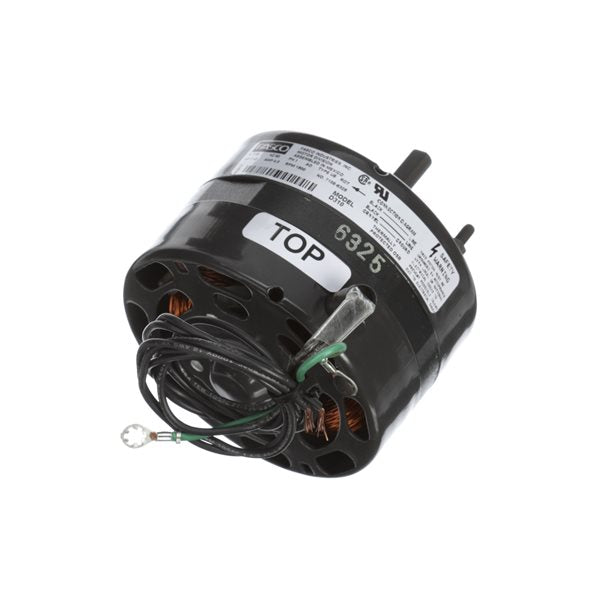

D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO,
Regular price
$449.52
Unit price
/
Unavailable
D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO,
Regular price
$449.52
Unit price
/
Unavailable
Description
Description
D310,Fasco
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/12 Hp |
| Output KW: | 0.06 kW | Voltage: | 115 V |
| Speed: | 1500 rpm | Service Factor: | 1 |
| Frame: | 4.4 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 4.0 A |
| Duty: | Air Over | Insulation Class: | A |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 5.16 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 1.9 in |
General Specifications
| UPC: | 815585029465 | Weight: | 4.40 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 10.00 IN | Country of Origin: | Mexico |
