FASCO  |  SKU: EMN-016556

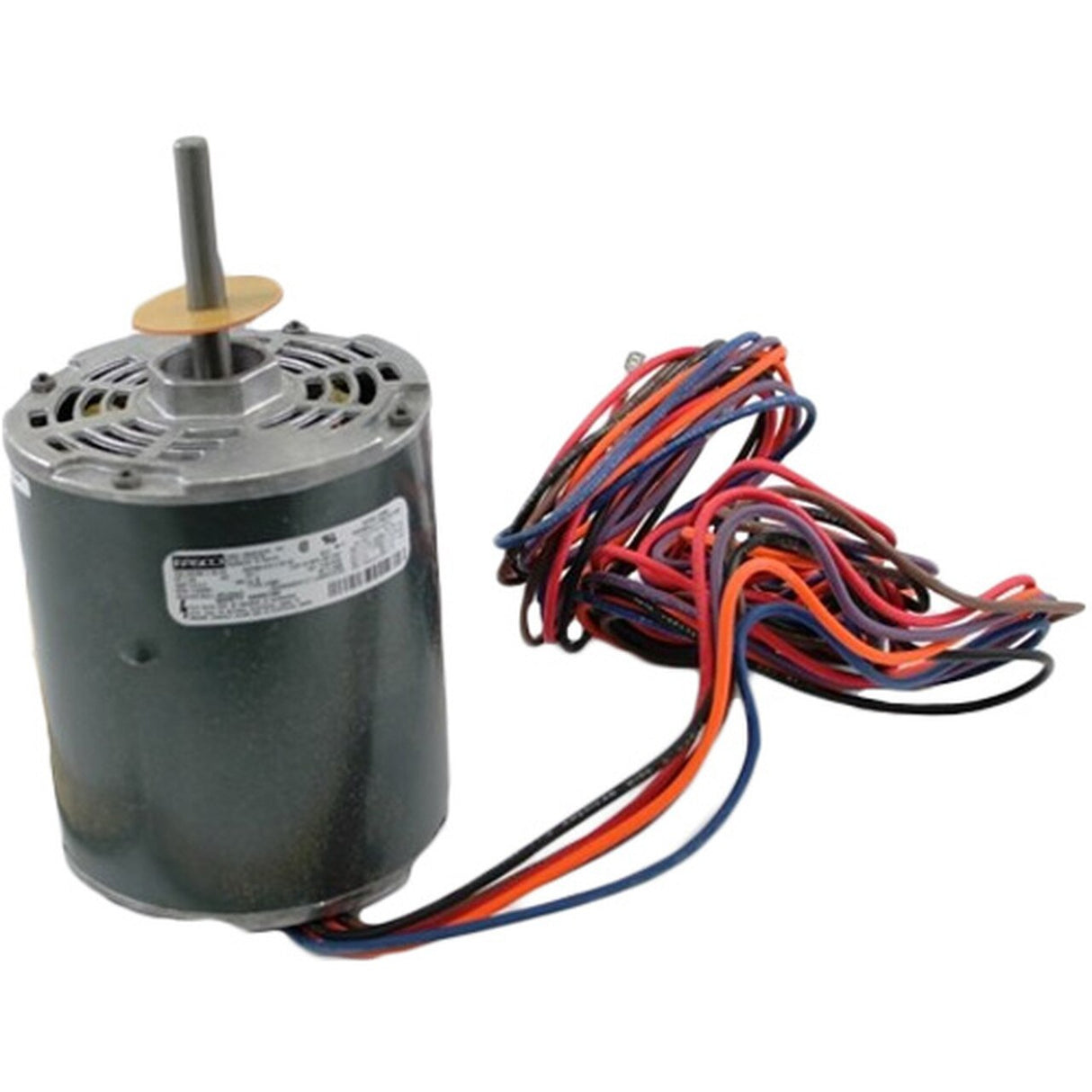

D2850,Fasco,1 -3/4Hp,1125/950 Rpm,208-230/460V,1 PH,Fr:48,MOT3771,MOT5717

$795.84
shipping

Estimate shipping

Description

D2850, 5KCP39UFWD74S, Replace Trane and GE models: X70670706010, X70671180017, MOT3771, MOT5717, 5KCP39SFL19KS, 5KCP39SFL153DS S81-341 is a suitable replacement for the following Trane and Fasco models: X70671653-01, X70671656-01, X70671654, X70671652-01, MOT9192, MOT9188, 7126-4088, 7126-4089, 7126-4090, 7126-4299

Nameplate Specifications

Phase: 1 Output HP: 1-3/4 Hp
Output KW: 0.75 kW Voltage: 208-230/460 V
Speed: 1125/950 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 65 °C
Frequency: 60 Hz Current: 3.95/2.10 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 6
Rotation: Counterclockwise Mounting: Lug
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 9.88 in
Frame Length: 5.82 in Shaft Diameter: 0.500 in
Shaft Extension: 2.92 in

General Specifications

UPC: 818508022390 Weight: 24.20 LB
Packaged Length: 14.12 IN Packaged Width: 6.38 IN
Packaged Height: 6.50 IN Country of Origin: India
