FASCO | SKU:
EMN-017422

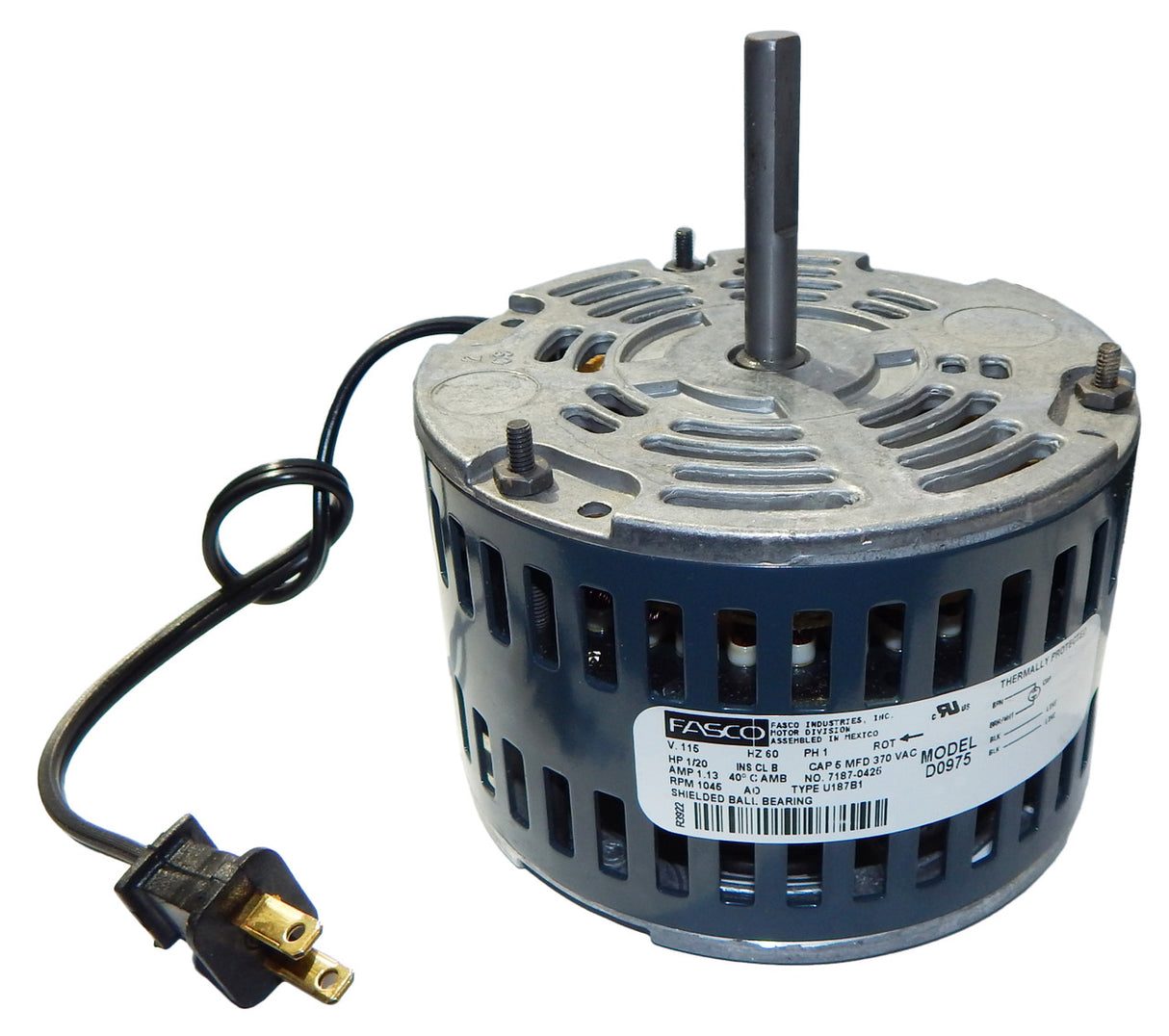

D0975, Fasco, 1/20Hp,1050 Rpm,115V,fr:42,7151-2139,D1036-0, 7151-3659,
Regular price
$322.02
Unit price
/
Unavailable
D0975, Fasco, 1/20Hp,1050 Rpm,115V,fr:42,7151-2139,D1036-0, 7151-3659, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
D0975, Fasco, 1/20Hp,1050 Rpm,115V,fr:42,7151-2139,D1036-0, 7151-3659,
Regular price
$322.02
Unit price
/
Unavailable
Description
Description
D0975, Fasco, replace fasco D1037, 7151-2139, Omnidrive D1036-0, fasco 7151-3659, Fasco,71870425,7187-0425
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/20 Hp |
| Output KW: | 0.04 kW | Voltage: | 115 V |
| Speed: | 1045 rpm | Service Factor: | 1 |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 1.13 A |
| Duty: | Continuous Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Frame Length: | 3.30 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 2.25 in |
KEY FEATURES
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Shaft with Flat
- 16" Leads with Molded Plug
- Extended Studs Shaft End
