FASCO  |  SKU: EMN-017835

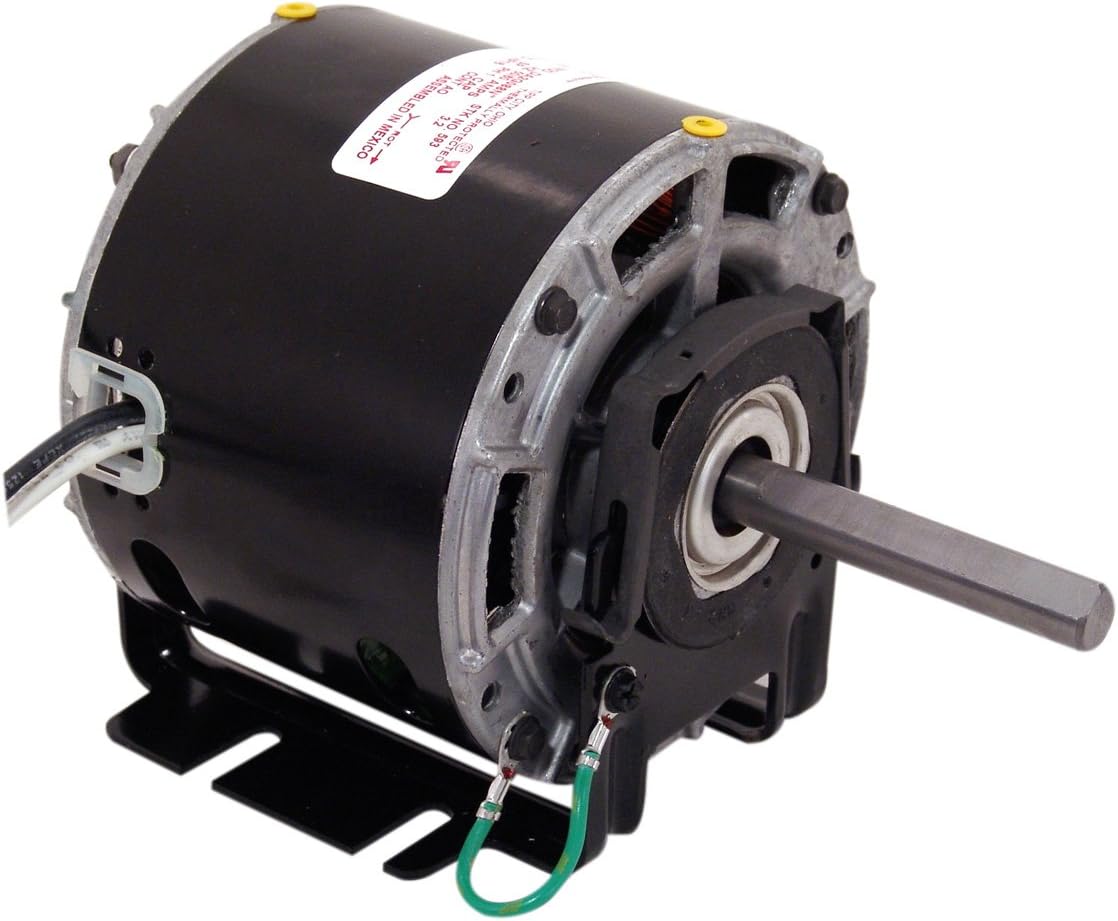

D0593, Fasco, 1/6Hp, 1550 Rpm, 208-230V, 593 Century, Fr:42, DA2G088N,

$379.00
shipping

Estimate shipping

Description

D0593, Fasco, Replace 593 Century,

Nameplate Specifications

Phase: 1 Output HP: 1/6 Hp
Output KW: 0.13 kW Voltage: 208-230 V
Speed: 1550 rpm Service Factor: 1
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.32 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 4.00 in
Shaft Diameter: 0.500 in Shaft Extension: 3.3 in

General Specifications

UPC: 818508028804 Weight: 10.00 LB
Packaged Length: 10.00 IN Packaged Width: 5.13 IN
Packaged Height: 6.50 IN Country of Origin: Mexico



  • Furnace Blower - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Resilient Base
