FASCO  |  SKU: EMN-017420

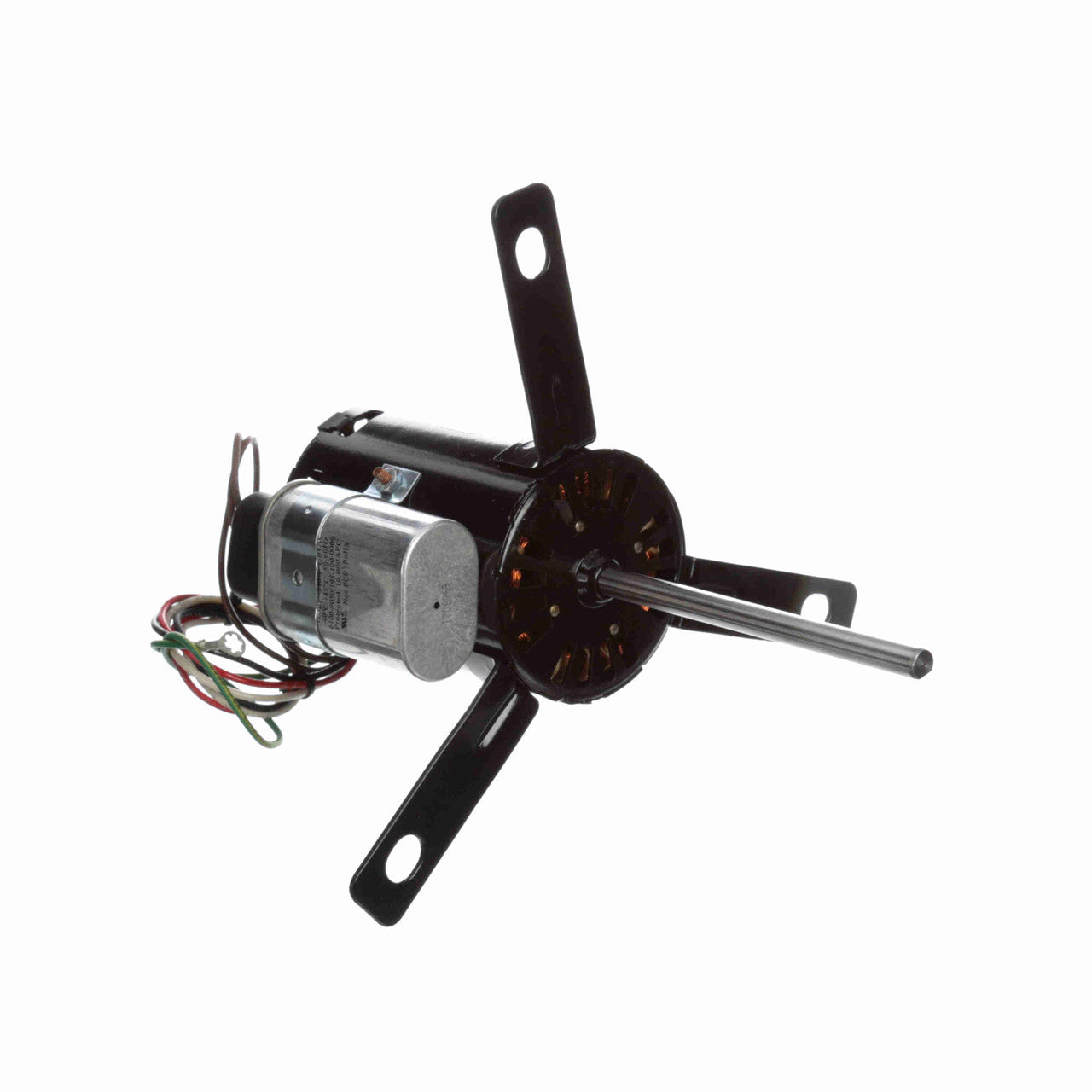

D0346, Fasco, 56346-0, 1/4 Hp,1550 RPM, 115 Volts, 7190-2904,JE2K007N,

$389.95
shipping

Estimate shipping

Description
D0346 Fasco, 56346, 56346-0 PENN Barry, VENTILATOR,
Suggested replacement reference for: Penn Vent 56346-0, 7190-2904, 71902904, JE2K007N, JE2K007. Zephyr Z10S/H. Fits Dayton 2D071, Replaced by D0346, fASCO,

Nameplate Specifications

Phase: 1 Output HP: 1/4 Hp
Output KW: 0.19 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.90 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 10.12 in
Frame Length: 4.68 in Shaft Diameter: 0.375 in
Shaft Extension: 5.44 in

General Specifications

UPC: 815585027294 Weight: 8.05 LB
Packaged Length: 12.00 IN Packaged Width: 10.38 IN
Packaged Height: 12.50 IN Country of Origin: Mexico
