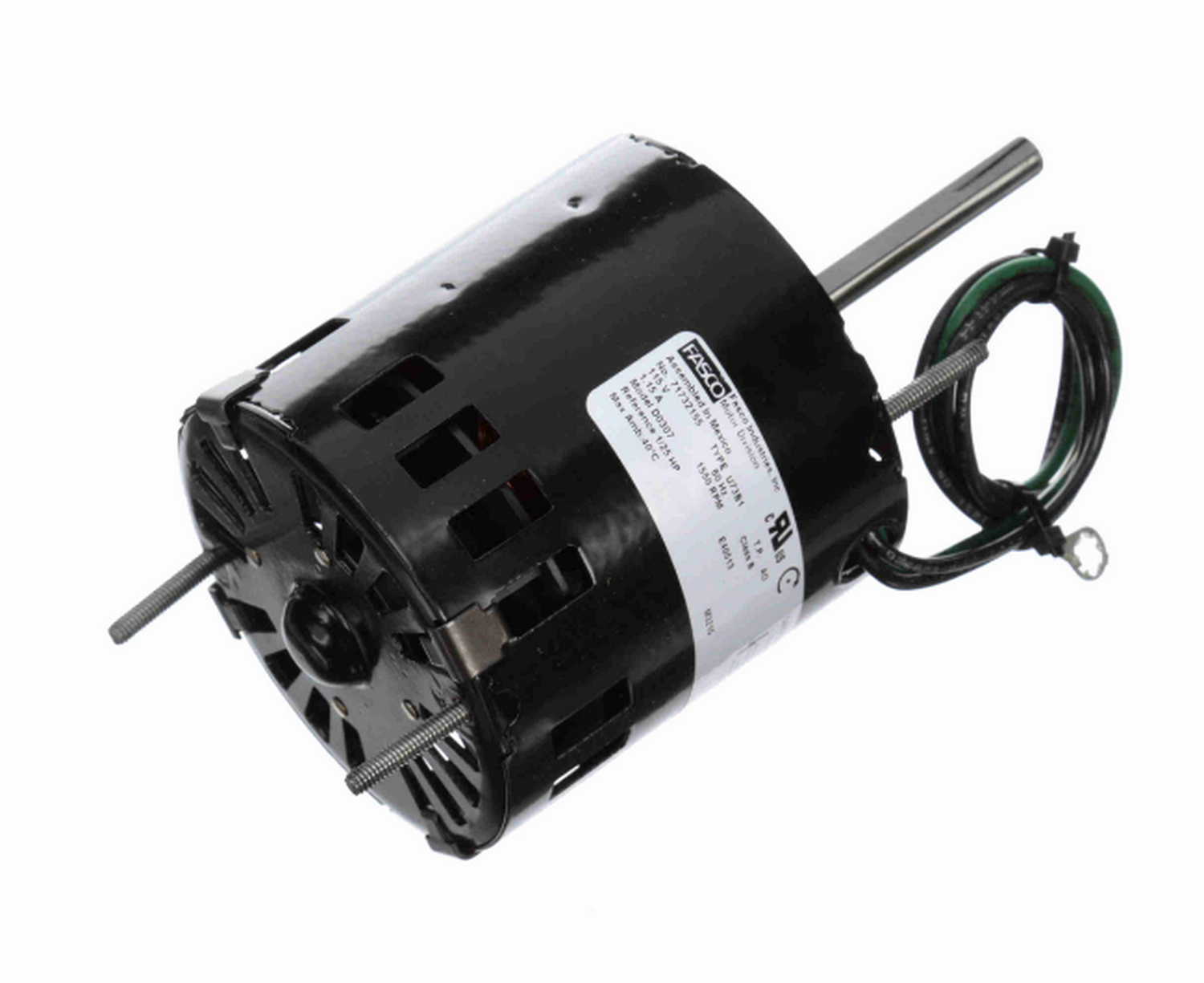

D0307, Ventilation Motor, 1/25Hp, 1550RPM, 115V, 1Ph, 60Hz, 1 Speed, 3.3" Diameter, OAO, 171732155,

D0307, Ventilation Motor, 1/25Hp, 1550RPM, 115V, 1Ph, 60Hz, 1 Speed, 3.3" Diameter, OAO, 171732155,

replaces R3-R307, SS307

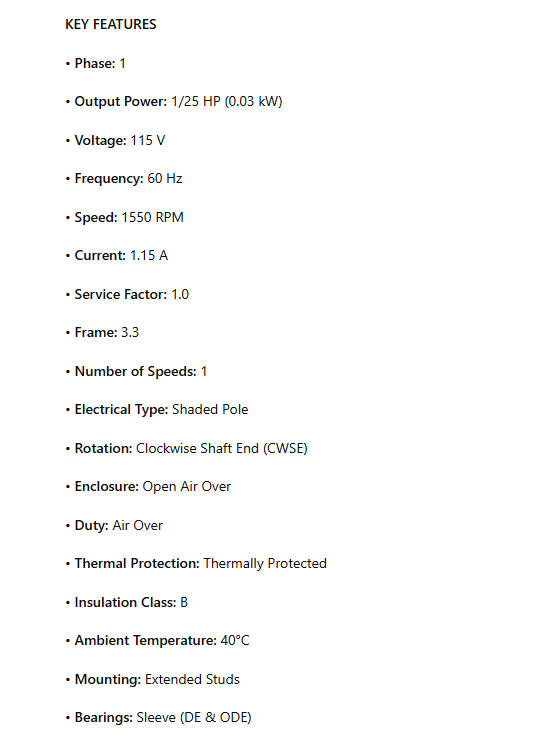

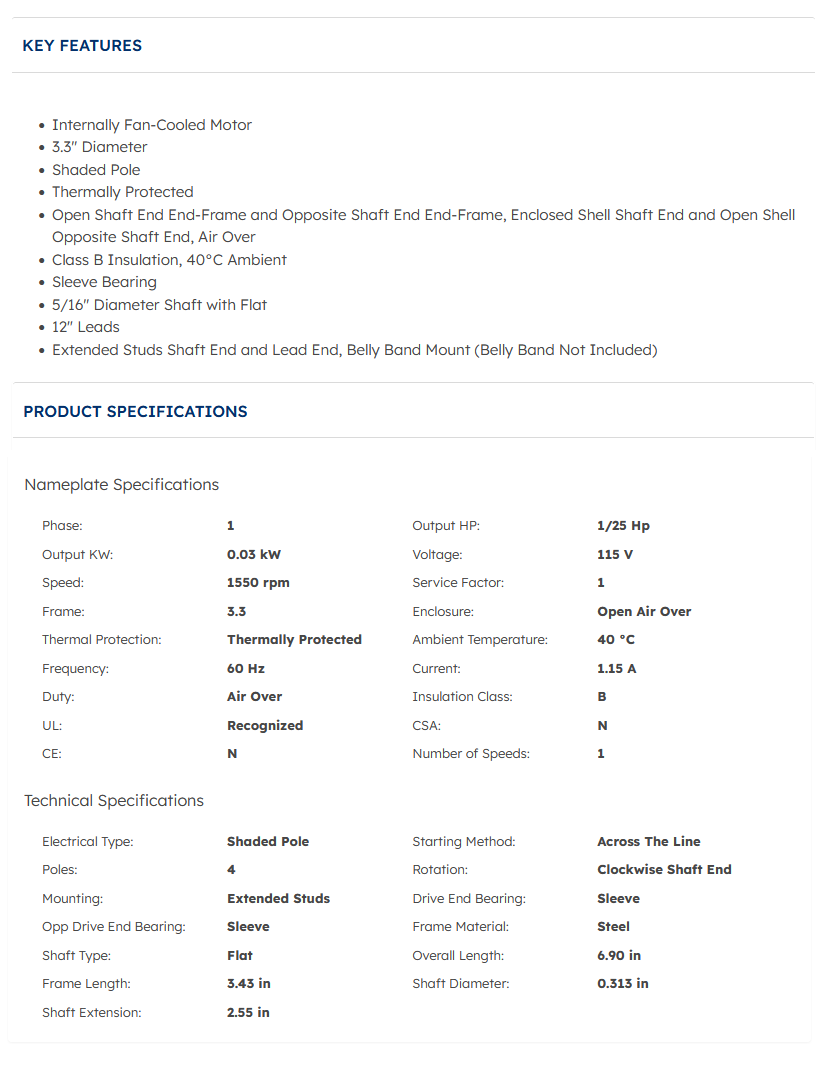

KEY FEATURES

• Phase: 1

• Output Power: 1/25 HP (0.03 kW)

• Voltage: 115 V

• Frequency: 60 Hz

• Speed: 1550 RPM

• Current: 1.15 A

• Service Factor: 1.0

• Frame: 3.3

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Rotation: Clockwise Shaft End (CWSE)

• Enclosure: Open Air Over

• Duty: Air Over

• Thermal Protection: Thermally Protected

• Insulation Class: B

• Ambient Temperature: 40°C

• Mounting: Extended Studs

• Bearings: Sleeve (DE & ODE)
