B45227, 1/20Hp, 1570 RPM, 115 V, 1 Ph, 50/60 Hz, Open Air‑Over, Frame 3.3, 7063-4343
B45227, 1/20Hp, 1570 RPM, 115 V, 1 Ph, 50/60 Hz, Open Air‑Over, Frame 3.3, 7063-4343 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimate shipping
Please correct the following errors:
Description
Description

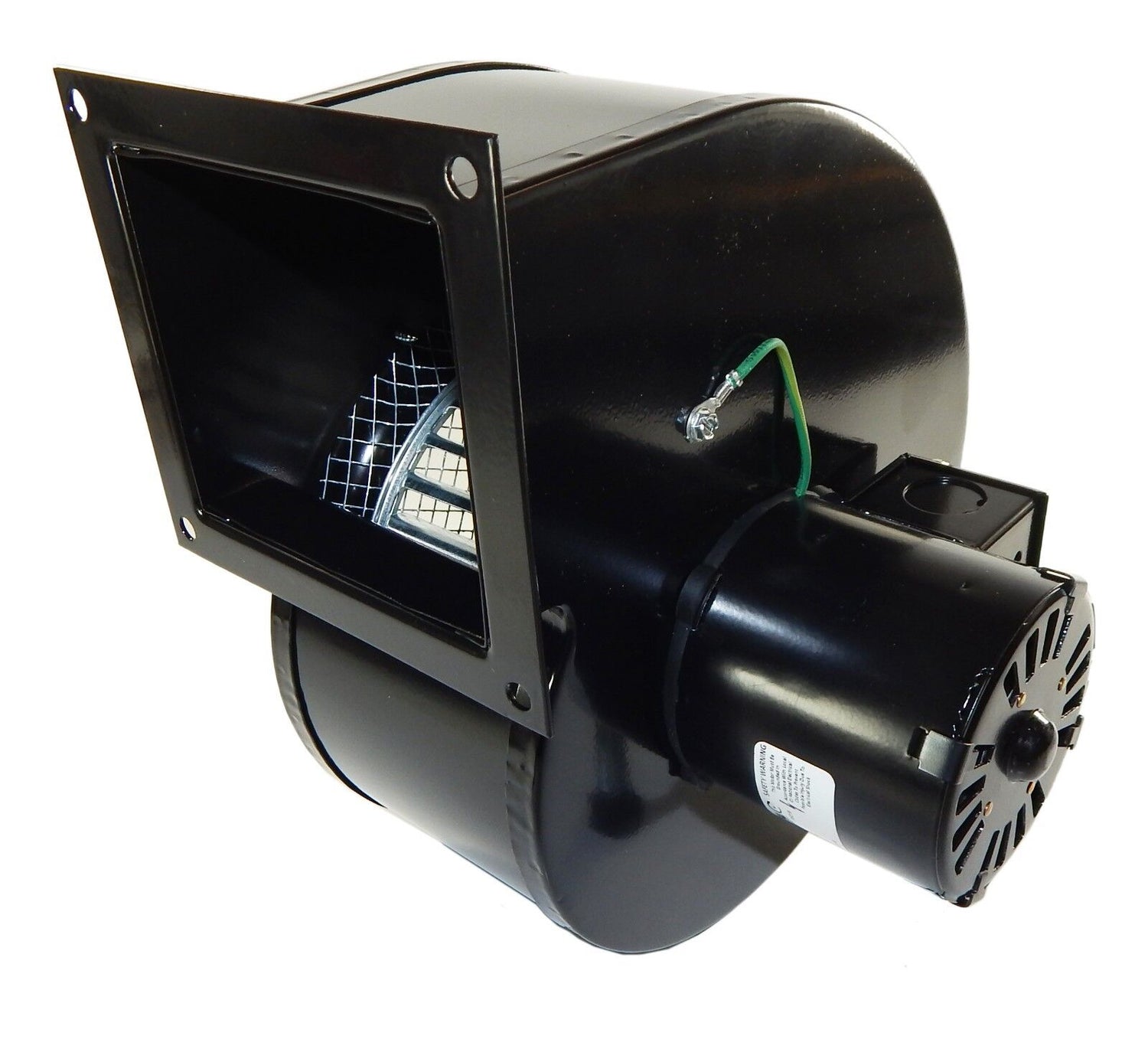

This compact shaded‑pole centrifugal blower is designed for single‑phase, low‑power applications, offering a rectangular outlet with flange mounting and sleeve bearing support in an open air‑over enclosure.
KEY FEATURES
• Model: B45227
• Product Type: Centrifugal Blower
• Horsepower: 1/20 Hp
• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz
• Speed: 1570 RPM @ 60 Hz / 1570 RPM @ 50 Hz
• Frame: 3.3
• Enclosure: Open Air‑Over (Open)
• Phase: 1
• Current: 1.86 A @ 60 Hz / 1.86 A @ 50 Hz
• Insulation Class: B
• Thermal Protection: Thermally Protected
• Bearings: Sleeve Bearing
• Rotation: Clockwise Shaft End
• Number of Speeds: 1
• Certifications: UL, CSA
• Ambient Rating: 40 °C
• Special Feature: Rectangular outlet with flange
This blower’s compact, flange‑mounted design and shaded‑pole motor make it ideal for low‑power airflow applications in constrained spaces.
CROSS REFERENCE
• UB265 / R7-RB265
