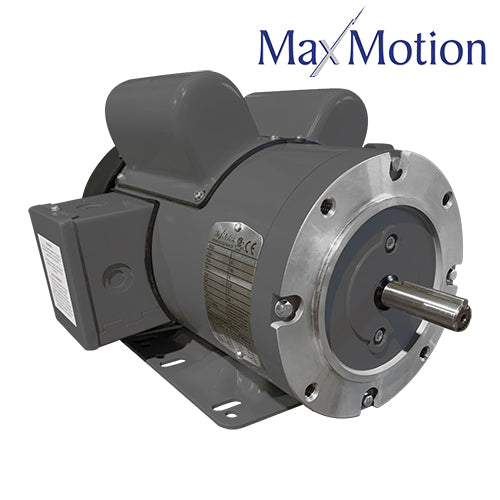

MTR-104FDCH, MaxMotion, 1 Hp, 1800 RPM, 115/208-230V, FR: 56C, TEFC

MAXMOTION

  • $417.71


MTR-104FDCH, REPLACE MTR-104FDC, F134 MARATHON, F104, FD164C, OMNIDRIVE

  • 1 HP
  • 1800 RPM,
  • 115/208-230V
  • FRAME: 56C
  • ENCLOSURE TEFC
  • BALL BEARING

Farm Duty Single Phase & General Purpose Application

  • Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant
  • Service Factor - 1.15
  • Electrical Supply - 115/208-230VAC, 60Hz •
  • Mounting - Universal mounting by feet or C flange.
  • • Windings - VPI with additional dip and bake, with numbered and color coded wire leads.
  • • Insulation - Class F insulation with B temperature rise.
  • • Protection - Manually resettable thermal overload.
  • • Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° trough 175°C. Earthing
  •  Terminals - Grounding screw in conduit box
  • Earthing Terminals - Grounding screw in conduit box
  • Enclosure Protection - IP55
  •  Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
  •  Nameplate - Stainless Steel with etched details.
  • Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
  • Features: •
  • Design - L, suitable for ambient temperature of 40°C, altitude 1000M
  • • Warranty - 1 year
