OMNIDRIVE | SKU:
EMN-015580

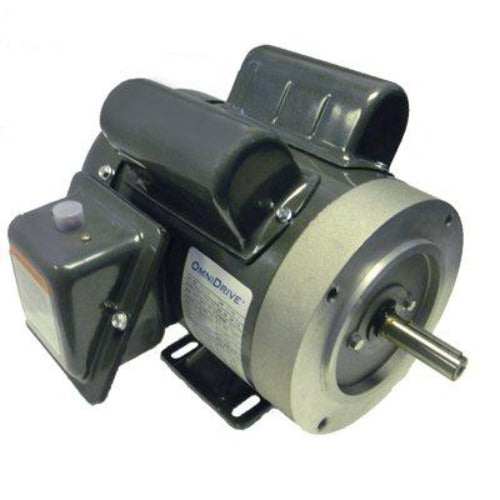

FD163C, 3/4 HP, 1800 RPM, 115/208-230V,FRAME 56C, TEFC,OMNIDRIVE
Regular price
$388.07
Unit price
/
Unavailable
FD163C, 3/4 HP, 1800 RPM, 115/208-230V,FRAME 56C, TEFC,OMNIDRIVE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![FD163C, 3/4 HP, 1800 RPM, 115/208-230V,FRAME 56C, TEFC,OMNIDRIVE - SINGLE PHASE MOTORS - OMNIDRIVE - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/FD163C.jpg?v=1756480347&width=112)
FD163C, 3/4 HP, 1800 RPM, 115/208-230V,FRAME 56C, TEFC,OMNIDRIVE
Regular price
$388.07
Unit price
/
Unavailable
Description
Description
FD163C, OMNIDRIVE MOTOR
REPLACE F103 MARATHON, MTR-344FDC MAXMOTION, FD34CM2P US MOTORS, C312 CENTURY/ A.O SMITH, C520 CENTURY A.O SMITH, 110087.00 LEESON
| HP | 3/4 |
| VOLTAGE | 115-208/230 |
| AMPS | 8.10/4.20 |
| RPM | 1725 |
| FREQUENCY | 60 HZ |
| LENGTH | 12.00” |
| ENCLOSURE | TEFC |
| SHAFT DIAMETER | 5/8'' |
| TYPE | FARM DUTY CAPCACITOR START |
| SPEED | 1 |
| DIAMETER | 6,5'' |
| FRAME | 56C |
| BEARING SLEEVE | BEARING |
| ROTATION | REVERSIBLE |
| PROTECTOR | THERMALLY PROTECTED |
| PHASE | 1 |
| AMBIENT TEMP | 40 C |
|
S.F |
1.15 |
| FEATURE(S) | Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base, FD163C |
