Xactone  |  SKU: EMN-018820

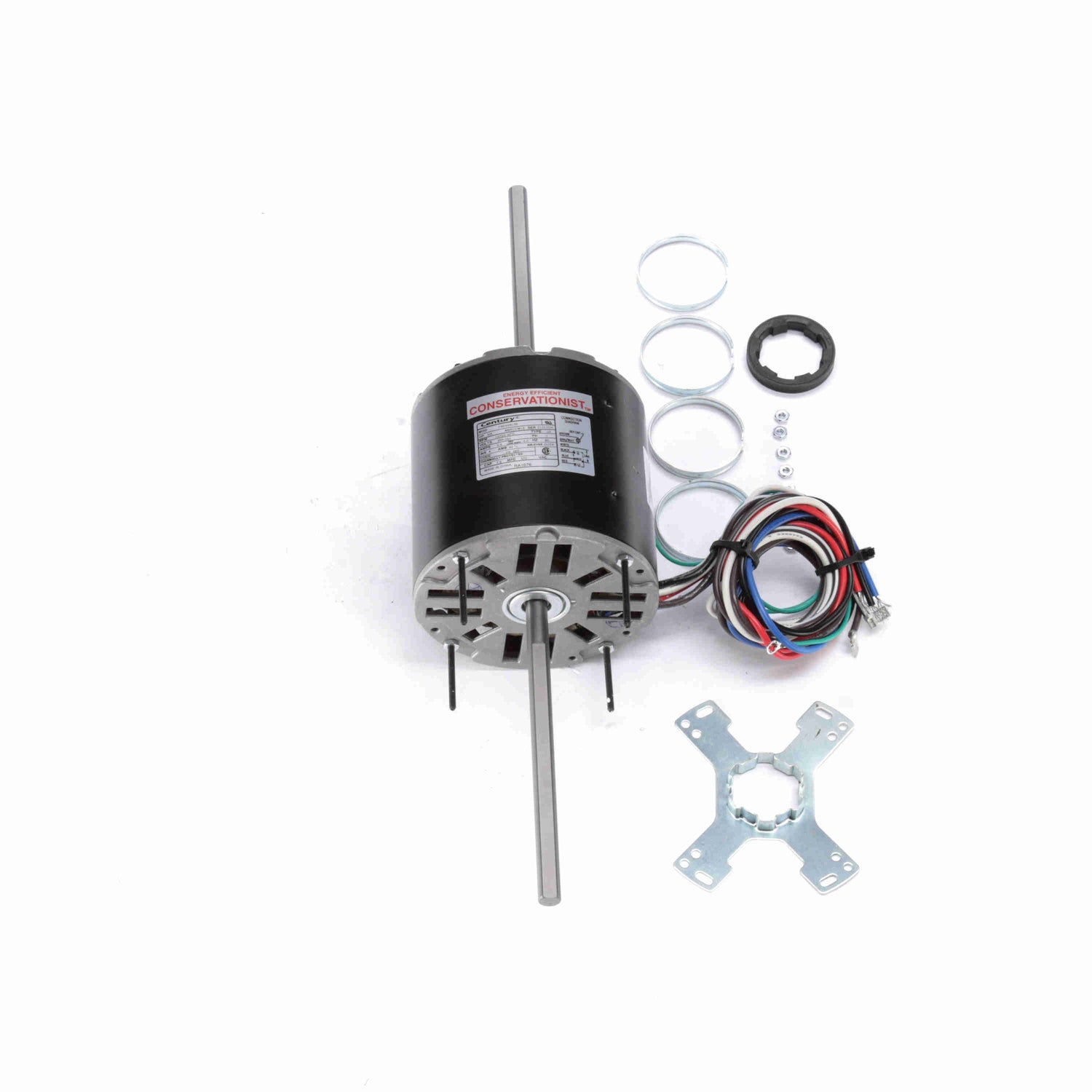

XRAL1026A, Xactone,Fan Coil & Air Conditioner Motor, 1/4 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED

$252.45
shipping

Estimate shipping

Description

XRAL1026A, Xactone, replaces Genteq 3671, Century RAL1026A, US Motor NAL1026, Rotom R52114

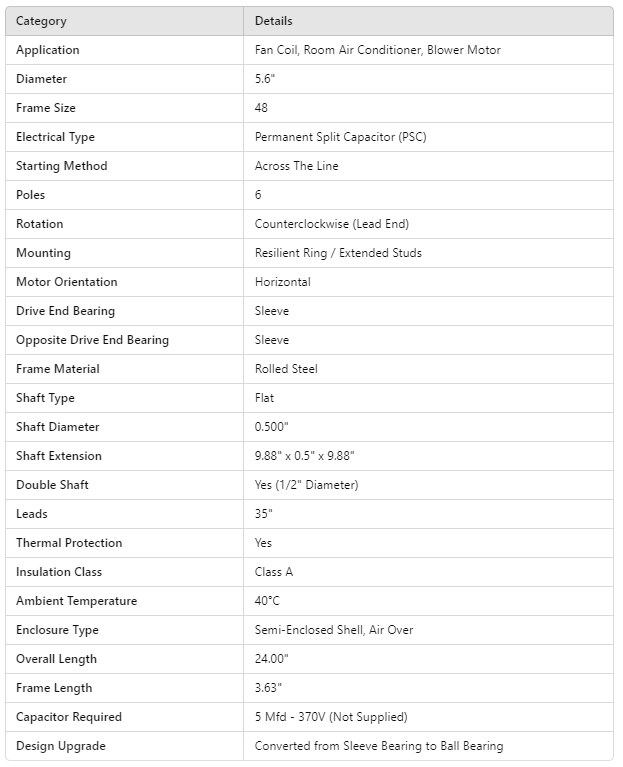

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Diameter 5.6"
Frame Size 48
Electrical Type Permanent Split Capacitor (PSC)
Starting Method Across The Line
Poles 6
Rotation Counterclockwise (Lead End)
Mounting Resilient Ring / Extended Studs
Motor Orientation Horizontal
Drive End Bearing Sleeve
Opposite Drive End Bearing Sleeve
Frame Material Rolled Steel
Shaft Type Flat
Shaft Diameter 0.500"
Shaft Extension 9.88" x 0.5" x 9.88"
Double Shaft Yes (1/2" Diameter)
Leads 35"
Thermal Protection Yes
Insulation Class Class A
Ambient Temperature 40°C
Enclosure Type Semi-Enclosed Shell, Air Over
Overall Length 24.00"
Frame Length 3.63"
Capacitor Required 5 Mfd - 370V (Not Supplied)
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
