CENTURY  |  SKU: EMN-018879

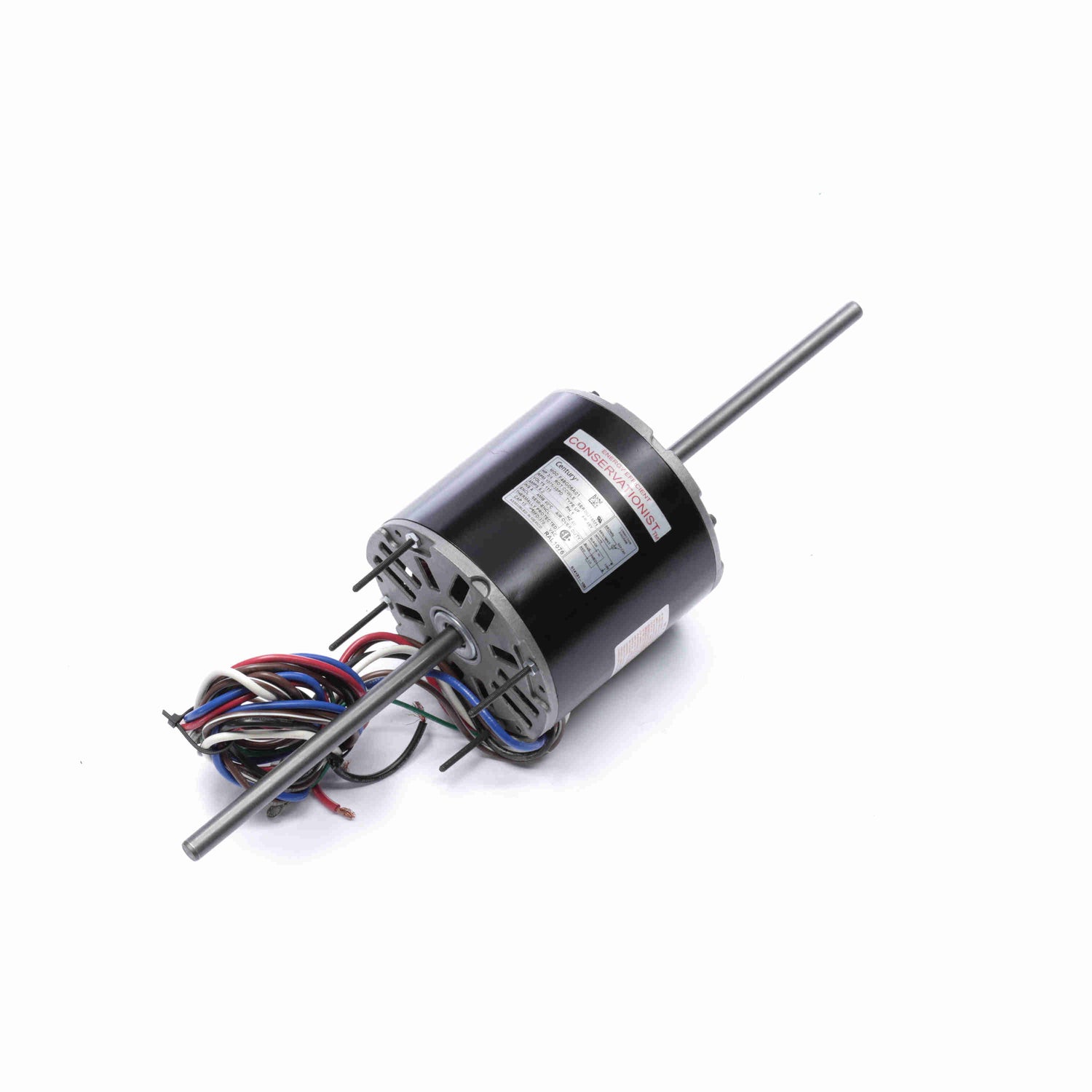

RAL1076, Century Fan Coil & Air Conditioner Motor, 3/4 Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCL

$366.93
shipping

Estimate shipping

Description

RAL1076, Century, replaces Xactone  XRAL1076, US Motor NAL1076,

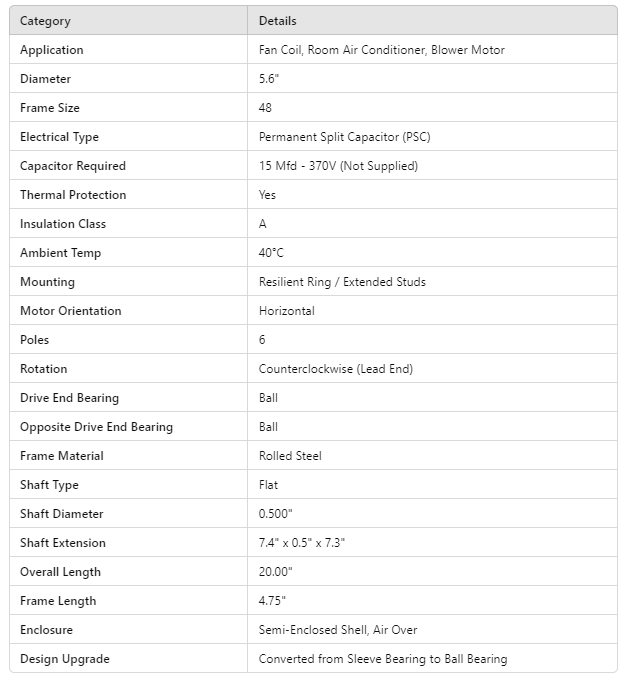

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Diameter 5.6"
Frame Size 48
Electrical Type Permanent Split Capacitor (PSC)
Capacitor Required 15 Mfd - 370V (Not Supplied)
Thermal Protection Yes
Insulation Class A
Ambient Temp 40°C
Mounting Resilient Ring / Extended Studs
Motor Orientation Horizontal
Poles 6
Rotation Counterclockwise (Lead End)
Drive End Bearing Ball
Opposite Drive End Bearing Ball
Frame Material Rolled Steel
Shaft Type Flat
Shaft Diameter 0.500"
Shaft Extension 7.4" x 0.5" x 7.3"
Overall Length 20.00"
Frame Length 4.75"
Enclosure Semi-Enclosed Shell, Air Over
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
