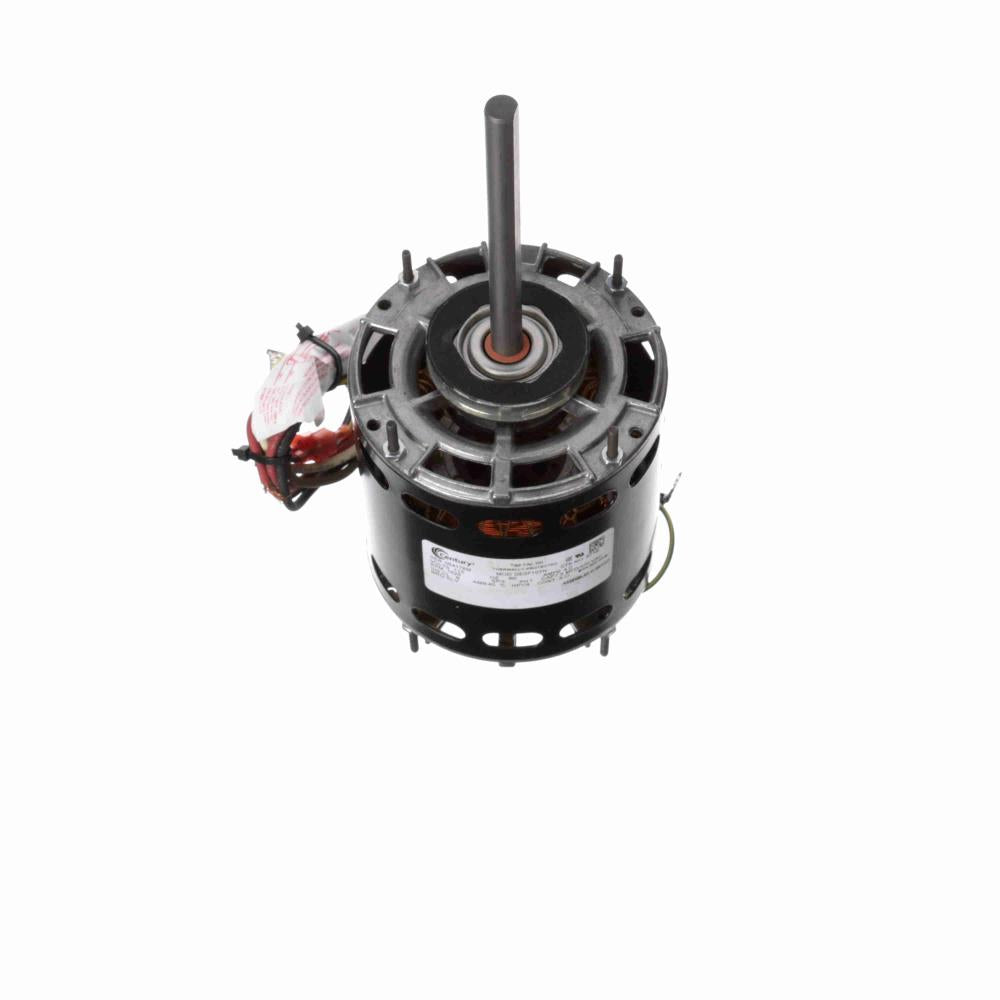

U9716, Fan and Blower Motor, 1/4Hp, 1625 RPM , 115V, 1Ph, OAO, Frame 42Y

U9716, Fan and Blower Motor, 1/4Hp, 1625 RPM , 115V, 1Ph, OAO, Frame 42Y

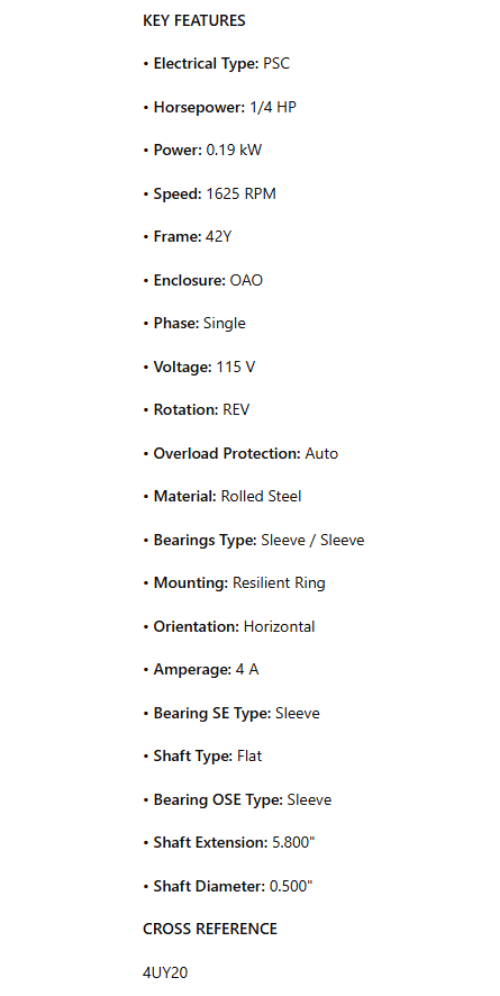

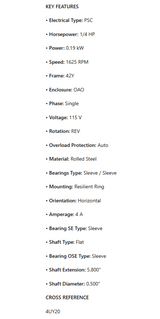

KEY FEATURES

• Electrical Type: PSC

• Horsepower: 1/4 HP

• Power: 0.19 kW

• Speed: 1625 RPM

• Frame: 42Y

• Enclosure: OAO

• Phase: Single

• Voltage: 115 V

• Rotation: REV

• Overload Protection: Auto

• Material: Rolled Steel

• Bearings Type: Sleeve / Sleeve

• Mounting: Resilient Ring

• Orientation: Horizontal

• Amperage: 4 A

• Bearing SE Type: Sleeve

• Shaft Type: Flat

• Bearing OSE Type: Sleeve

• Shaft Extension: 5.800"

• Shaft Diameter: 0.500"

CROSS REFERENCE

4UY20
