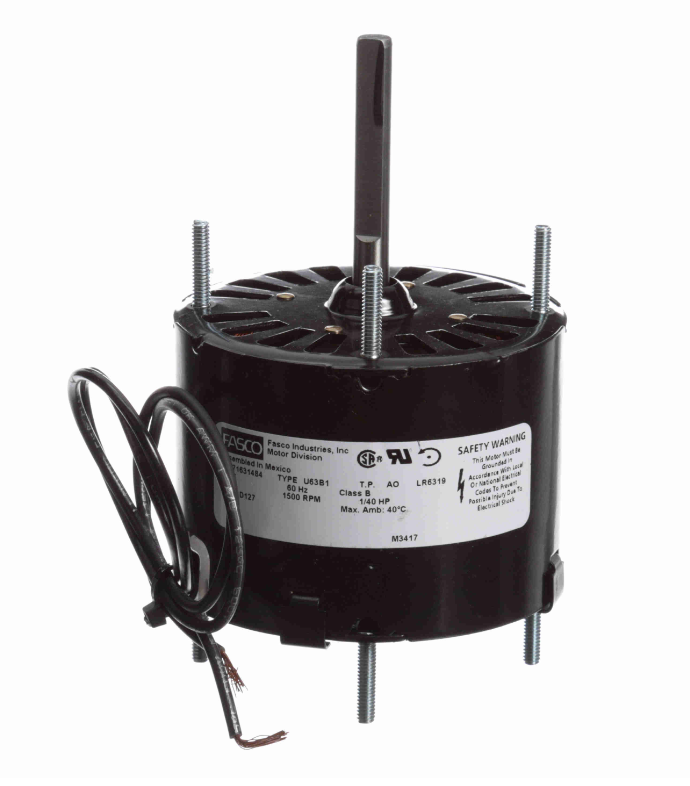

D127, Fan and Blower Motor, 1/40Hp, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3" Diameter, OAO

D127, Fan and Blower Motor, 1/40Hp, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3" Diameter, OAO

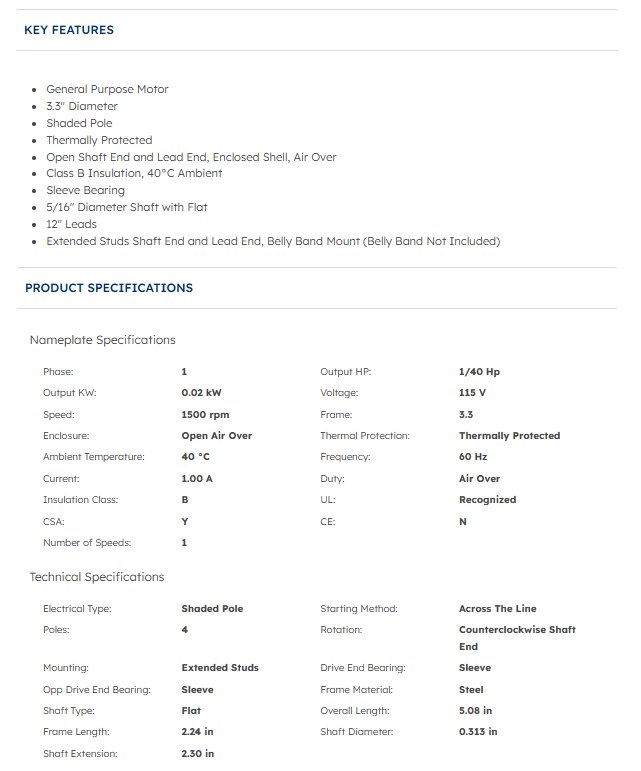

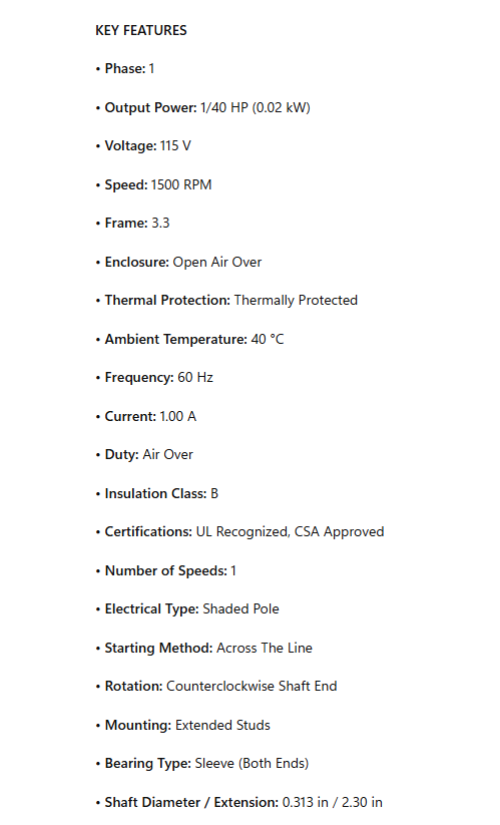

KEY FEATURES

• Phase: 1

• Output Power: 1/40 HP (0.02 kW)

• Voltage: 115 V

• Speed: 1500 RPM

• Frame: 3.3

• Enclosure: Open Air Over

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40 °C

• Frequency: 60 Hz

• Current: 1.00 A

• Duty: Air Over

• Insulation Class: B

• Certifications: UL Recognized, CSA Approved

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Rotation: Counterclockwise Shaft End

• Mounting: Extended Studs

• Bearing Type: Sleeve (Both Ends)

• Shaft Diameter / Extension: 0.313 in / 2.30 in
