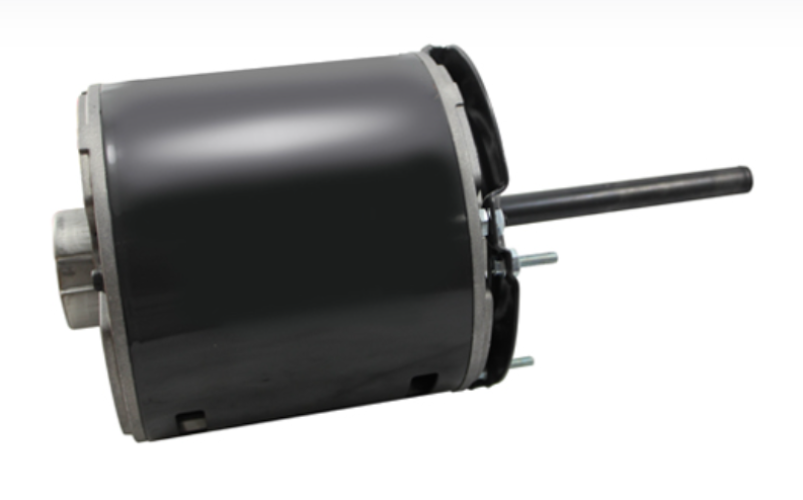

BL6505V1A, Fan and Blower Motor, 1/5,1/8,1/10Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 42 Frame, OAO

BL6505V1A, Fan and Blower Motor, 1/5,1/8,1/10Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 42 Frame, OAO

Outdated model – replaced by US Motors 1390, K048STZ3519012B

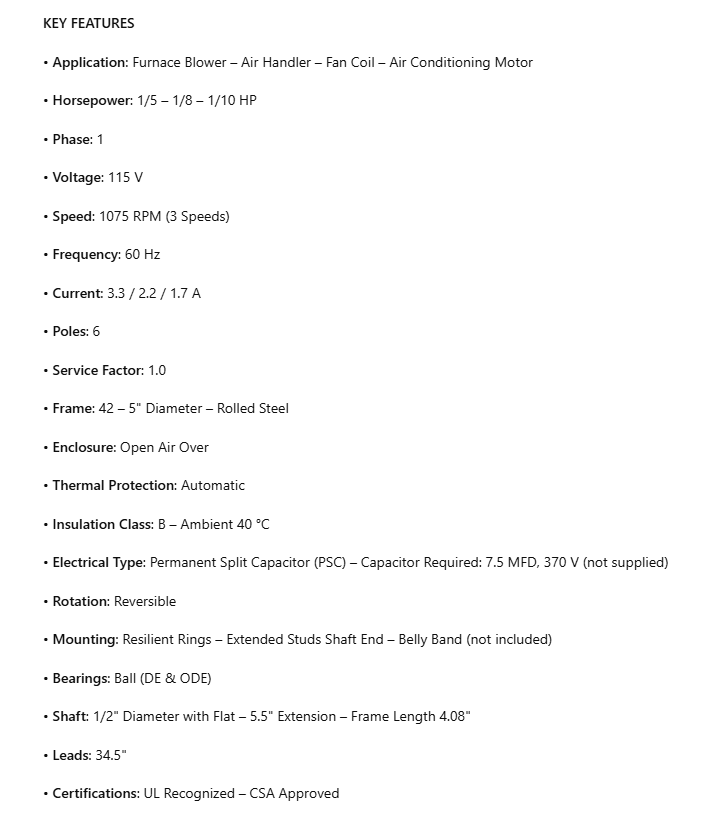

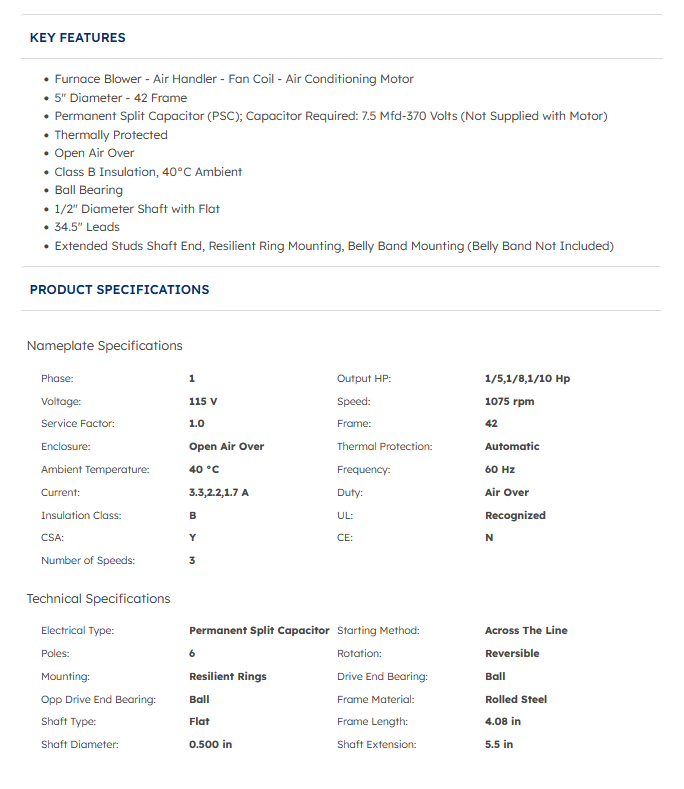

KEY FEATURES

• Application: Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor

• Horsepower: 1/5 – 1/8 – 1/10 HP

• Phase: 1

• Voltage: 115 V

• Speed: 1075 RPM (3 Speeds)

• Frequency: 60 Hz

• Current: 3.3 / 2.2 / 1.7 A

• Poles: 6

• Service Factor: 1.0

• Frame: 42 – 5" Diameter – Rolled Steel

• Enclosure: Open Air Over

• Thermal Protection: Automatic

• Insulation Class: B – Ambient 40 °C

• Electrical Type: Permanent Split Capacitor (PSC) – Capacitor Required: 7.5 MFD, 370 V (not supplied)

• Rotation: Reversible

• Mounting: Resilient Rings – Extended Studs Shaft End – Belly Band (not included)

• Bearings: Ball (DE & ODE)

• Shaft: 1/2" Diameter with Flat – 5.5" Extension – Frame Length 4.08"

• Leads: 34.5"

• Certifications: UL Recognized – CSA Approved
