R1-R103L, MOTOR 1/45HP REFRIGERATION, EVAPORATOR, COIL 3.3"DIA. 1550 RPM, 115V, ROTOM MOTOR W/BRACKET , FOSTER, HUSSMANN
R1-R103L, MOTOR 1/45HP REFRIGERATION, EVAPORATOR, COIL 3.3"DIA. 1550 RPM, 115V, ROTOM MOTOR W/BRACKET , FOSTER, HUSSMANN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimate shipping
Please correct the following errors:
Description
Description

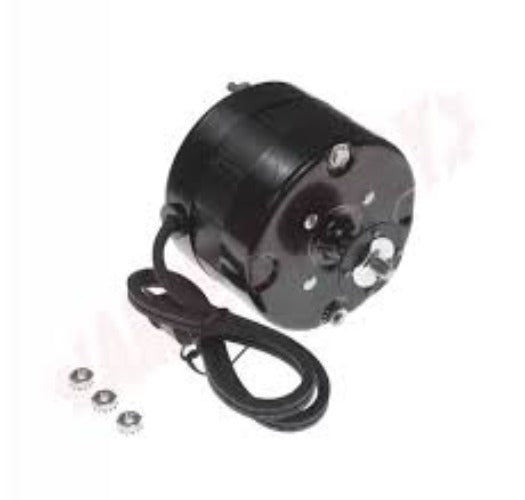

Rotom R103L OEM Evaporator Coil Motor. WITH BRACKET,
OBSOLETE SEE R1-R103 ( Without Bracket use the old L Bracket)
This model is discontinued, replaced by R1-R103
Applications Evaporator Coils, Coolers, Refrigeration Cases, Etc.
Use with Foster, Hussmann and other Units needing these specifications.
Replaces 76103, SS103103, D436, SM103, SM104
| Product Specifications | |
|---|---|
| Body Diameter (Inches): | 3.3 |
| Frame: | 3.3 |
| HP: | 1/45 |
| Volts: | 115 |
| Amps: | 0.80 |
| RPM: | 1550 |
| Speeds: | 1 |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Totally Enclosed |
| Shaft: Diameter x Length (Inches): | Threaded |
| Motor Type: | Shaded Pole |
| Body Length (Inches): | 2.34 |
| Mounting: | 3P/TLEG |
| Wiring: | Leads |
INCLUDE BRACKET
Feature(s) :Lyall Cord & Plug with 2 or 3 Bolt Mounting
Works with the following brands
Replaces Old Numbers: 2818-541-028, 2868-505-058, 2868-505-071, 2868-507-008, 2868-507-009, 2868-509-006, 2868-509-015, 2878-507-008, 2878-507-009, 5812, AA2M5656, D436, R103, S5812, SM-103, SM-104, SS103, R103
