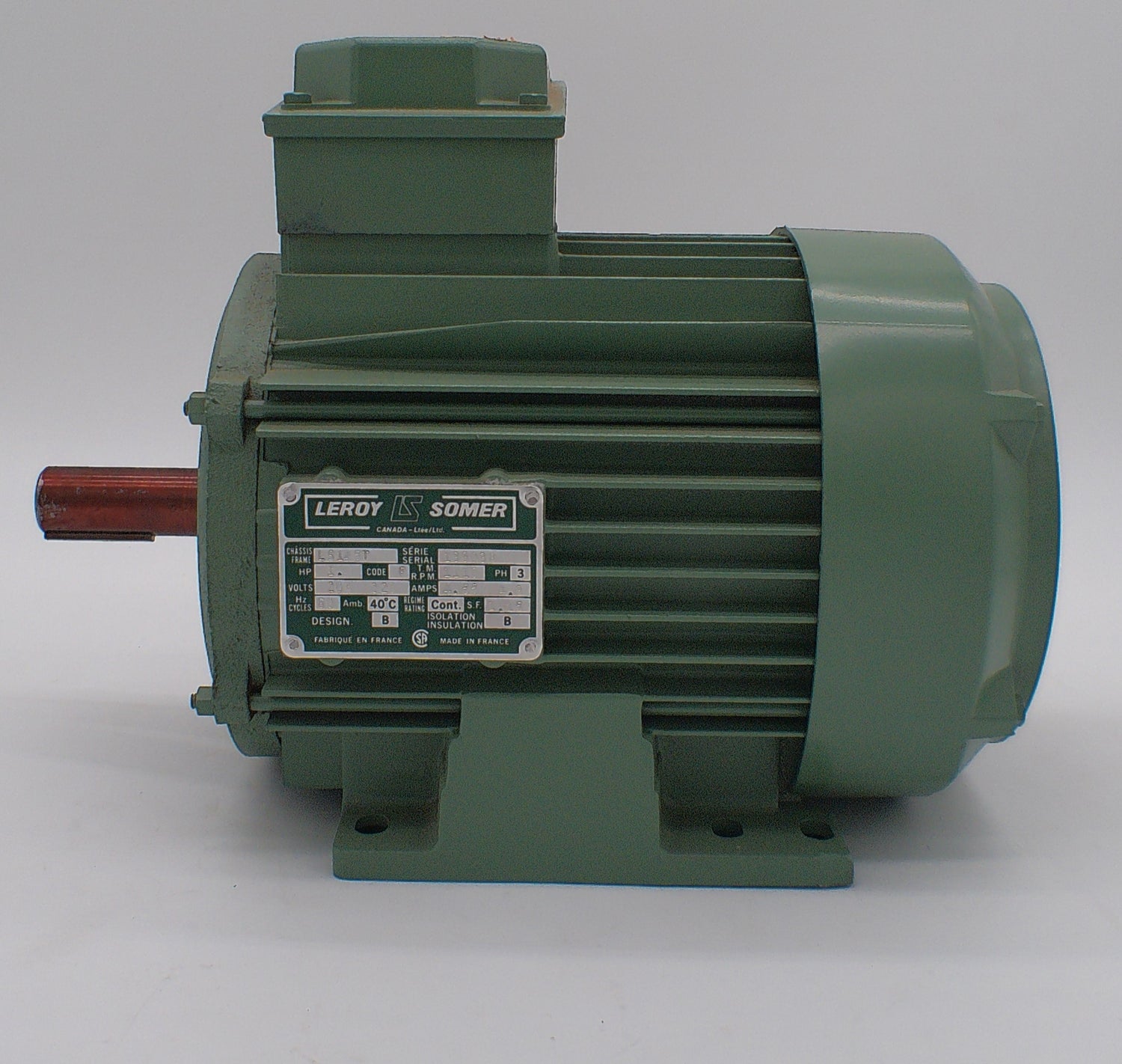

LSLS145T, 133038, 1Hp, 1110 Rpm, 220 Volts, Frame: 145T, Tefc,

LSLS145T, 133038 Leroy-Somer

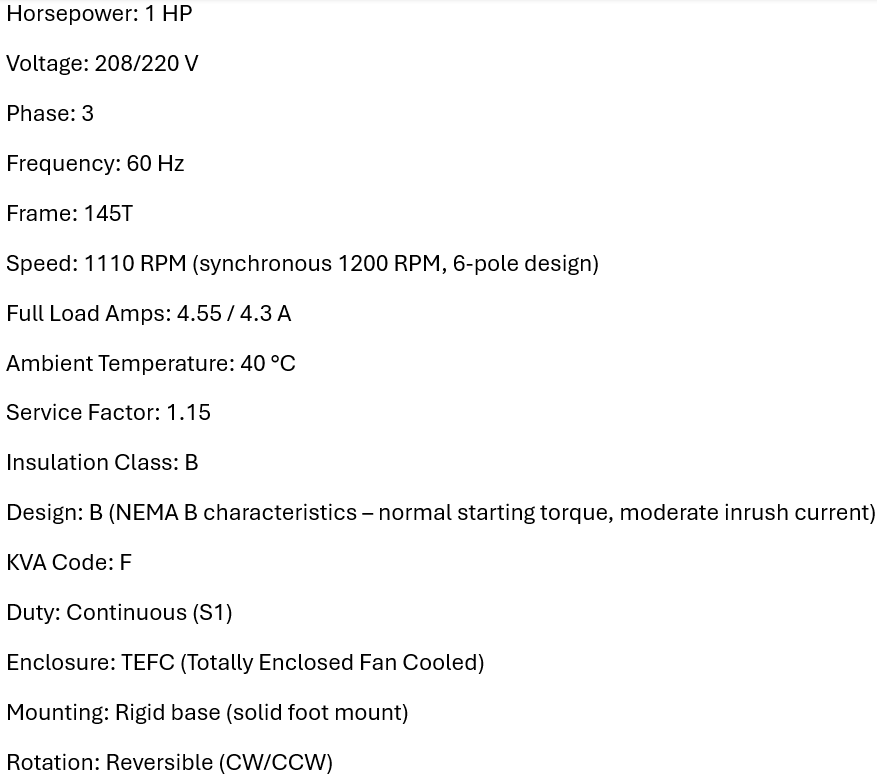

• Horsepower: 1 HP

• Voltage: 208/220 V

• Phase: 3

• Frequency: 60 Hz

• Frame: 145T

• Speed: 1110 RPM (synchronous 1200 RPM, 6-pole design)

• Full Load Amps: 4.55 / 4.3 A

• Ambient Temperature: 40 °C

• Service Factor: 1.15

• Insulation Class: B

• Design: B (NEMA B characteristics – normal starting torque, moderate inrush current)

• KVA Code: F

• Duty: Continuous (S1)

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Mounting: Rigid base (solid foot mount)

• Rotation: Reversible (CW/CCW)
