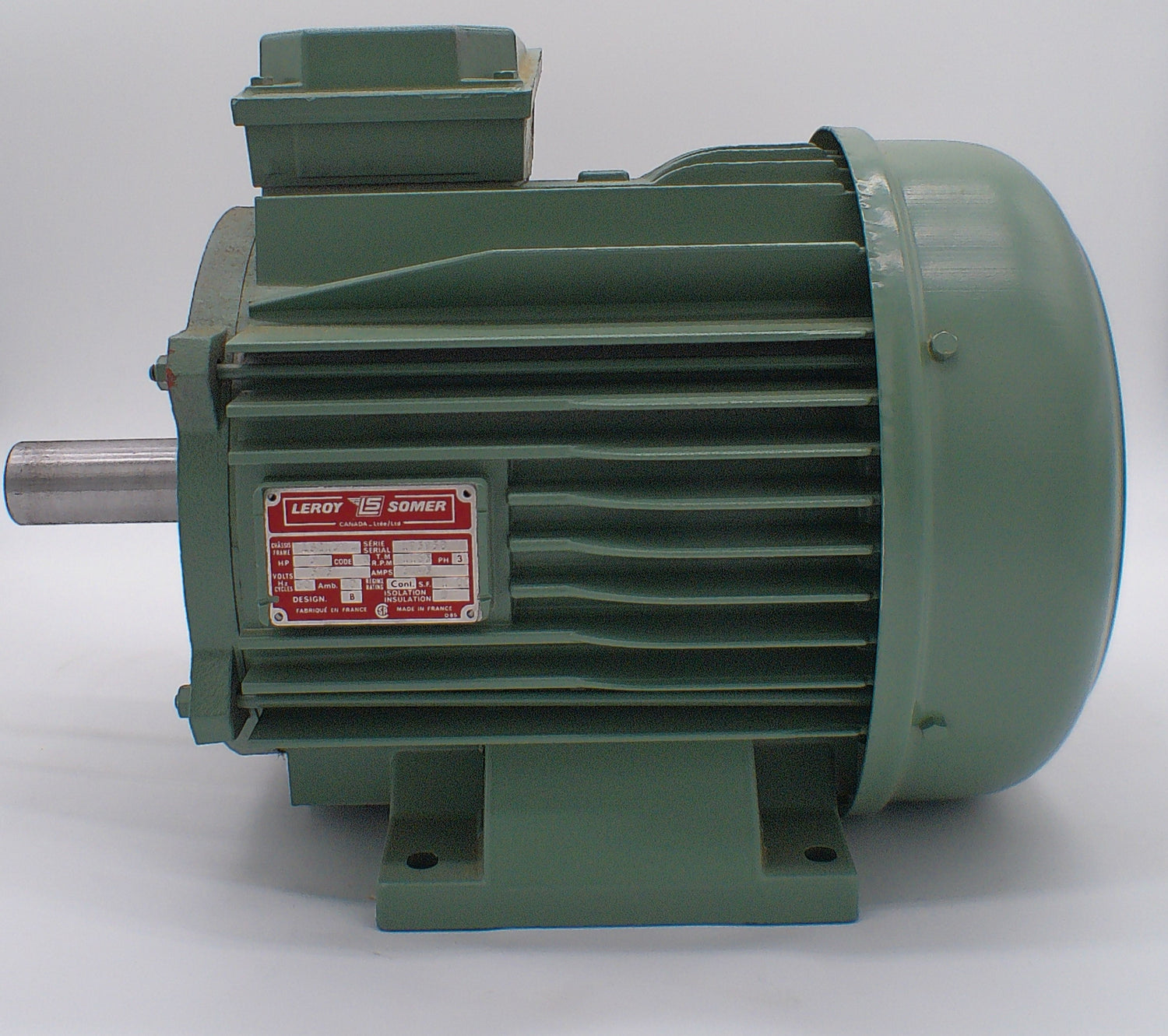

LS132, 195958, 3 Hp, 1165 Rpm, 575 Volts, Frame: 213T, Tefc,

LS132, 195958

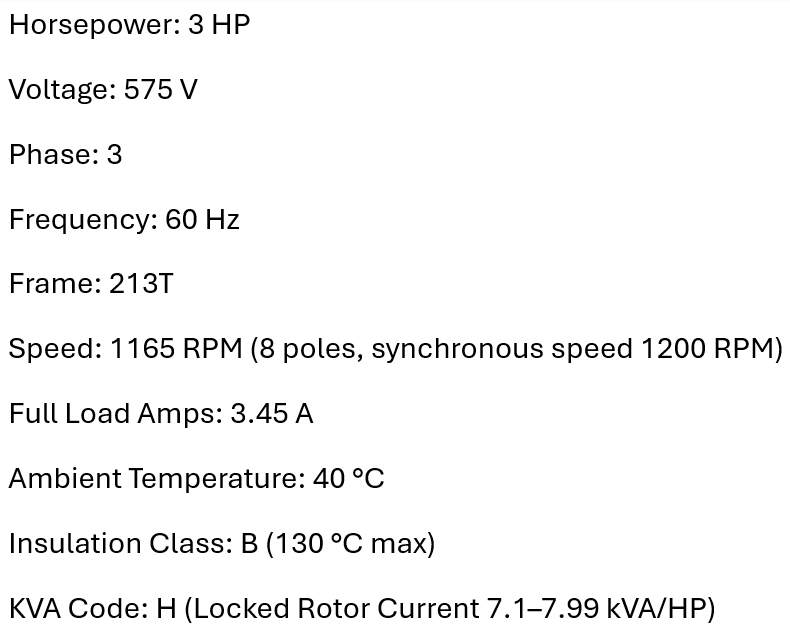

• Horsepower: 3 HP

• Voltage: 575 V

• Phase: 3

• Frequency: 60 Hz

• Frame: 213T

• Speed: 1165 RPM (8 poles, synchronous speed 1200 RPM)

• Full Load Amps: 3.45 A

• Ambient Temperature: 40 °C

• Insulation Class: B (130 °C max)

• KVA Code: H (Locked Rotor Current 7.1–7.99 kVA/HP)

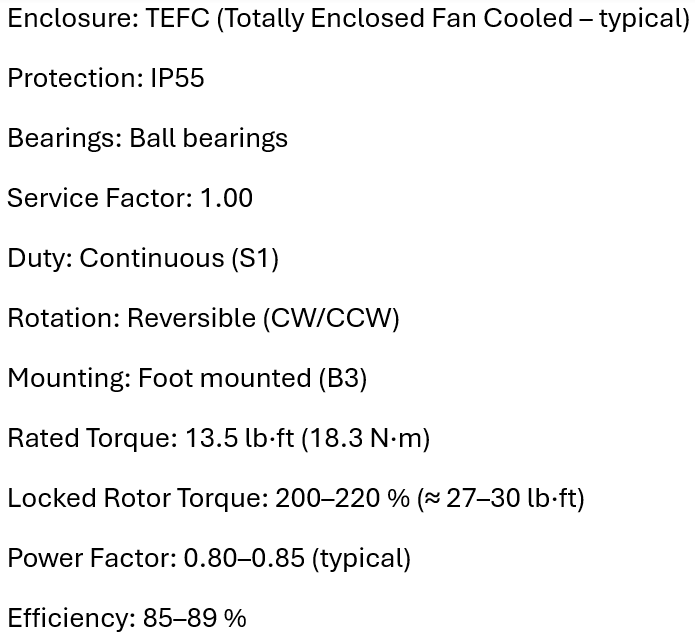

• Enclosure: TEFC (Totally Enclosed Fan Cooled – typical)

• Protection: IP55

• Bearings: Ball bearings

• Service Factor: 1.00

• Duty: Continuous (S1)

• Rotation: Reversible (CW/CCW)

• Mounting: Foot mounted (B3)

• Rated Torque: 13.5 lb·ft (18.3 N·m)

• Locked Rotor Torque: 200–220 % (≈ 27–30 lb·ft)

• Power Factor: 0.80–0.85 (typical)

• Efficiency: 85–89 %
