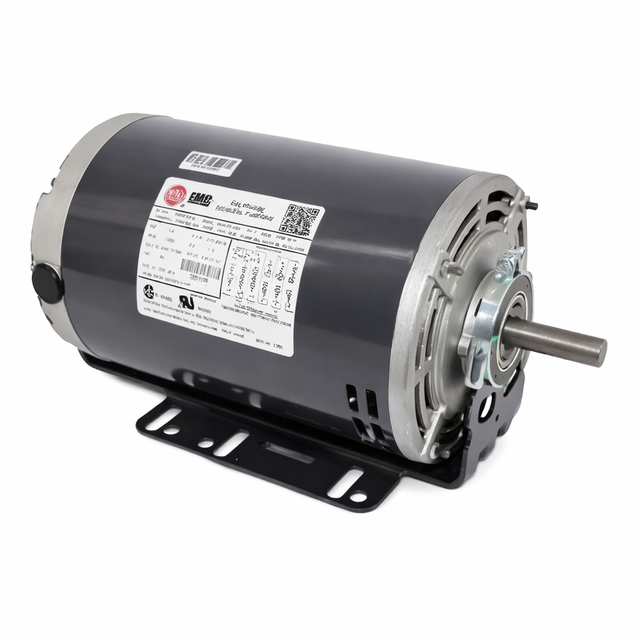

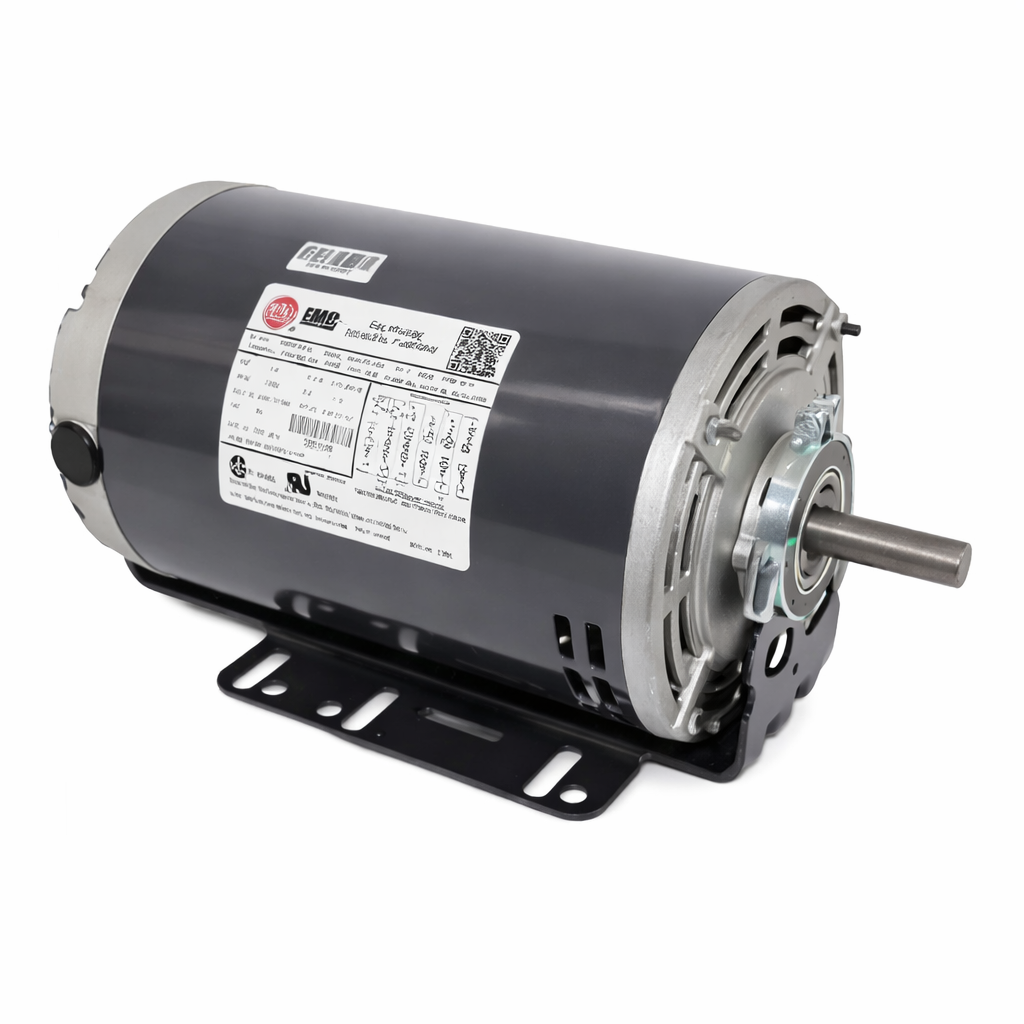

D32P2AH9, 1.5Hp, 1725 RPM, 208-230/460V, 3Ph, 60Hz, ODP, Frame 56H, RESILIENT BASE

D32P2AH9, 1.5Hp, 1725 RPM, 208-230/460V, 3Ph, 60Hz, ODP, Frame 56H, RESILIENT BASE

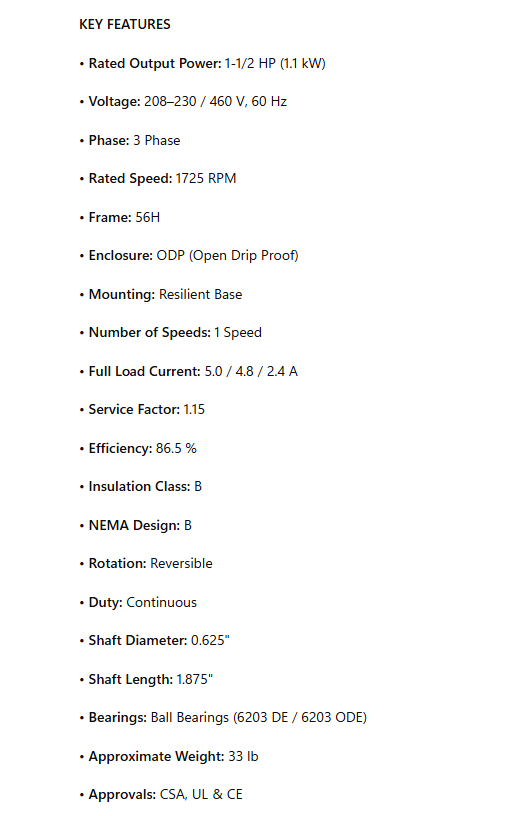

KEY FEATURES

• Rated Output Power: 1-1/2 HP (1.1 kW)

• Voltage: 208–230 / 460 V, 60 Hz

• Phase: 3 Phase

• Rated Speed: 1725 RPM

• Frame: 56H

• Enclosure: ODP (Open Drip Proof)

• Mounting: Resilient Base

• Number of Speeds: 1 Speed

• Full Load Current: 5.0 / 4.8 / 2.4 A

• Service Factor: 1.15

• Efficiency: 86.5 %

• Insulation Class: B

• NEMA Design: B

• Rotation: Reversible

• Duty: Continuous

• Shaft Diameter: 0.625"

• Shaft Length: 1.875"

• Bearings: Ball Bearings (6203 DE / 6203 ODE)

• Approximate Weight: 33 lb

• Approvals: CSA, UL & CE
