ELCO MOTORS | SKU:
EMN-018217

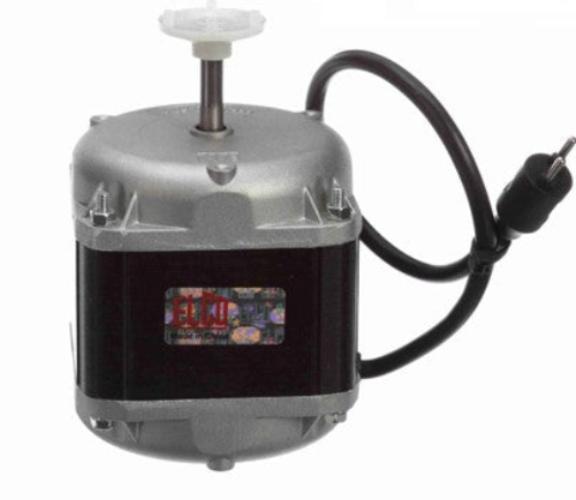

EC34W230, Elco, 1/20Hp, 34 Watt, 1 Phase, 230 Volt, 1800 Rpm, TEAO,
Regular price
$223.14
Unit price
/
Unavailable
EC34W230, Elco, 1/20Hp, 34 Watt, 1 Phase, 230 Volt, 1800 Rpm, TEAO, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
EC34W230, Elco, 1/20Hp, 34 Watt, 1 Phase, 230 Volt, 1800 Rpm, TEAO,
Regular price
$223.14
Unit price
/
Unavailable
Description
Description
EC34W230, Elco

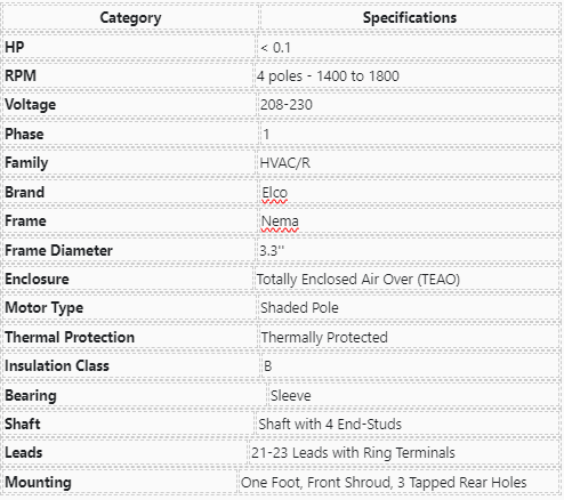

| Category | Specifications |
|---|
| HP | < 0.1 34W |
| RPM | 4 poles - 1400 to 1800 |
| Voltage | 208-230 |
| Phase | 1 |
| Family | HVAC/R |
| Brand | Elco |
| Frame | Nema |
| Frame Diameter | 3.3'' |
| Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor Type | Shaded Pole |
| Thermal Protection | Thermally Protected |
| Insulation Class | B |
| Bearing | Sleeve |
| Shaft | Shaft with 4 End-Studs |
| Leads | 21-23 Leads with Ring Terminals |
| Mounting | One Foot, Front Shroud, 3 Tapped Rear Holes |
