ELCO MOTORS | SKU:
EMN-018317

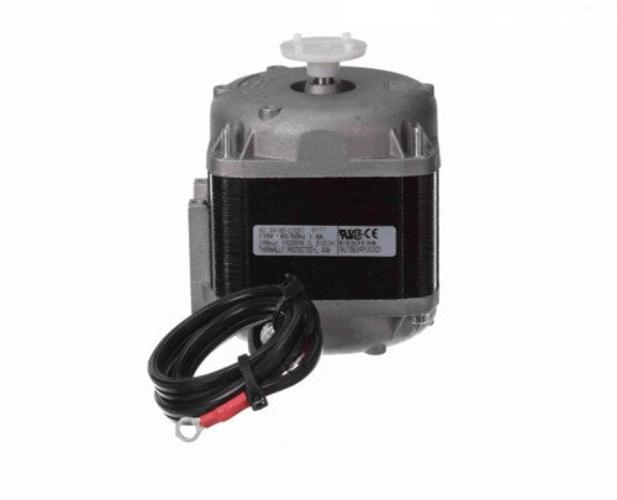

EC34W115, Elco, 1/20Hp, 1550 Rpm, 115 Volts, Fr:Unit Bearing, Teao,
Regular price
$198.54
Unit price
/
Unavailable
EC34W115, Elco, 1/20Hp, 1550 Rpm, 115 Volts, Fr:Unit Bearing, Teao, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
EC34W115, Elco, 1/20Hp, 1550 Rpm, 115 Volts, Fr:Unit Bearing, Teao,
Regular price
$198.54
Unit price
/
Unavailable
Description
Description
EC34W115, Elco, NU 34-45-2/057, M4Q045-EF03-04,
| Specification | Details |
|---|---|
| Horsepower (HP) | 1/20 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Voltage (V) | 115 |
| RPM | 1550 |
| Frame | Unit Bearing |
| Enclosure | Totally Enclosed Air Over (TEAO) |
| Diameter | 3.3" |
| Motor Type | Shaded Pole |
| Thermal Protection | Thermally Protected |
| Insulation Class | B |
| Bearing Type | Sleeve |
| Shaft Features | Shaft with 4 End-Studs |
| Lead Information | 21-23 Leads with Ring Terminals |
| Mounting Features | One Foot, Front Shroud, 3 Tapped Rear Holes |
