US MOTORS  |  SKU: EMN-019315

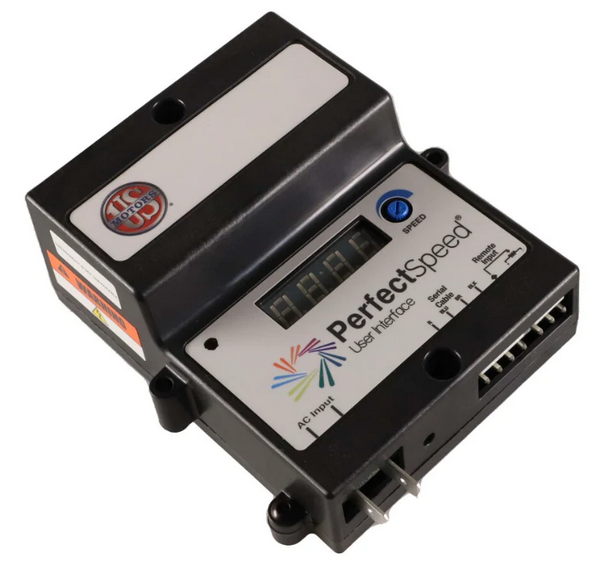

PS-UI, PerfectSpeed User Interface, ECM Motors, Z2983766500000L,

$369.58
shipping

Estimate shipping

Description

PS-UI, Us Motors PerfectSpeed User Interface Z2983766500000L,C497925440000, 700-015148-0000,N657035606,

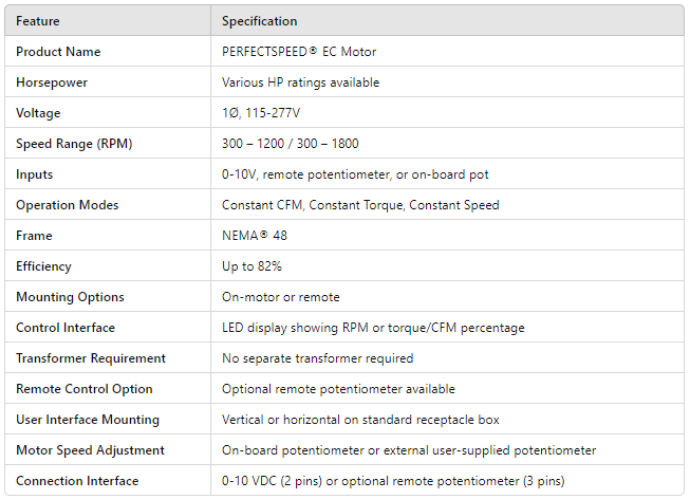

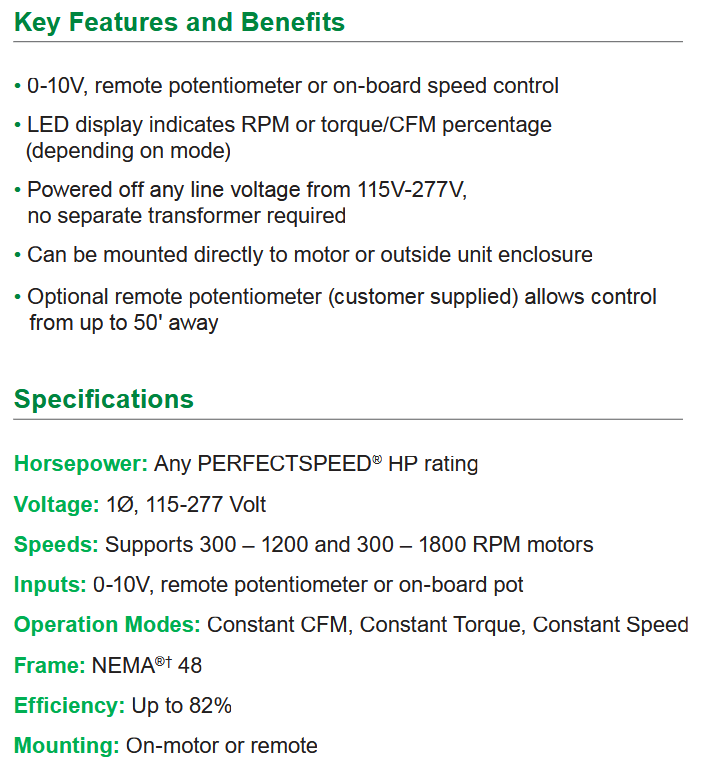

Feature Specification
Product Name PERFECTSPEED® EC Motor, Z2983766500000L
Horsepower Various HP ratings available
Voltage 1Ø, 115-277V
Speed Range (RPM) 300 – 1200 / 300 – 1800
Inputs 0-10V, remote potentiometer, or on-board pot
Operation Modes Constant CFM, Constant Torque, Constant Speed
Frame NEMA® 48
Efficiency Up to 82%

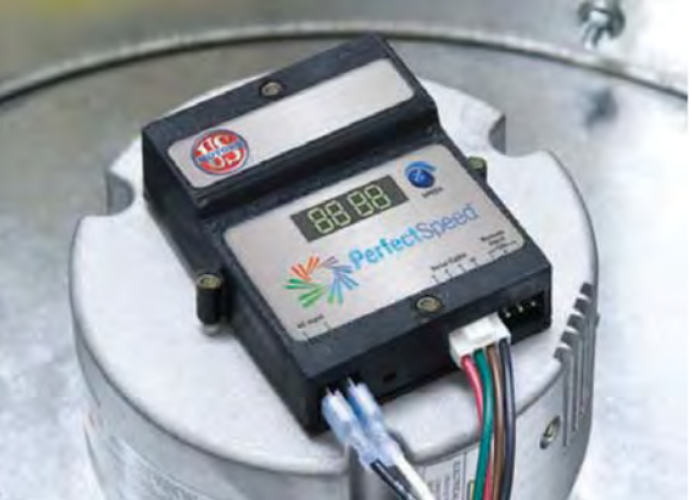

Mounting Options On-motor or remote

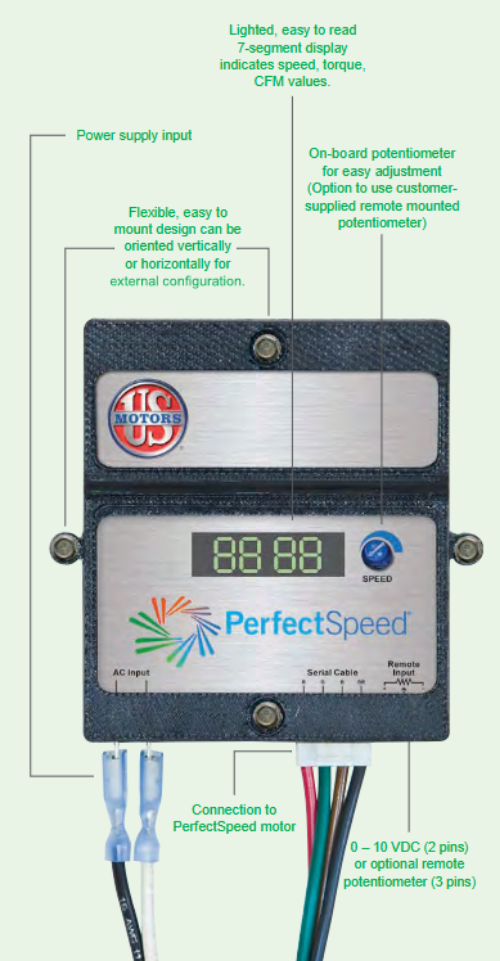

Control Interface LED display showing RPM or torque/CFM percentage
Transformer Requirement No separate transformer required

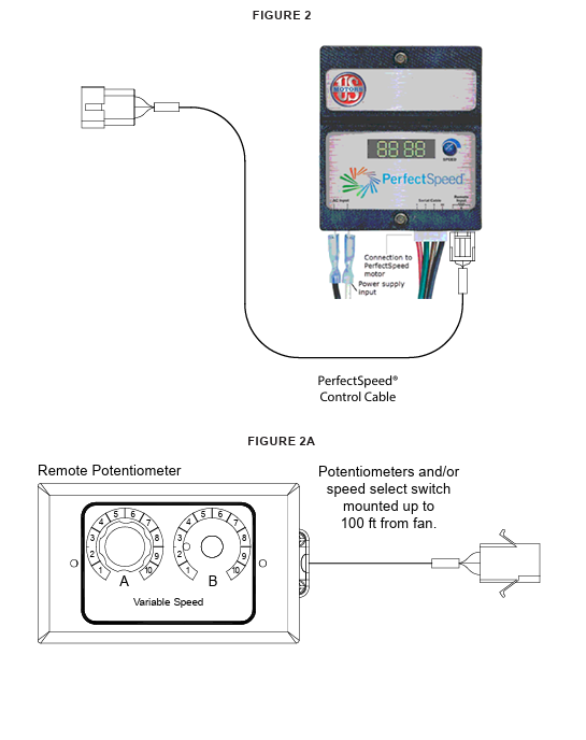

Remote Control Option Optional remote potentiometer available
User Interface Mounting Vertical or horizontal on standard receptacle box
Motor Speed Adjustment On-board potentiometer or external user-supplied potentiometer

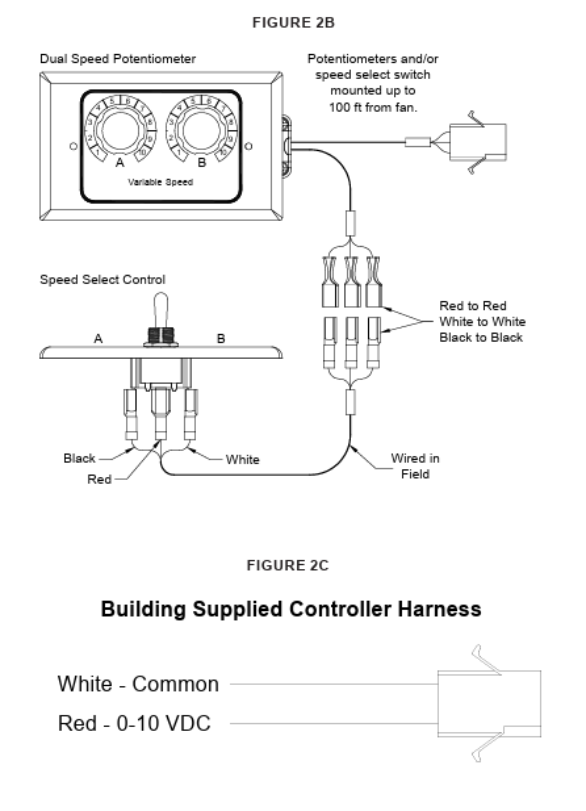

Connection Interface 0-10 VDC (2 pins) or optional remote potentiometer (3 pins)
