KBMD-240D, KB Electronics DC Drives, KBMD Series, 9370 SCR, 1/100-2HP CONTROL, 115/230VAC, 1-WAY
DC Drives, KBMD Series
Item# KBMD-240D - Drive, DC, 120/240VAC, 11A Max, N1, Thru 0.75/1.5 HP, 1.0/2.0HP w/H.S., 90/180VDC
Armature, Line Fuse, 9370
KBMD Series Information
- 1/100~2 Horsepower
- 110 or 240 VAC Input
- NEMA 1 Enclosure
- UL, cUL Approvals

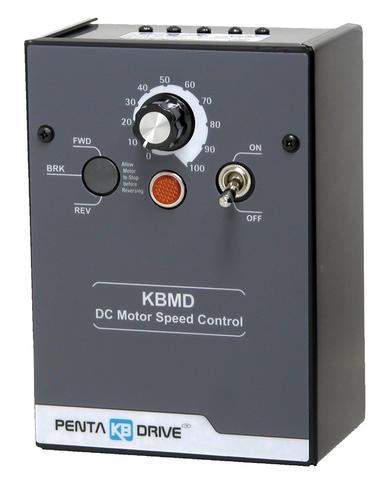

The KBMD, also known as the "Multi‑Drive," can be used with motors from 1/100 through 2 horsepower and is housed in a NEMA‑1 Aluminum enclosure. The heart of this DC Drive is the KBMM. A unique feature of the KBMD allows it to operate a 90 VDC motor from either 110 or 240 VAC making it universally acceptable.
- Armature Feedback
KB Multi-Drive™ represents the latest in state-of-the-art design for variable speed DC motor controls. It is rugged and compact is size and is able to handle both 115 and 230V AC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motors by selecting and inserting the appropriate Plug-in Horsepower Resistor®.
The standard model, KBMD-240D, controls all motors through 3⁄4 Hp at 115V and 1.5 Hp at 230V. By installing the KB Auxiliary Heatsink, the horsepower range is increased to 1 Hp at 115V and 2 Hp at 230V. The versatility of the control is enhanced with the optional Forward-Brake-Reverse Switch Kit.
The electronics for the Multi-Drive™ consists of KB’s patented KBMM™ speed control module. Its field-proven reliability is confirmed by over 100,000 controls presently in operation. The KBMM™ module is housed in a rugged metal (not plastic, like other inexpensive drives) enclosure. Keyhole slots facilitate mounting while a readily accessible terminal block simplifies wiring. Included with each control is a detailed instruction and user manual.
Direct replacement for the BALDOR BC140
|Input Amps AC:||12 Amps|
|Output Armature VDC:||90/180 Volts DC|
|Max HP @ 90VDC Armature:||1 Horsepower|
|Max HP @ 180VDC Armature:||2 Horsepower|
|Output Field Amps DC:||1 Amps|
|Max Armature Amps DC:||8 Amps|
|Output Field Volts DC:||
50/100/200 Volts DC
|Operator Controls:||Built In|
|Enclosure Rating:||NEMA 1|
|Temperature Range (F):||
32 to 105 Degrees F
|H x W x D:||
7.13 in x 5.06 in x 4 in
|Net Weight:||3 lb|
