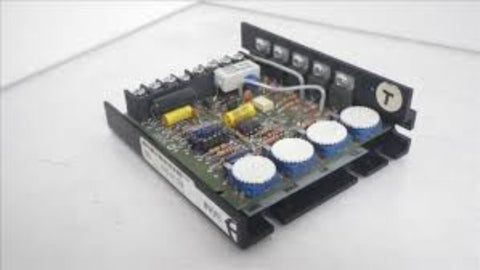

125DVC-Z2016, DART, 125DV, 1HP, 90-180V, DC Speed Control, Dart Control

DART CONTROL

  • $237.44


Dart Controls, 125DV-C-Z2016,

DC Drives, 125 Series

Item# 125DV-C - Drive, DC, 5.5A, 120/240VAC, Chassis Includes Remote Spd Pot Kit (Single Turn Linear Potentiometer)

125 Series Information

  • 1/50~1HP, 120VAC Input, 0-90VDC Output
  • 1/25~2HP, 240VAC Input, 0‑180VDC Output
  • Non-Regenerative
  • Chassis (IP00) Enclosed
  • UL; cUL; CE Approvals
  • Armature/Tachometer Feedback
  • Adjustable Min/Max
  • Adjustable Current Limit
  • Full Wave Bridge Supply


Speed Pot, Knob and Dial Plate Included

Current Limit Trim Pot Eliminates Plug‑In Resistor

The 125 Series is a compact, cost efficient, reliable control for permanent magnet, shunt wound, and universal motors that incorporates up‑to‑date design and engineering into a compact package. The 125 Series is ideal for applications such as: office machinery, conveyors, office packaging equipment, printers, process equipment, centrifuges, and exercise equipment.

Specifications





Item Number: 125DV-C
Brand: Dart Controls
Item Category: Drives
Subcategory: DC
Series: 125
Input VAC:
108 to 132/216 to 264 Volts AC
Input Amps AC:
2 to 6.5/1.8 to 6.5 Amps
Output Armature VDC: 90/180 Volts DC
Max HP @ 90VDC Armature: 0.5 Horsepower
Max HP @ 180VDC Armature: 1 Horsepower
Input Phase: 1
Output Field Amps DC: 1 Amps
Max Armature Amps DC:
1.6 to 5/1.4 to 5 Amps
Output Field Volts DC: 100/200 Volts DC
Regen: No
Feedback Types:
Armature;Tachometer
Operator Controls: Not Available
Package: Chassis
Temperature Range (F):
14 to 113 Degrees F
Approvals: UL,cUL,CE
Picture No.:
DART_DRIV_125DV
H x W x D:
2 in x 6.5 in x 7.75 in
Net Weight: 12.48 OZ
Gross Weight: 12.416 OZ





 A compact, cost-efficient, reliable control for PM, Shunt Wound DC motors and Universal motors. The 125 Series variable speed control incorporates up-to-date design and engineering into an amazingly small package. Installation and field adjustment are facilitated using a barrier type terminal strip and large, easily adjusted trimpots. Adjustable horsepower range – 120VAC, 1/50 through 1/8 HP and 1/4 through 1/2 HP; 240VAC, 1/25 through 1/4 HP and 1/8 through 1 HP. Standard features include an inhibit circuit for start-stop operation and 1% speed regulation over a 50:1 speed range. Dual voltage 120/240VAC or 24/36VAC models are available. Long life and quality are assured by 100% full load testing. The 125 Series is ideal for applications such as: office machinery, conveyors,  packaging equipment, printers, process equipment, centrifuges, and exercise equipment.

MODEL NUMBER STYLE INPUT (VAC) OUTPUT (VDC) OUTPUT HP RANGE
123D-C CHASSIS 24 OR 36 0-20 (24VAC) 0-30 (36VAC) 0.15-5.5 ADC ARMATURE
125D-12C CHASSIS 120/240 0-90/180 1/50-1/8 (90V) 1/25-1/4 (180V)
125DV-C CHASSIS 120/240 0-90/180 1/8-1/2 (90V) 1/4-1 (180V)
