BALDOR  |  SKU: EMN-019417

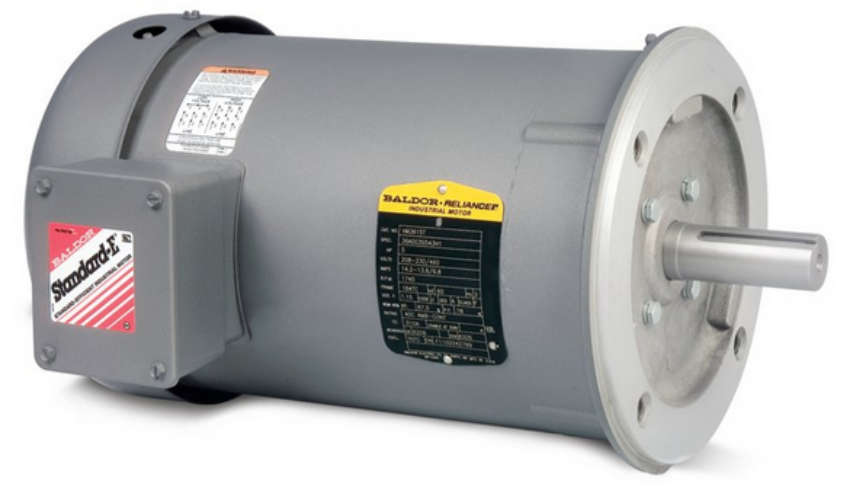

VM3534-57, Baldor, .33Hp , 230/400V, 1425RPM, 3PH, 50Hz, 56C, 3413M, TEFC, F1

$557.70
shipping

Estimate shipping

Description

VM3534-57, Baldor, .33Hp , 230/400V, 1425RPM, 3PH, 50Hz, 56C, 3413M, TEFC, F1

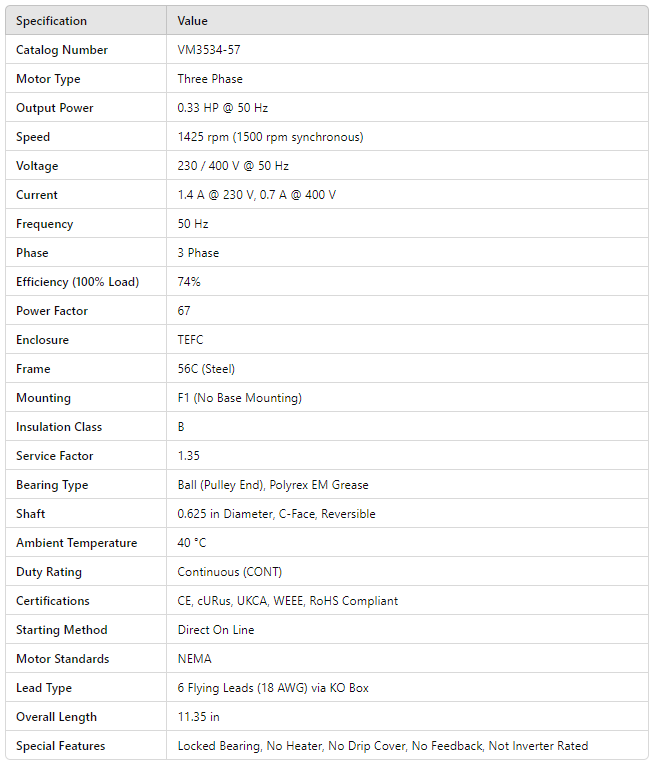

Specification Value
Catalog Number VM3534-57
Motor Type Three Phase
Output Power 0.33 HP @ 50 Hz
Speed 1425 rpm (1500 rpm synchronous)
Voltage 230 / 400 V @ 50 Hz
Current 1.4 A @ 230 V, 0.7 A @ 400 V
Frequency 50 Hz
Phase 3 Phase
Efficiency (100% Load) 74%
Power Factor 67
Enclosure TEFC
Frame 56C (Steel)
Mounting F1 (No Base Mounting)
Insulation Class B
Service Factor 1.35
Bearing Type Ball (Pulley End), Polyrex EM Grease
Shaft 0.625 in Diameter, C-Face, Reversible
Ambient Temperature 40 °C
Duty Rating Continuous (CONT)
Certifications CE, cURus, UKCA, WEEE, RoHS Compliant
Starting Method Direct On Line
Motor Standards NEMA
Lead Type 6 Flying Leads (18 AWG) via KO Box
Overall Length 11.35 in
Special Features Locked Bearing, No Heater, No Drip Cover, No Feedback, Not Inverter Rated
