E-Motor Nations  |  SKU: EMN-019416

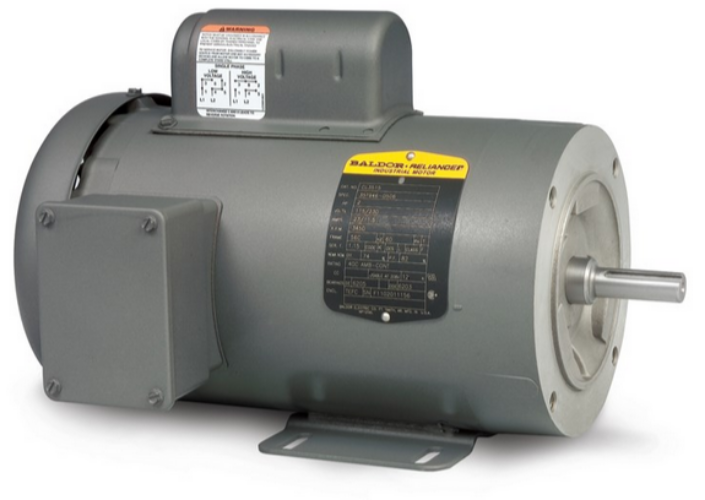

CL3405, Baldor, .33Hp, 115/208-230V, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

$592.46
shipping

Estimate shipping

Description

CL3405, Baldor .33Hp, 115/208-230V, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

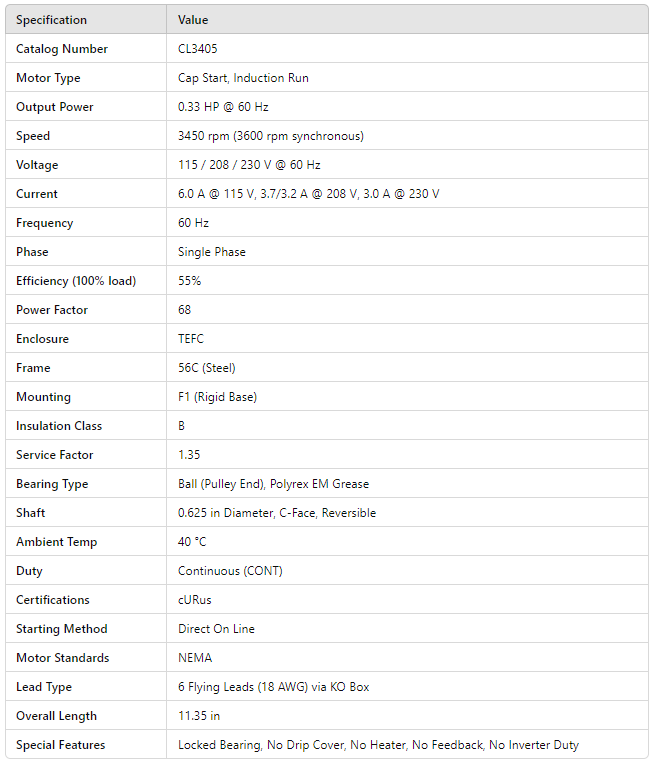

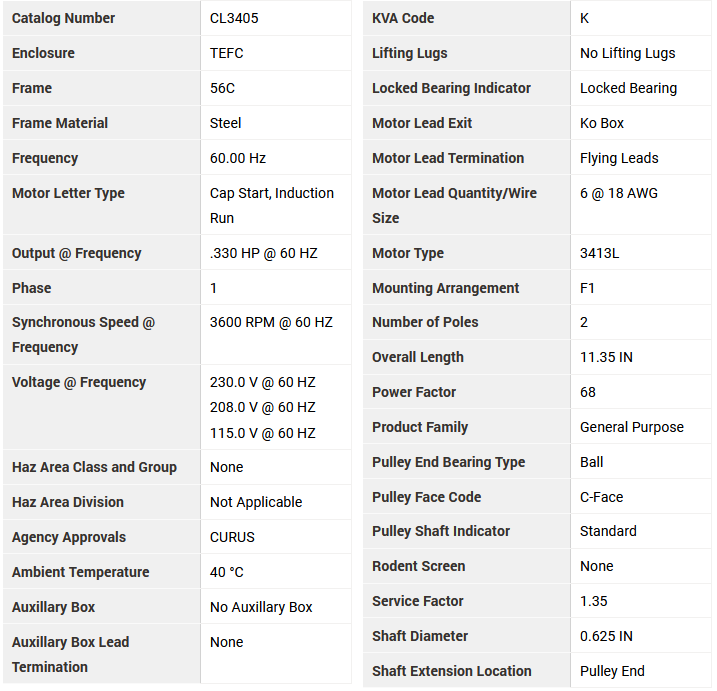

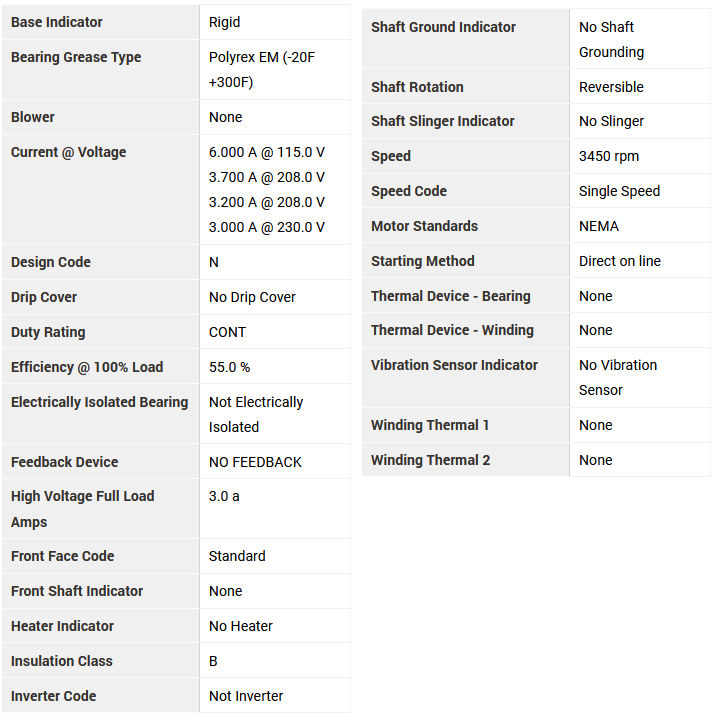

Specification Value
Catalog Number CL3405
Motor Type Cap Start, Induction Run
Output Power 0.33 HP @ 60 Hz
Speed 3450 rpm (3600 rpm synchronous)
Voltage 115 / 208 / 230 V @ 60 Hz
Current 6.0 A @ 115 V, 3.7/3.2 A @ 208 V, 3.0 A @ 230 V
Frequency 60 Hz
Phase Single Phase
Efficiency (100% load) 55%
Power Factor 68
Enclosure TEFC
Frame 56C (Steel)
Mounting F1 (Rigid Base)
Insulation Class B
Service Factor 1.35
Bearing Type Ball (Pulley End), Polyrex EM Grease
Shaft 0.625 in Diameter, C-Face, Reversible
Ambient Temp 40 °C
Duty Continuous (CONT)
Certifications cURus
Starting Method Direct On Line
Motor Standards NEMA

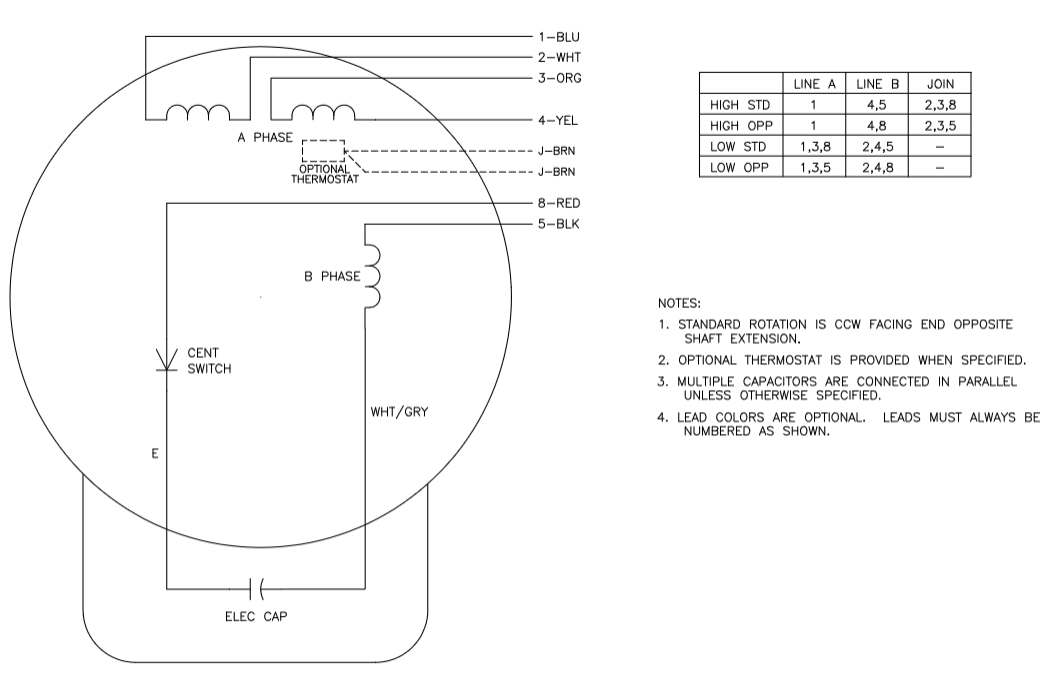

Lead Type 6 Flying Leads (18 AWG) via KO Box

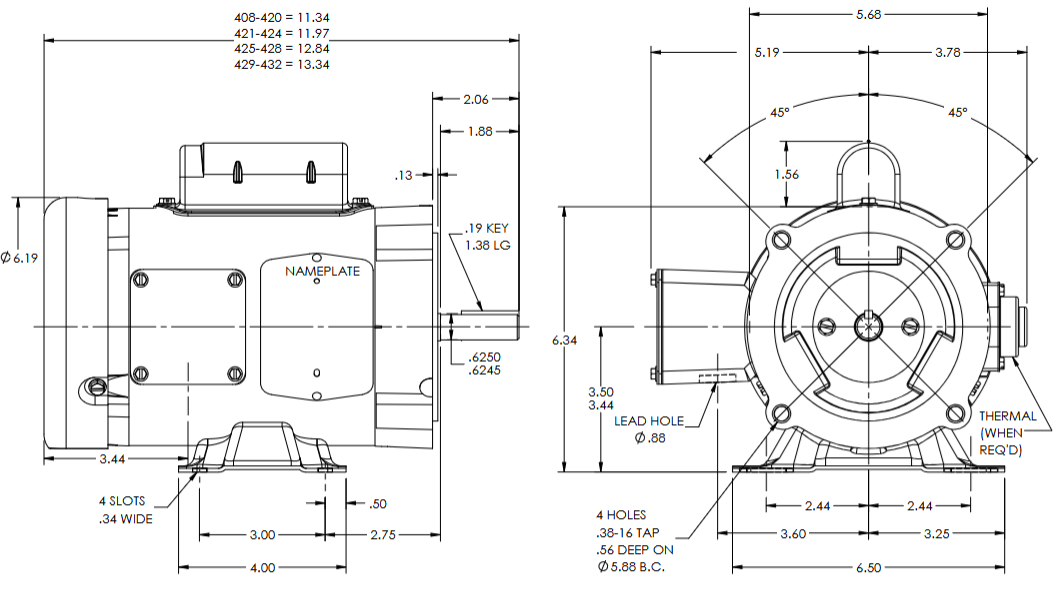

Overall Length 11.35 in
Special Features Locked Bearing, No Drip Cover, No Heater, No Feedback, No Inverter Duty
