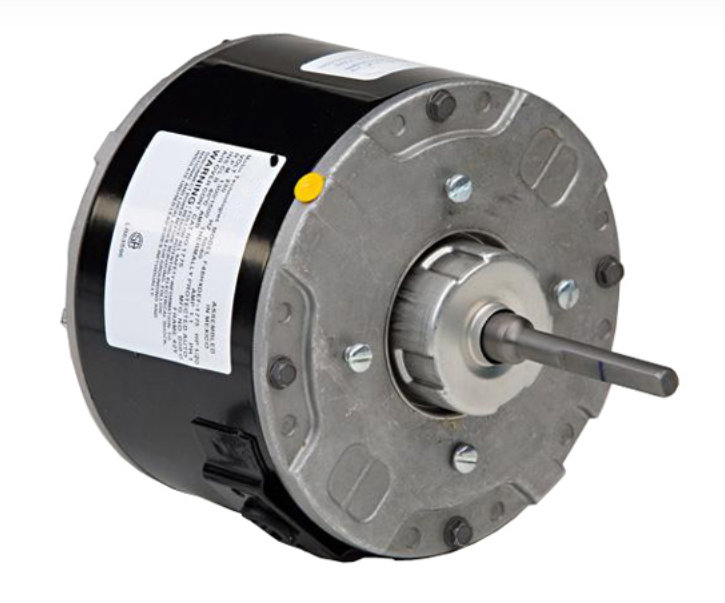

1779P, 0.067Hp, OAO, 1300/1500 RPM, 230V, 50/60HZ, FRAME 42Y, CCWLE, K048GES4281013B

1779P, 0.067Hp, OAO, 1300/1500 RPM, 230V, 50/60HZ, FRAME 42Y, CCWLE, K048GES4281013B

Replace: OTC6001, Techumseh Part No 810E050A85, K48HXGES-42187, CODE 7A010 , MFG. NO J15C, 156060, 326P136, 810S050A99, 9336 US MOTORS

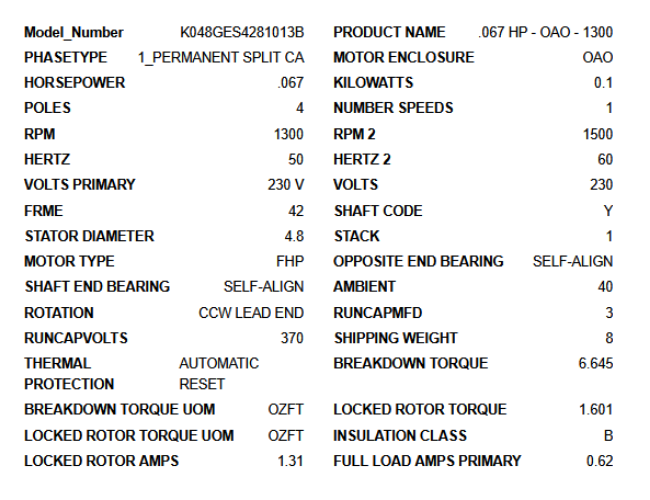

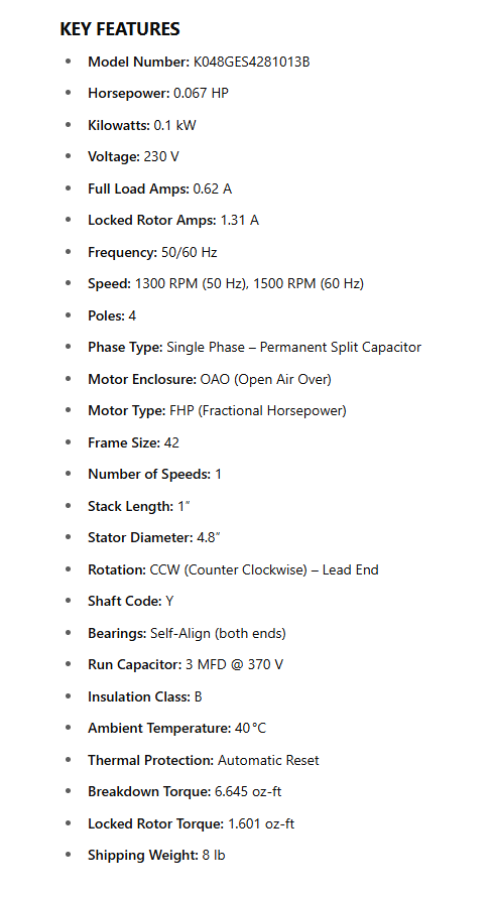

KEY FEATURES

• Model Number: K048GES4281013B

• Horsepower: 0.067 HP

• Kilowatts: 0.1 kW

• Voltage: 230 V

• Full Load Amps: 0.62 A

• Locked Rotor Amps: 1.31 A

• Frequency: 50/60 Hz

• Speed: 1300 RPM (50 Hz), 1500 RPM (60 Hz)

• Poles: 4

• Phase Type: Single Phase – Permanent Split Capacitor

• Motor Enclosure: OAO (Open Air Over)

• Motor Type: FHP (Fractional Horsepower)

• Frame Size: 42

• Number of Speeds: 1

• Stack Length: 1″

• Stator Diameter: 4.8″

• Rotation: CCW (Counter Clockwise) – Lead End

• Shaft Code: Y

• Bearings: Self-Align (both ends)

• Run Capacitor: 3 MFD @ 370 V

• Insulation Class: B

• Ambient Temperature: 40 °C

• Thermal Protection: Automatic Reset

• Breakdown Torque: 6.645 oz-ft

• Locked Rotor Torque: 1.601 oz-ft

• Shipping Weight: 8 lb

About Fasco

Regal-Rexnord has been manufacturing and distributing draft inducers, blowers, and fractional horsepower motors for the commercial HVAC industry under the Fasco brand for over 100 years.

Innovation is the name of their game. Using the latest in technology and their expertise in the electric motor industry, Fasco develops customized furnace motors to meet and exceed the demands of their customers. With over 100 engineers and technicians, they are devoted to motor design and testing that evolves along with the demands of industry.

These problem solvers focus on efficiency in their designing and manufacturing processes to provide innovative and cost-effective products to their customers.
