DELTA ELECTRONICS  |  SKU: EMN-018894

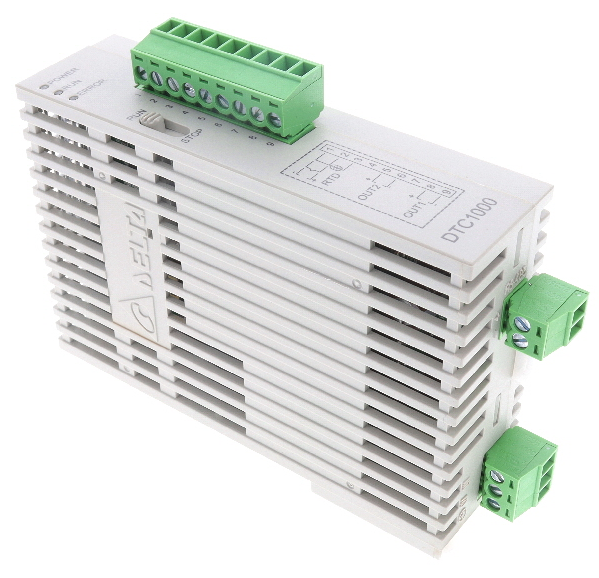

P-DTC1000R, Temp. Control. Mpu Din Rail Relay Output

$254.90
shipping

Estimate shipping

Description

P-DTC1000R, Temp. Control. Mpu Din Rail Relay Output

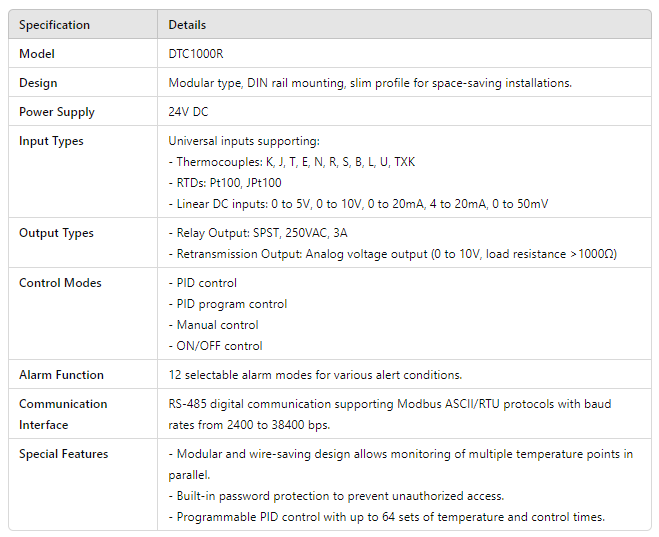

Specification Details
Model DTC1000R
Design Modular type, DIN rail mounting, slim profile for space-saving installations.
Power Supply 24V DC
Input Types Universal inputs supporting:
- Thermocouples: K, J, T, E, N, R, S, B, L, U, TXK
- RTDs: Pt100, JPt100
- Linear DC inputs: 0 to 5V, 0 to 10V, 0 to 20mA, 4 to 20mA, 0 to 50mV
Output Types - Relay Output: SPST, 250VAC, 3A
- Retransmission Output: Analog voltage output (0 to 10V, load resistance >1000Ω)
Control Modes - PID control
- PID program control
- Manual control
- ON/OFF control
Alarm Function 12 selectable alarm modes for various alert conditions.
Communication Interface RS-485 digital communication supporting Modbus ASCII/RTU protocols with baud rates from 2400 to 38400 bps.
Special Features - Modular and wire-saving design allows monitoring of multiple temperature points in parallel.
- Built-in password protection to prevent unauthorized access.
- Programmable PID control with up to 64 sets of temperature and control times.
