DELTA ELECTRONICS | SKU: EMN-018869

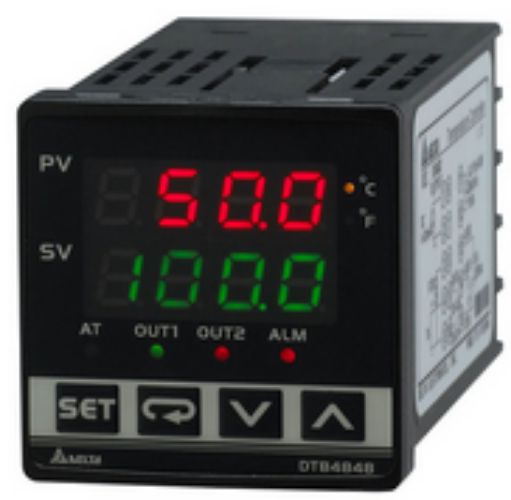

P-DTB4848LR, 1/16din Linear Voltage/Relay

Name: P-DTB4848LR, 1/16din Linear Voltage/Relay
Brand: DELTA ELECTRONICS
SKU: EMN-018869
Price: 253.02 CAD
Availability: InStock

$253.02

shipping

Estimate shipping

Country

Zip/Postal Code

P-DTB4848LR, 1/16din Linear Voltage/Relay

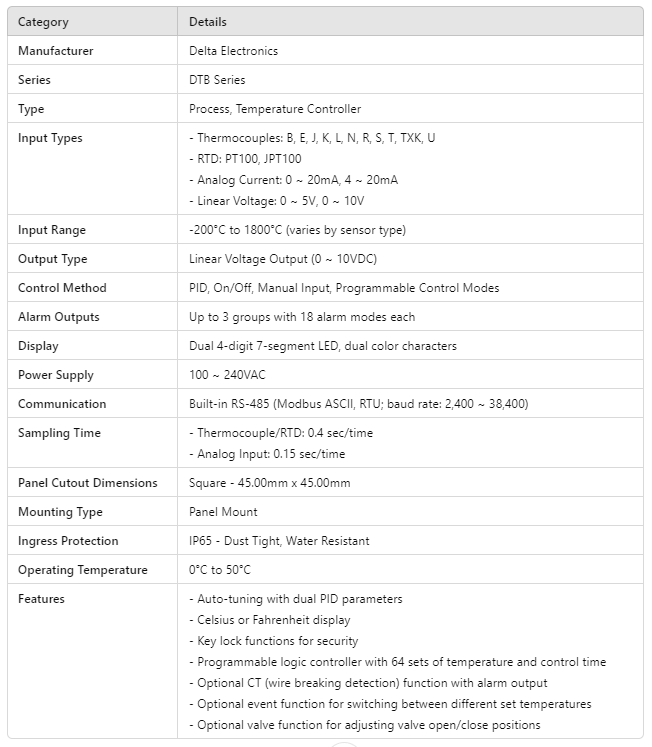

Category	Details
Manufacturer	Delta Electronics
Series	DTB Series
Type	Process, Temperature Controller
Input Types	- Thermocouples: B, E, J, K, L, N, R, S, T, TXK, U - RTD: PT100, JPT100 - Analog Current: 0 ~ 20mA, 4 ~ 20mA - Linear Voltage: 0 ~ 5V, 0 ~ 10V
Input Range	-200°C to 1800°C (varies by sensor type)
Output Type	Linear Voltage Output (0 ~ 10VDC)
Control Method	PID, On/Off, Manual Input, Programmable Control Modes
Alarm Outputs	Up to 3 groups with 18 alarm modes each
Display	Dual 4-digit 7-segment LED, dual color characters
Power Supply	100 ~ 240VAC
Communication	Built-in RS-485 (Modbus ASCII, RTU; baud rate: 2,400 ~ 38,400)
Sampling Time	- Thermocouple/RTD: 0.4 sec/time - Analog Input: 0.15 sec/time
Panel Cutout Dimensions	Square - 45.00mm x 45.00mm
Mounting Type	Panel Mount
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature	0°C to 50°C
Features	- Auto-tuning with dual PID parameters - Celsius or Fahrenheit display - Key lock functions for security - Programmable logic controller with 64 sets of temperature and control time - Optional CT (wire breaking detection) function with alarm output - Optional event function for switching between different set temperatures - Optional valve function for adjusting valve open/close positions
