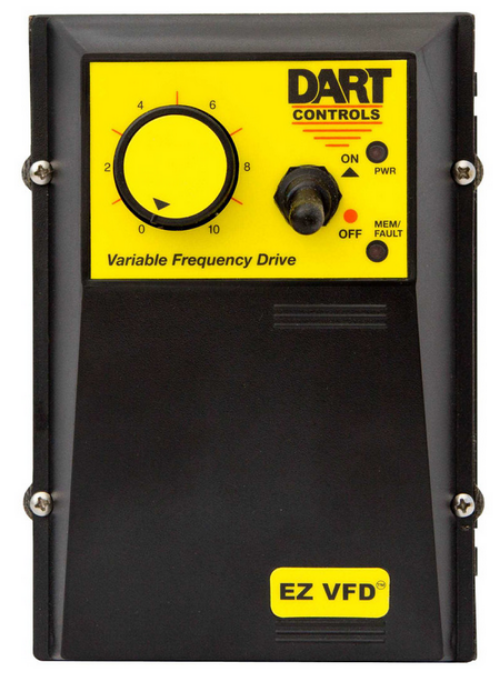

VF100E-R, EZ-VFD, 1/4 TO 1Hp, 110-240VAC (1PH) I/P ~ 230VAC (3PH) O/P, NEMA 4X with Run Relay Activation

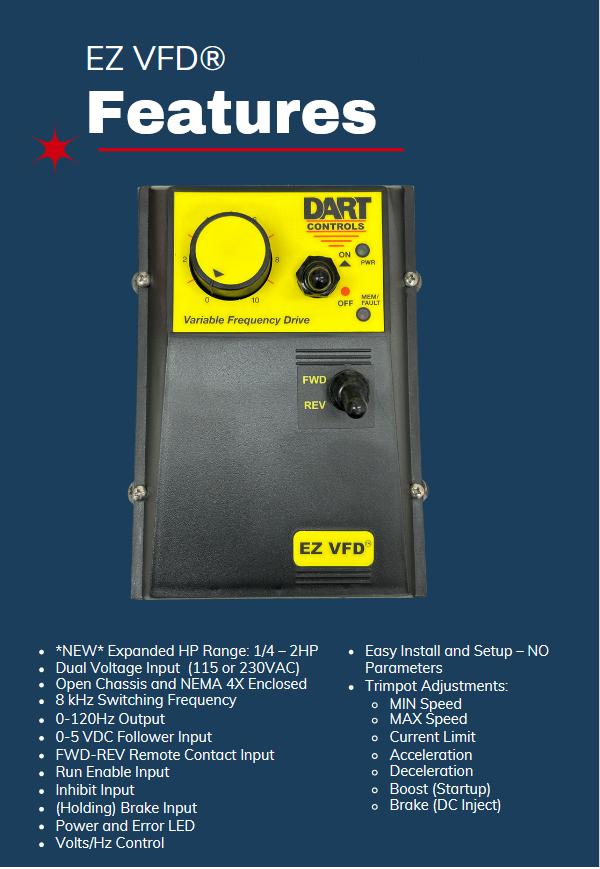

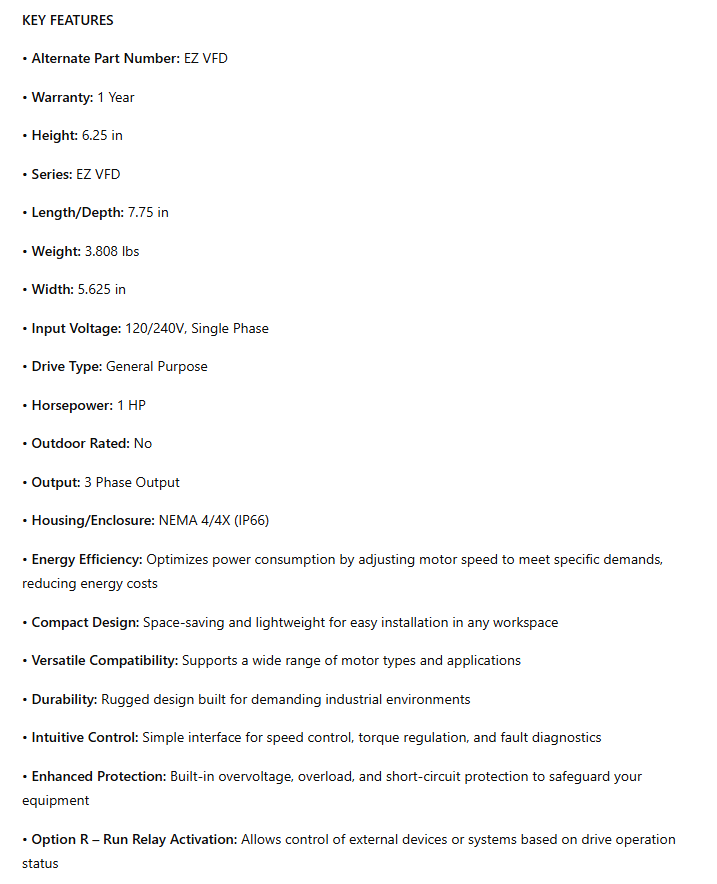

KEY FEATURES

• Alternate Part Number: EZ VFD

• Warranty: 1 Year

• Height: 6.25 in

• Series: EZ VFD

• Length/Depth: 7.75 in

• Weight: 3.808 lbs

• Width: 5.625 in

• Input Voltage: 120/240V, Single Phase

• Drive Type: General Purpose

• Horsepower: 1 HP

• Outdoor Rated: No

• Output: 3 Phase Output

• Housing/Enclosure: NEMA 4/4X (IP66)

• Energy Efficiency: Optimizes power consumption by adjusting motor speed to meet specific demands, reducing energy costs

• Compact Design: Space-saving and lightweight for easy installation in any workspace

• Versatile Compatibility: Supports a wide range of motor types and applications

• Durability: Rugged design built for demanding industrial environments

• Intuitive Control: Simple interface for speed control, torque regulation, and fault diagnostics

• Enhanced Protection: Built-in overvoltage, overload, and short-circuit protection to safeguard your equipment

• Option R – Run Relay Activation: Allows control of external devices or systems based on drive operation status
