PU-20R, PU Series 10PPR +4.5 To +30VDC Npn Single Direction Output Indoor Use 6' Cable
PU-20R, PU Series 10PPR +4.5 To +30VDC Npn Single Direction Output Indoor Use 6' Cable is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimate shipping
Please correct the following errors:
PU-20R, PU Series 10PPR +4.5 To +30VDC Npn Single Direction Output ...
Description
Description
PU-20R, PU Series 10PPR +4.5 To +30VDC Npn Single Direction Output Indoor Use 6' Cable

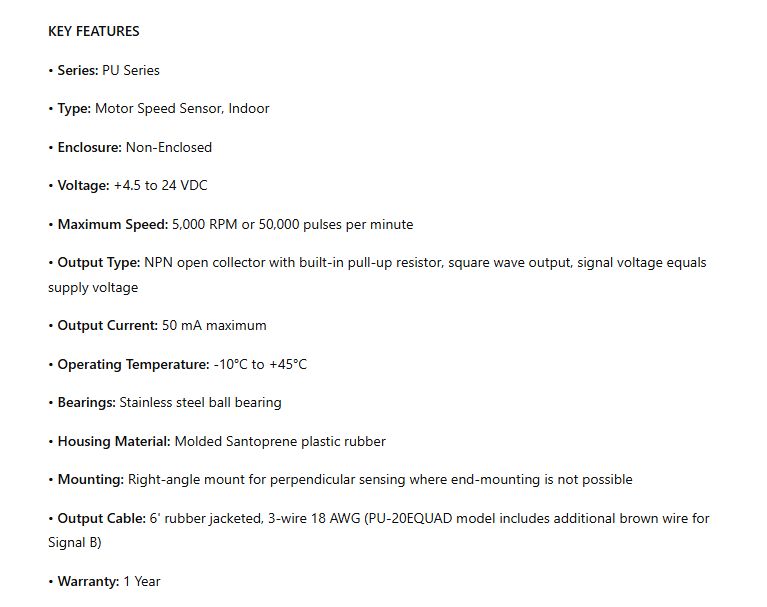

KEY FEATURES
• Series: PU Series
• Type: Motor Speed Sensor, Indoor
• Enclosure: Non-Enclosed
• Voltage: +4.5 to 24 VDC
• Maximum Speed: 5,000 RPM or 50,000 pulses per minute
• Output Type: NPN open collector with built-in pull-up resistor, square wave output, signal voltage equals supply voltage
• Output Current: 50 mA maximum
• Operating Temperature: -10°C to +45°C
• Bearings: Stainless steel ball bearing
• Housing Material: Molded Santoprene plastic rubber
• Mounting: Right-angle mount for perpendicular sensing where end-mounting is not possible
• Output Cable: 6' rubber jacketed, 3-wire 18 AWG (PU-20EQUAD model includes additional brown wire for Signal B)
• Warranty: 1 Year
The PU-E Series pick-up is an economical and reliable way to monitor motor speed. Its patented design provides ease of installation in otherwise difficult to reach areas. The
PU-E pick-up operates at a 5 to 24 volt level producing a sharp square wave output, which may be fed into Dart’s field programmable tachometer, closed-loop control, counter, or
any other digital device. the PU-e pick-up series also includes a quadrature model to monitor both motor speed and direction by providing two square wave output signals 81° out-of-phase.
