MD50P, DC Speed Control, Digital DC, Panel Mount, 90VDC Motor Voltage/120VAC Supply Voltage Rated 1/8 to 1Hp, 180VDC Motor Voltage/240VAC Supply Voltage Rated 1/4 to 2Hp. 10ADC Current

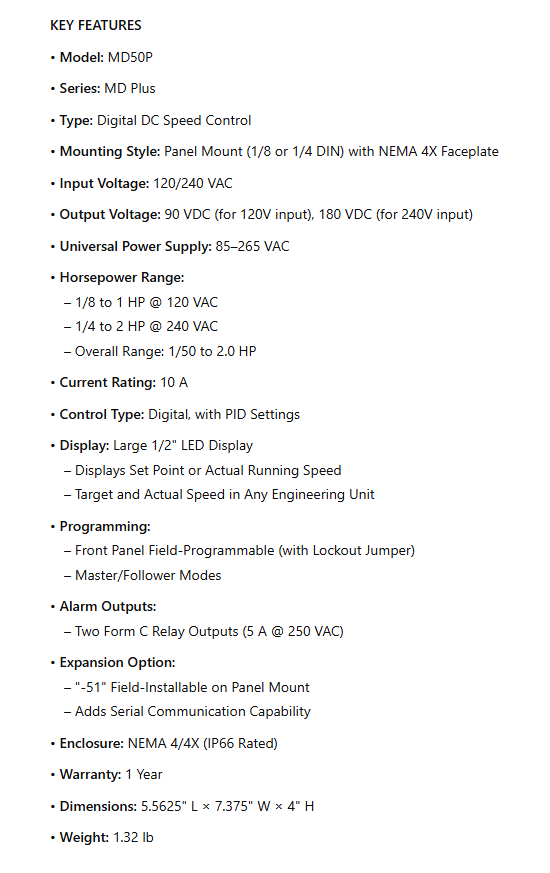

KEY FEATURES
• Model: MD50P
• Series: MD Plus
• Type: Digital DC Speed Control
• Mounting Style: Panel Mount (1/8 or 1/4 DIN) with NEMA 4X Faceplate
• Input Voltage: 120/240 VAC
• Output Voltage: 90 VDC (for 120V input), 180 VDC (for 240V input)
• Universal Power Supply: 85–265 VAC
• Horsepower Range:
– 1/8 to 1 HP @ 120 VAC
– 1/4 to 2 HP @ 240 VAC
– Overall Range: 1/50 to 2.0 HP
• Current Rating: 10 A
• Control Type: Digital, with PID Settings
• Display: Large 1/2" LED Display
– Displays Set Point or Actual Running Speed
– Target and Actual Speed in Any Engineering Unit
• Programming:
– Front Panel Field-Programmable (with Lockout Jumper)
– Master/Follower Modes
• Alarm Outputs:
– Two Form C Relay Outputs (5 A @ 250 VAC)
• Expansion Option:
– "-51" Field-Installable on Panel Mount
– Adds Serial Communication Capability
• Enclosure: NEMA 4/4X (IP66 Rated)
• Warranty: 1 Year
• Dimensions: 5.5625" L × 7.375" W × 4" H
• Weight: 1.32 lb

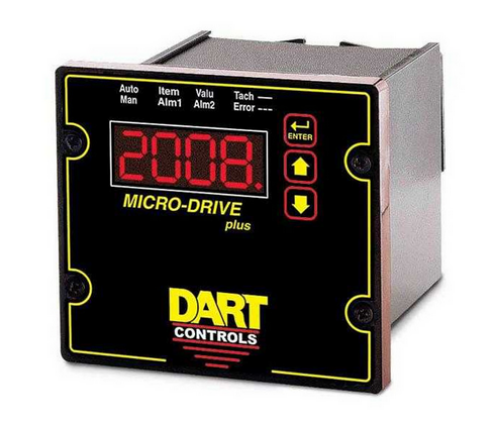

The MD Series is a compact, programmable DC speed control with digital closed loop feedback and LED display for DC motors rated to 2 horsepower. An on-board microprocessor with non-volatile memory, coupled with sophisticated internal software, makes Dart’s Micro-Drive the ultimate value in accuracy and control.
Friendly front-panel f ield programming permits customizing the MD for specific applications. The MD can be set to display the target speed directly in RPM, FPM, GPM,
process time, or any other engineering unit. Programmable parameters include maximum and minimum set speed, decimal points, and operating mode (master or follower).
The Micro-Drive is simple to operate: set the desired RPM, rate, or time in the large 1/2” LED display by depressing the “Up” and “Down” pushbuttons on the front panel. Settings can be one digit at a time or fast sweep. The Micro-Drive settings are exact and repeatable. It will precisely control speed to ±1/2 RPM of set speed, long term. No calibrations of the control are necessary.
The MD10P and MD3P have 1/8 DIN and 1/4 DIN industry
standard cutout dimensions respectively, providing easy
panel installations.
