DP4, Digital Display Speed Pot For Ac Or Dc Drives Microprocessor Based 1/2" Led Screen Universal Power 120/240vac Panel Mount

DP4, Digital Display Speed Pot For Ac Or Dc Drives Microprocessor Based 1/2" Led Screen Universal Power 120/240vac Panel Mount

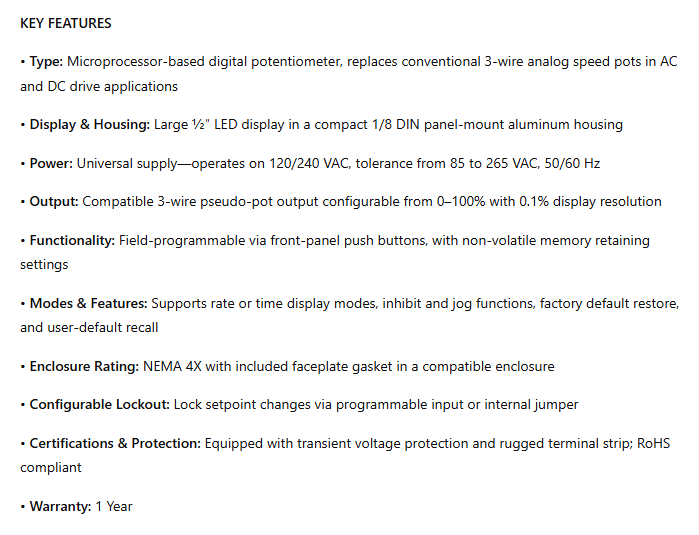

KEY FEATURES

• Type: Microprocessor-based digital potentiometer, replaces conventional 3-wire analog speed pots in AC and DC drive applications

• Display & Housing: Large ½″ LED display in a compact 1/8 DIN panel-mount aluminum housing

• Power: Universal supply—operates on 120/240 VAC, tolerance from 85 to 265 VAC, 50/60 Hz

• Output: Compatible 3-wire pseudo-pot output configurable from 0–100% with 0.1% display resolution

• Functionality: Field-programmable via front-panel push buttons, with non-volatile memory retaining settings

• Modes & Features: Supports rate or time display modes, inhibit and jog functions, factory default restore, and user-default recall

• Enclosure Rating: NEMA 4X with included faceplate gasket in a compatible enclosure

• Configurable Lockout: Lock setpoint changes via programmable input or internal jumper

• Certifications & Protection: Equipped with transient voltage protection and rugged terminal strip; RoHS compliant

• Warranty: 1 Year
