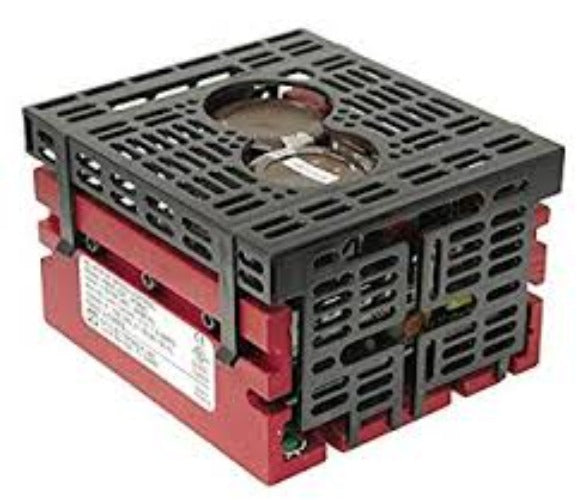

KBVF-23D, 9959, KB, 1/2 HP, 115/230V,AC Drive,IP20, 1PH IN, 3PH Output

KBVF-23D, P/N 9959, KB ELECTRONICS, AC DRIVES,

KBVF-23D, ajustable frequency AC Drive provides control of standard,

1/2 horsepower,

3 Phase AC and PSC induction motors used for Machine or Variable Torque (HVAC) applications.

Standard features include; Digital Programming, Adjustable RMS Current Limit, I2t prevents Motor Burnout, Slip Compensation with Auto-Tune & Boost provides excellent load regulation over a 30:1 speed range,

Power Start delivers over 200% motor starting torque to ensure startup of high frictional loads. Other standard features include Run/Fault Relay Output Contacts, Electronic Inrush Current Limit (EICL) that eliminates harmful AC Line inrush current and a built-in dV/dT filter, that reduces harmful voltage spikes to the motor.

Also provided are two diagnostic LEDs. The AC Drive is housed in a rugged U-frame chassis with an industry standard mounting footprint. A finger-safe cover provides protection against accidental contact with electrical components.

Dimensions approx. 4.3" x 3.9" x 2.5"

Agency approvals: UL, CE, CSA,

C-Tick Optional accessories include: SIVFR Signal Isolator, MSB Multi Speed Board, RFI Filters Class A & B, DLM Download Module,

Drive Linktm Programming Kit,

Modbus Communications Kit,

Dynamic Brake Module
