LENZE  |  SKU: EMN-016960

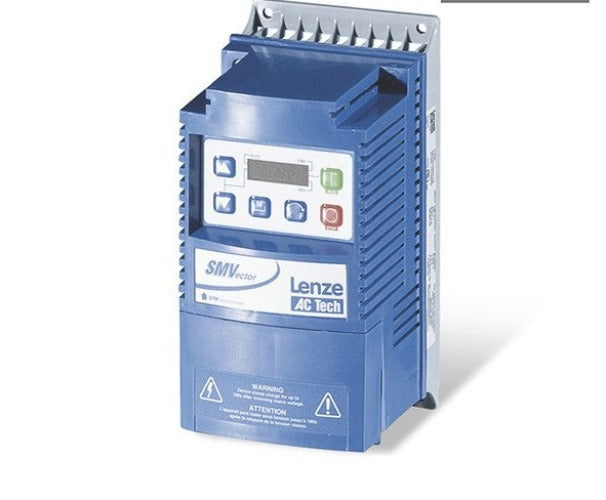

ESV752N02TXB, VFD, SMV, Drive 10 Hp, 240 Volts,3Ph, Nema1,174617.00,

$1,248.98
shipping

Estimate shipping

Description

ESV752N02TXB,  Lenze, ac Tech, VFD, SMV, REPLACE LEESON 174617.00,

PRODUCT DETAILS

  • SMV Series Vector Drive

  • NEMA 1

  • 240 Volts

  • 3 Phases Input

  • 10 hp Power Rating

  • 29.0 A Output Current

DESCRIPTION

  • The SMVector drive delivers unparalleled performance and simplicity. The SMVector drive is the right choice when you need it all – performance, power, packaging and intuitive programming.

APPLICATIONS

  • Food processing machinery
  • Packaging machinery
  • Material handling
  • Conveying systems
  • HVAC systems

FEATURES

  • NEW sequencer function
  • V/Hz through vector control
  • Up to 60 hp
  • NEMA® 1 and NEMA® 4X enclosures
  • Flexible power ranges
  • Industrial grade packaging
  • Intuitive user interface
  • Electronic programming module
  • Exceptional starting torque
  • Load: constant torque or variable torque
  • Dynamic speed regulation
  • Quick acceleration
  • Two-year warranty
  • Original Integrated EMC Filters are available on NEMA® 4X drives to meet CE regulations

SPECIFICATIONS

INPUT PHASE Three Phase
CONTROL SERIES SMV
INTEGRATED LINE DISCONNECT No
LOAD TYPE Constant Torque, Variable Torque
INSTALLED I/O & COMMUNICATION MODULE No Communications Installed / Standard Keypad
HORSEPOWER CONSTANT TORQUE 10 hp
EMC FILTER No
POWER RATING 10 hp
PHASE Three Phase
OUTPUT CURRENT CONTINUOUS AMPS 29 A
ENCLOSURE NEMA 1
INPUT VOLTAGE 240
INVERTER OR VECTOR DUTY Vector Duty
WEIGHT 7.4 LB
  • 10 Hp,
  • 240 Volts, Input/Output
  • 3 Phases,
  • Enclosure Nema1,
  • 29.0 amps O/P
  • Indoor Duty,
  • Dynamic Torque Response Two Independent Accel Ramps and two Independent Decel Ramps Linear, S-Type, Auxiliary Ramp-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency (1,000 Hz Optional)
  • Switching Frequency : 4, 6, 8, 10,12 or 16 kHz
  •  Universal Logic Assertion (Selectable): Positive or Negative Logic Input
  • Braking Functions : DC Injection Braking Optional Regenerative Braking Over Temperature Protection
  • Speed Commands : Keypad Potentiometer Jog Floating Point Control & 8 Preset Speeds Voltage: Scalable 0 - 10 VDC Current: Scalable 4 - 20 mA
  •  Process Control : PID Modes: Direct and Reverse Acting, sleep mode
  • Voltage Monitoring : High - Low DC Bus V Protection Low Line V Compensation
  • Current Monitoring : Motor Overload Protection Current Limiting Safeguard Phase Loss Protection Ground Fault Short Circuit Protection
  • Loss of Follower Management : Protective Fault Go to Preset Speed or Preset Setpoint Initiate System Notification
