MARATHON  |  SKU: EMN-018189

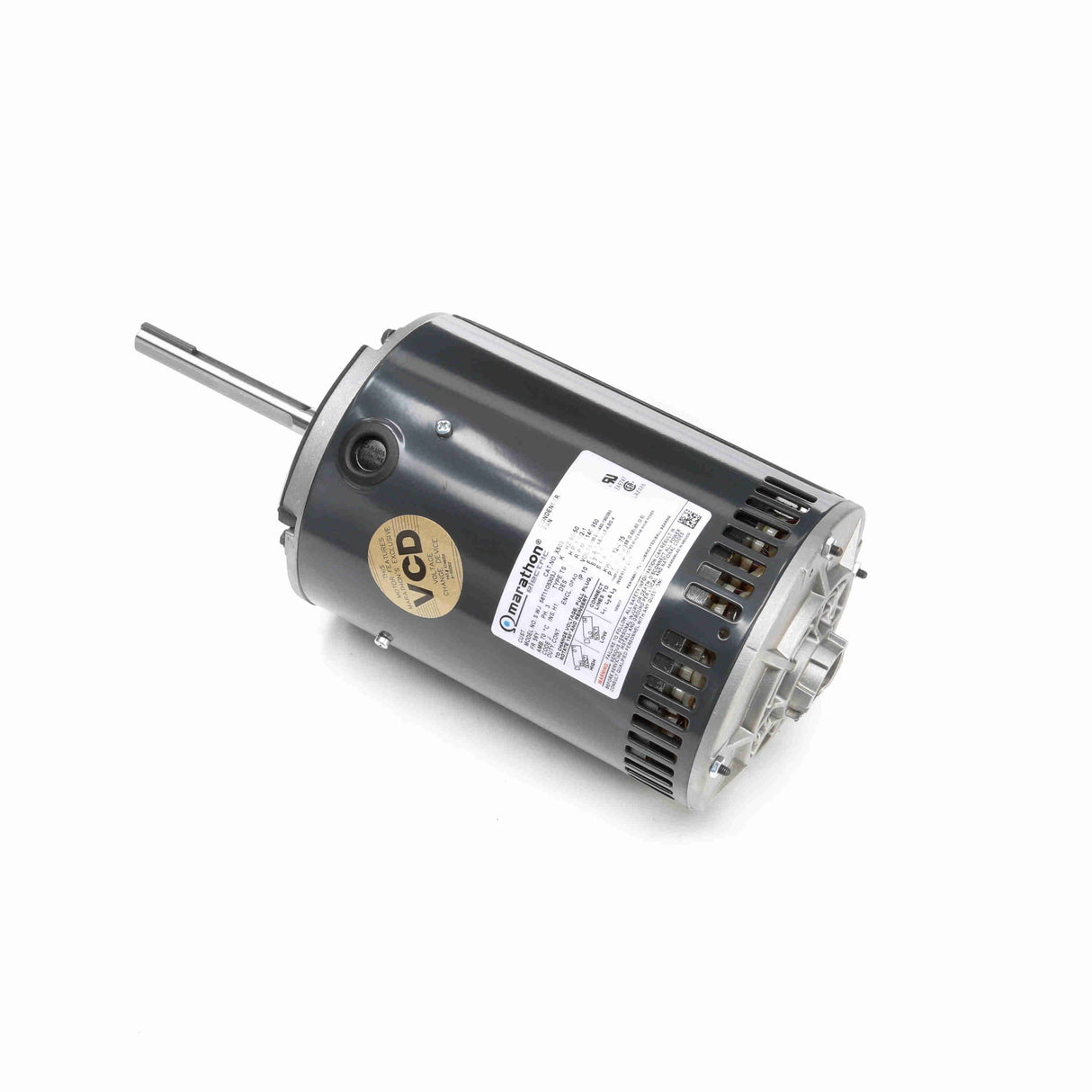

X503, Marathon, 1-1/2-1 Hp, 1140 & 950 Rpm, 200-230/460-190/380V, 56Y,

$699.90
shipping

Estimate shipping

Description

X503, 56T11O5303J , Marathon, replace with H767V1, 1819H

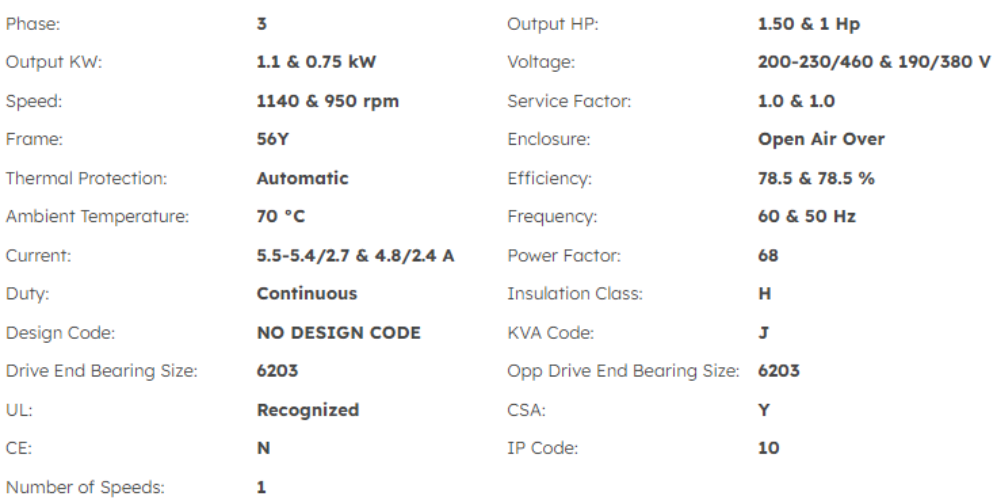

Nameplate Specifications Details
Phase 3
Output HP 1.50 & 1 HP
Output KW 1.1 & 0.75 kW
Voltage 200-230/460 & 190/380 V
Speed 1140 & 950 rpm
Service Factor 1.0 & 1.0
Frame 56Y
Enclosure Open Air Over
Thermal Protection Automatic
Efficiency 78.5 & 78.5 %
Ambient Temperature 70 °C
Frequency 60 & 50 Hz
Current 5.5-5.4/2.7 & 4.8/2.4 A
Power Factor 68
Duty Continuous
Insulation Class H
Design Code No Design Code
KVA Code J
Drive End Bearing Size 6203
Opp Drive End Bearing Size 6203
UL Recognized
CSA Y
CE N
IP Code 10
Number of Speeds 1
Technical Specifications Details
Electrical Type Squirrel Cage Induction Run
Starting Method Across The Line
Poles 6
Rotation Reversible
Resistance Main 3.2 Ohms
Mounting Round Belly Band
Motor Orientation Horizontal
Drive End Bearing Ball
Opp Drive End Bearing Ball
Frame Material Rolled Steel
Shaft Type Single Special Extension
Overall Length 16.06 in
Frame Length 8.56 in
Shaft Diameter 0.625 in
Shaft Extension 5.06 in
Assembly/Box Mounting F1 Only

  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
