CENTURY  |  SKU: EMN-017082

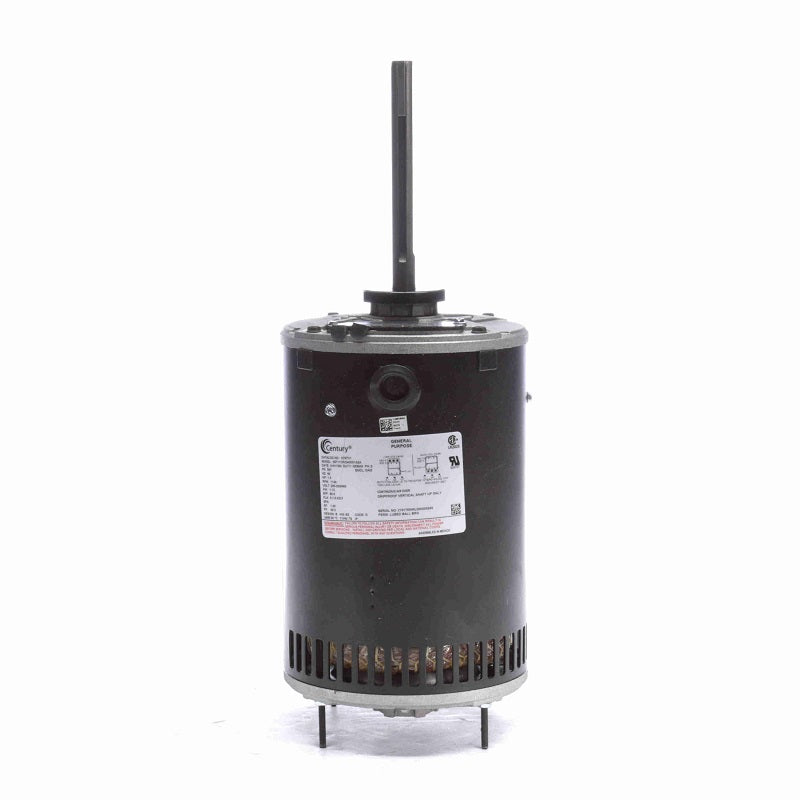

H767V1, Century, 1-1/2 Hp, 1140 Rpm, 200-230/460V, Fr:56Y, OPAO, Condenser,

$829.00
shipping

Estimate shipping

Description

H767V1, Century, Replace Marathon, X503, Model 056T11O15570, 056T11O5303, X503-P, Baldor 35K306Y797, CFM3166A,

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 200-230/460 V
Current: 5.1-5.0/2.5 A Speed: 1140 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56Y Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 60 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1



Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 17.02 in
Frame Length: 8.65 in Shaft Diameter: 0.625 in
Shaft Extension: 6.19 in
  • Automatic reset thermal protector prevents overheating.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
