FASCO | SKU:
EMN-017264

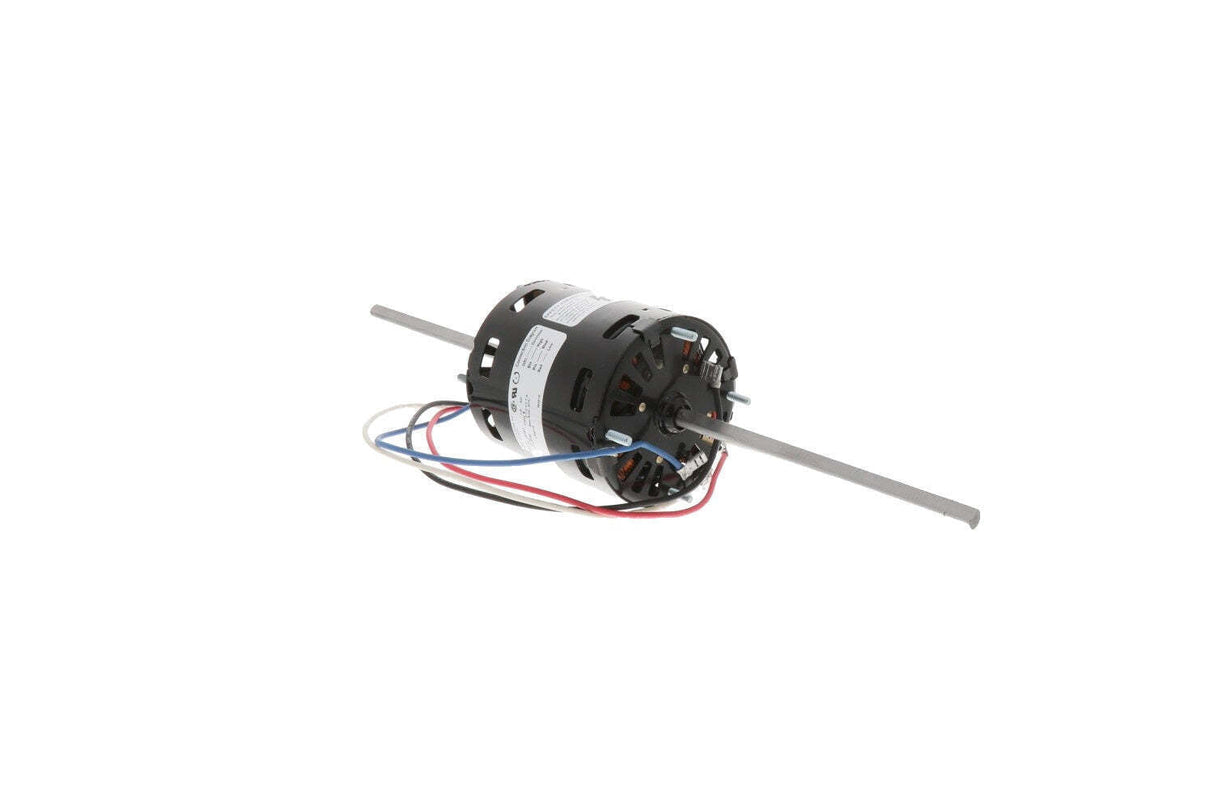

377 Century,1/10-1/15-1/30,1550/3 Spd, 120V,OAO, JA2S057N,D367 Fasco,
Regular price
$226.85
Unit price
/
Unavailable
377 Century,1/10-1/15-1/30,1550/3 Spd, 120V,OAO, JA2S057N,D367 Fasco, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
377 Century,1/10-1/15-1/30,1550/3 Spd, 120V,OAO, JA2S057N,D367 Fasco,
Regular price
$226.85
Unit price
/
Unavailable
Description
Description
377 Century, Obsolete replaced by D367, Fasco, 71636388, Century , Ao Smith 377, JA2S057N, 7163-6388,
- Window Air-Conditioning Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 17" Leads with Flag Terminals
- Extended Studs Lead and Opposite Lead End
General Specifications
| Model | 377 | Weight: | 5.00 LB |
| Packaged Length: | 17 IN | Packaged Width: | 3.38 IN |
| Packaged Height: | 3.38 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/10 - 1/15 - 1/30 Hp | Output KW: | 0.07 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 2.7-2.1-1.7 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 15.19 in |
| Frame Length: | 3.40 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 5.75 in |
