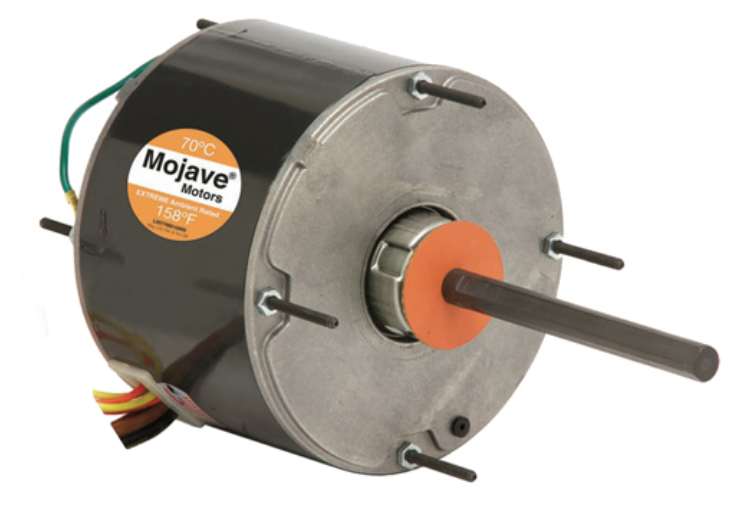

1862H, 1/2Hp, 1 PH, 60 HZ, 208-230 V, 1075 RPM, 1 SPEED, 48 FRAME, TEAO, 70C AMBIENT, CONDENSER FAN MOTOR, K055WEJ0626012B

1862H, 1/2Hp, 1 PH, 60 HZ, 208-230 V, 1075 RPM, 1 SPEED, 48 FRAME, TEAO, 70C AMBIENT, CONDENSER FAN MOTOR, K055WEJ0626012B

REPLACE A,O SMITH, CENTURY , FE1056SF, FSE1056SF, F48L10A50, Genteq 6617,100028830, MOTOR N1M429851,  M2-R32735 Rotom, Carrier HC44SL601A, 157 Century, 1862H,D7907 Fasco , FE1056SF,K055WEJ0626012B, EM3730, EM3730F,F48L10A50

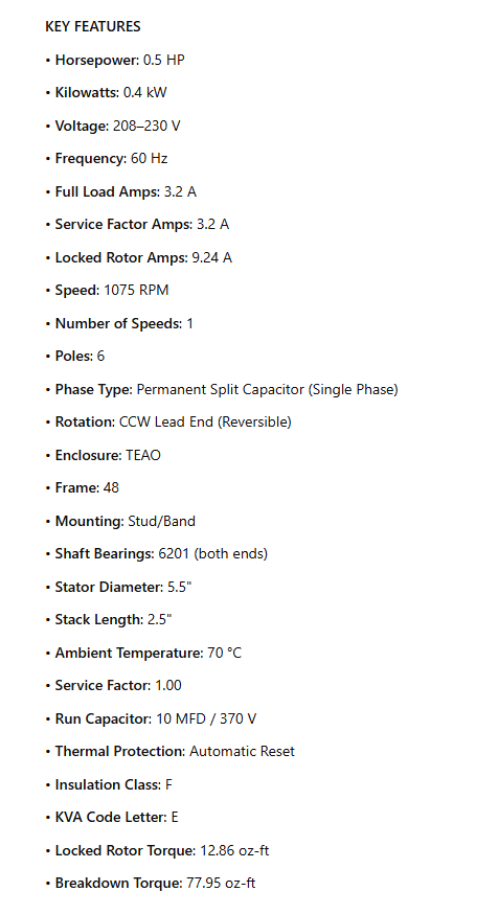

KEY FEATURES

• Horsepower: 0.5 HP

• Kilowatts: 0.4 kW

• Voltage: 208–230 V

• Frequency: 60 Hz

• Full Load Amps: 3.2 A

• Service Factor Amps: 3.2 A

• Locked Rotor Amps: 9.24 A

• Speed: 1075 RPM

• Number of Speeds: 1

• Poles: 6

• Phase Type: Permanent Split Capacitor (Single Phase)

• Rotation: CCW Lead End (Reversible)

• Enclosure: TEAO

• Frame: 48

• Mounting: Stud/Band

• Shaft Bearings: 6201 (both ends)

• Stator Diameter: 5.5"

• Stack Length: 2.5"

• Ambient Temperature: 70 °C

• Service Factor: 1.00

• Run Capacitor: 10 MFD / 370 V

• Thermal Protection: Automatic Reset

• Insulation Class: F

• KVA Code Letter: E

• Locked Rotor Torque: 12.86 oz-ft

• Breakdown Torque: 77.95 oz-ft
