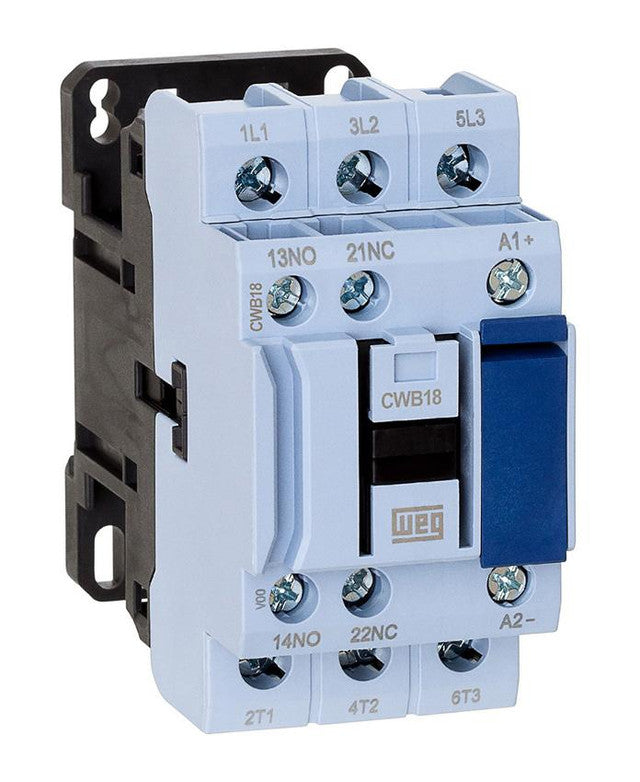

CWB18-11-30D45, EC Contactor, 18 Amp (18A), 1NO/1NC Auxiliary Contacts, 3NO, 600VAC, 50/60Hz, Screw Terminal, UL508

CWB18-11-30D45, EC Contactor, 18 Amp (18A), 1NO/1NC Auxiliary Contacts, 3NO, 600VAC, 50/60Hz, Screw Terminal, UL508

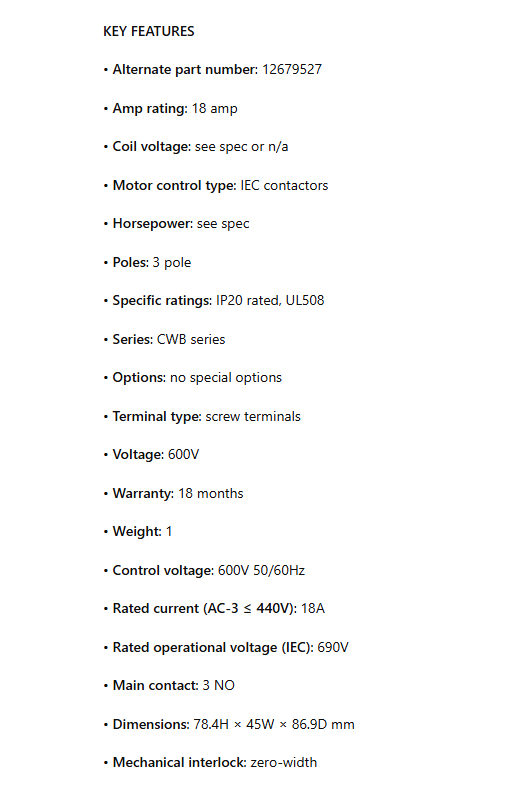

KEY FEATURES

• Alternate part number: 12679527

• Amp rating: 18 amp

• Coil voltage: see spec or n/a

• Motor control type: IEC contactors

• Horsepower: see spec

• Poles: 3 pole

• Specific ratings: IP20 rated, UL508

• Series: CWB series

• Options: no special options

• Terminal type: screw terminals

• Voltage: 600V

• Warranty: 18 months

• Weight: 1

• Control voltage: 600V 50/60Hz

• Rated current (AC-3 ≤ 440V): 18A

• Rated operational voltage (IEC): 690V

• Main contact: 3 NO

• Dimensions: 78.4H × 45W × 86.9D mm

• Mechanical interlock: zero-width
